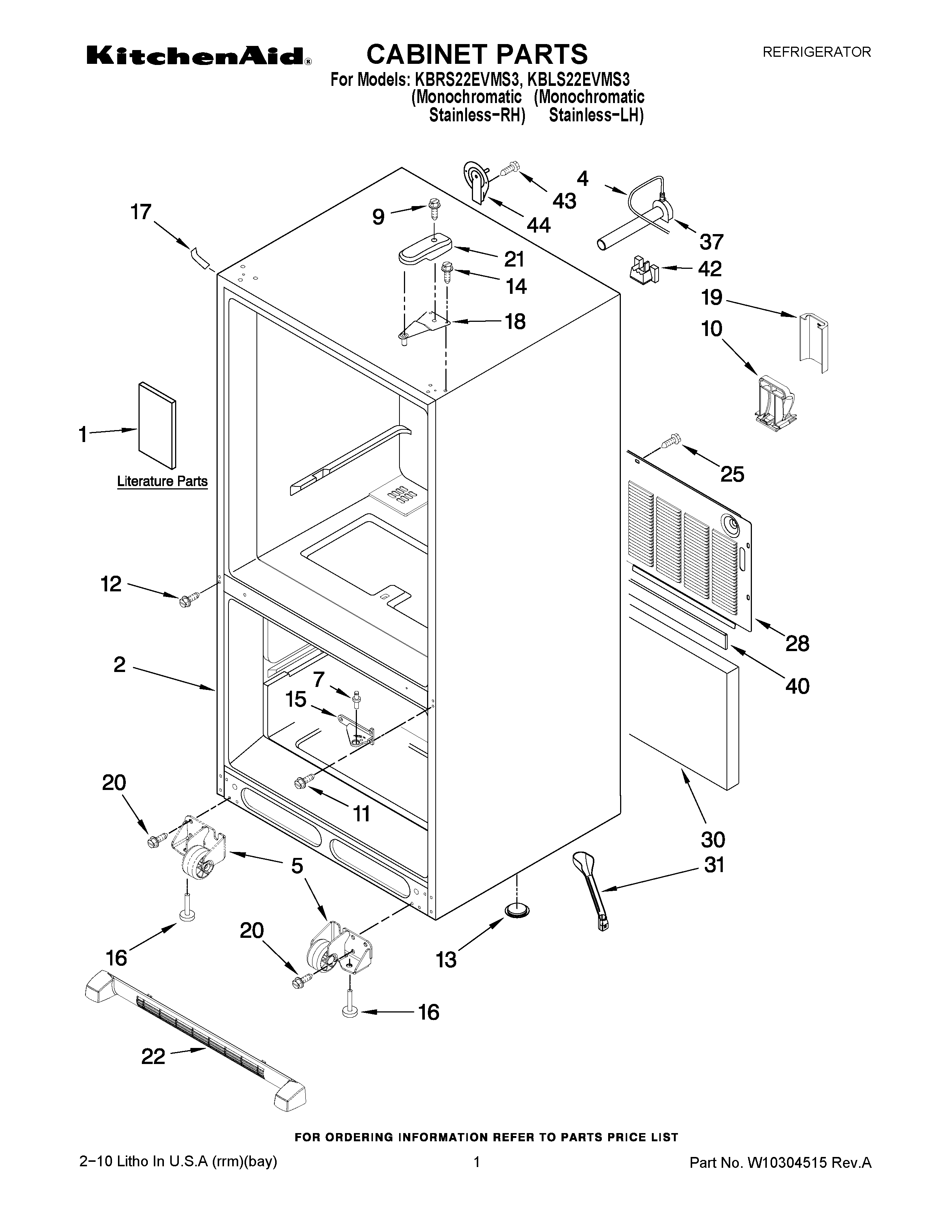

KBLS22EVMS3 01 – CABINET PARTS

KBLS22EVMS3 01 – CABINET PARTS

Written by

in

KBLS22EVMS3 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Energy Guide
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
4W11120581 Whirlpool Refrigerator Water Tube
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
7WP67006642 Whirlpool Refrigerator Pin
1012831101 Whirlpool Refrigerator Tube Clamp
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
16WPW10141622 Whirlpool Leveler
17WP12587703AP Whirlpool Refrigerator Filler
18WP12566606ED Whirlpool Refrigerator Door Hinge
19W10208593 Whirlpool Refrigerator Valve Cover
2067006564 Whirlpool Refrigerator Screw
21W11106366 Whirlpool Refrigerator Door Hinge
22WPW10534160 Whirlpool Refrigerator Front Grille
2567006425 Whirlpool Refrigerator Screw
28W10210980 Whirlpool Refrigerator Back Cover
30INSULATION, SOUND
31W10619951 Whirlpool Drain Tube with Grommet
37W11176463 Whirlpool Refrigerator Water Tube
40B5759655 Whirlpool Refrigerator Gasket
42WP12777701 Whirlpool Refrigerator Filler Block
43WP98165 Whirlpool Screw
4412726003 Whirlpool Refrigerator Water Cover
