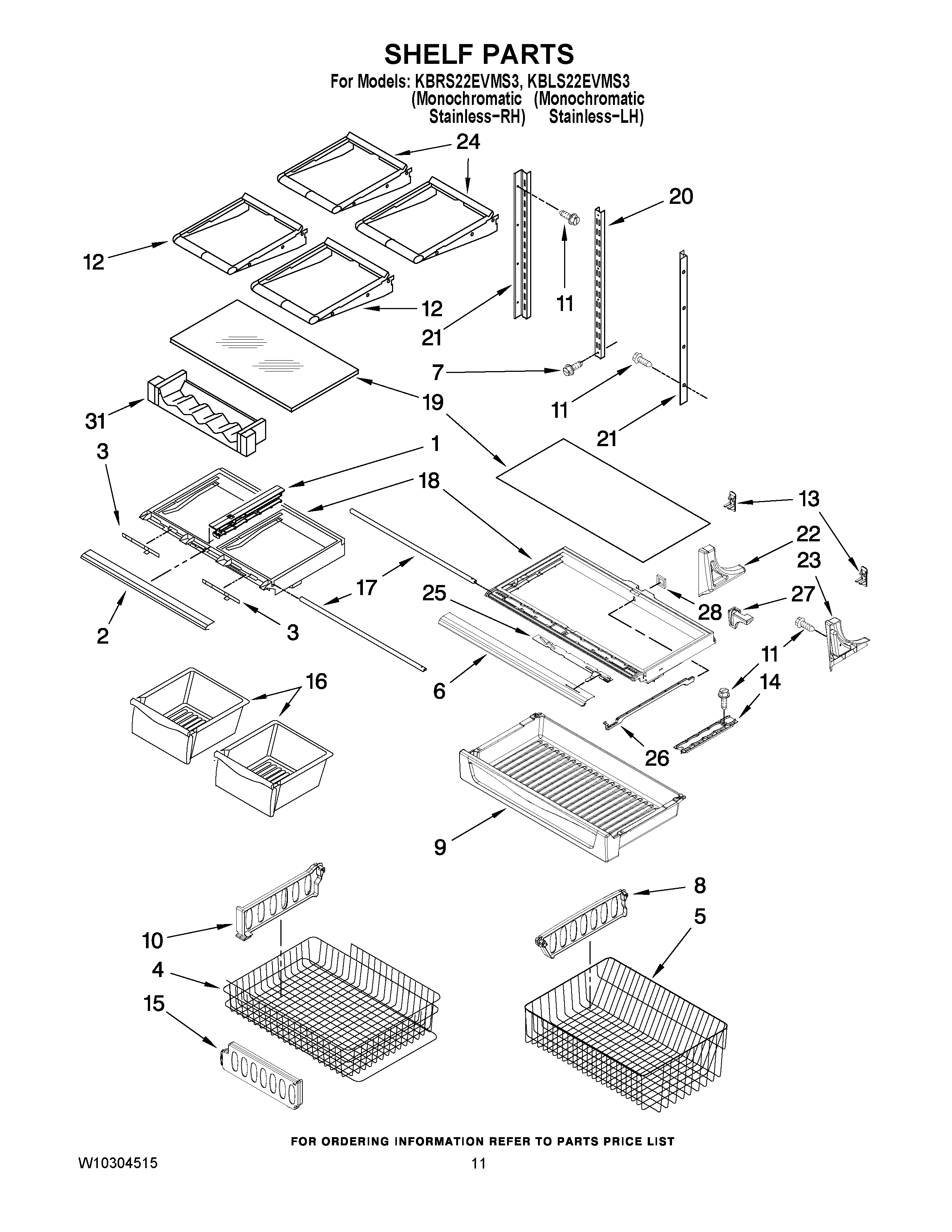

KBLS22EVMS3 06 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	W10231483 Whirlpool Refrigerator Trim Shelf
3	SLIDE
4	Basket, Freezer (Upper)
5	WPW10503183 Whirlpool Freezer Basket
6	W10656985 Whirlpool Refrigerator Trim
7	W10709795 Whirlpool Refrigerator Screw
8	Divider, Basket (Lower)
9	PAN, PANTRY
10	W10241046 Whirlpool Refrigerator Divider
11	67006425 Whirlpool Refrigerator Screw
12	W11402523 Whirlpool Refrigerator Glass Shelf
13	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
14	WP67001719 Whirlpool Refrigerator Track
15	W10311695 Whirlpool Refrigerator Divider
16	WP67002633 Whirlpool Crisper Pan
17	WP12227303WD Whirlpool Refrigerator Crisper Brace
18	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19	WP67006878 Whirlpool Refrigerator Crisper Glass
20	W10273463 Whirlpool Refrigerator Ladder
21	W10251969 Whirlpool Refrigerator Ladder
22	WP67001721 Whirlpool Refrigerator Support
23	WP67001722 Whirlpool Refrigerator Support
24	W11402521 Whirlpool Refrigerator Glass Shelf
25	67002002 Whirlpool Refrigerator Pantry Slide
26	BAR, CONTROL
27	WP12531601 Whirlpool Refrigerator Tunnel
28	GASKET, PANTRY
31	WP67005626 Whirlpool Refrigerator Can Caddy
