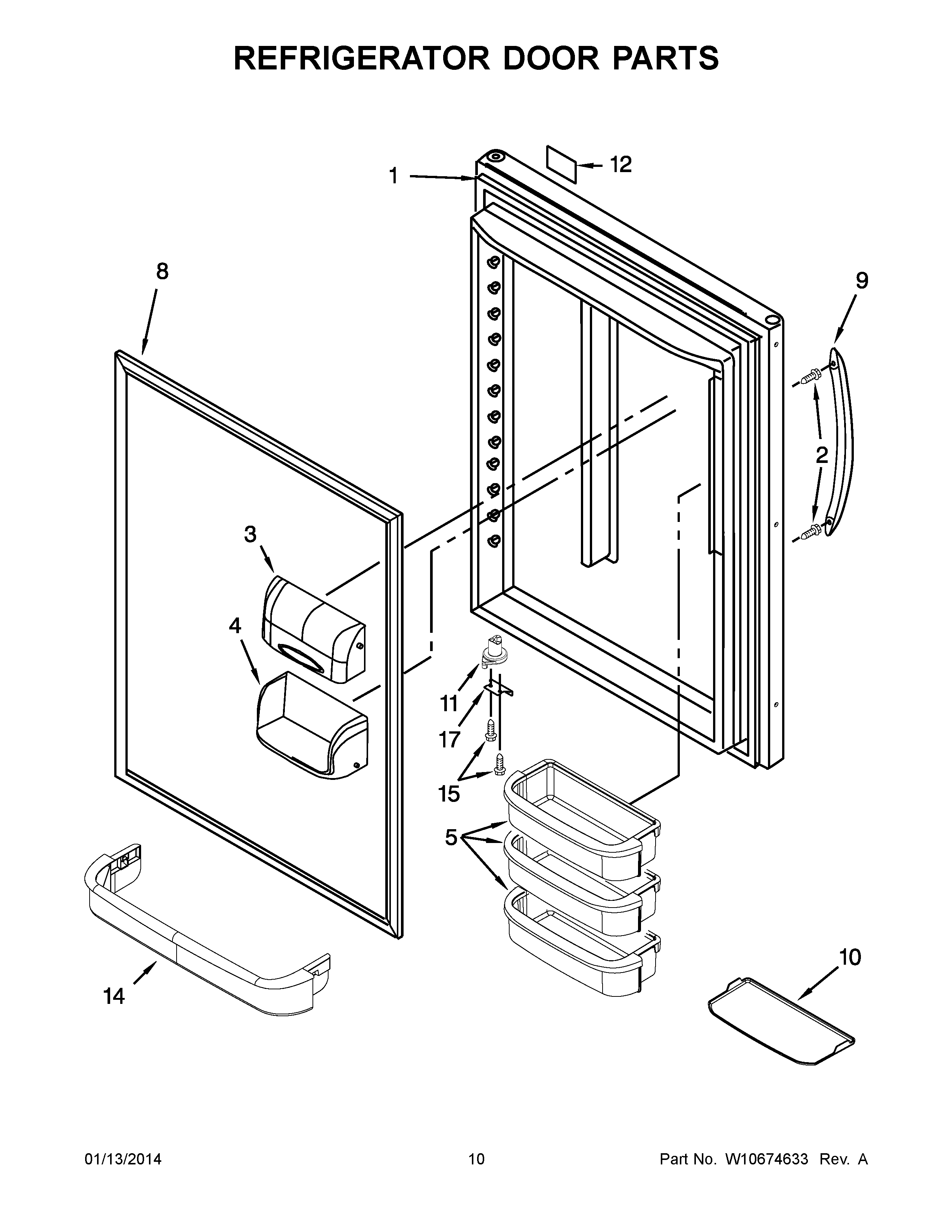

KBLS22KCMS00 06 – REFRIGERATOR DOOR PARTS

KBLS22KCMS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KBLS22KCMS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107546SQ Whirlpool Refrigerator FIP Stainless Steel Door
113107544SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
8W10443314 Whirlpool Refrigerator FIP Gasket
9WPW10586526 Whirlpool Refrigerator Handle
10WPW10450021 Whirlpool Refrigerator Mat
11WP12028505AP Whirlpool Closing Cam
12WPW10243391 Whirlpool Refrigerator Nameplate
1467001019 Whirlpool Door Shelf Trim
15WP98165 Whirlpool Screw
17W11401472 Whirlpool Refrigerator Door Stop
