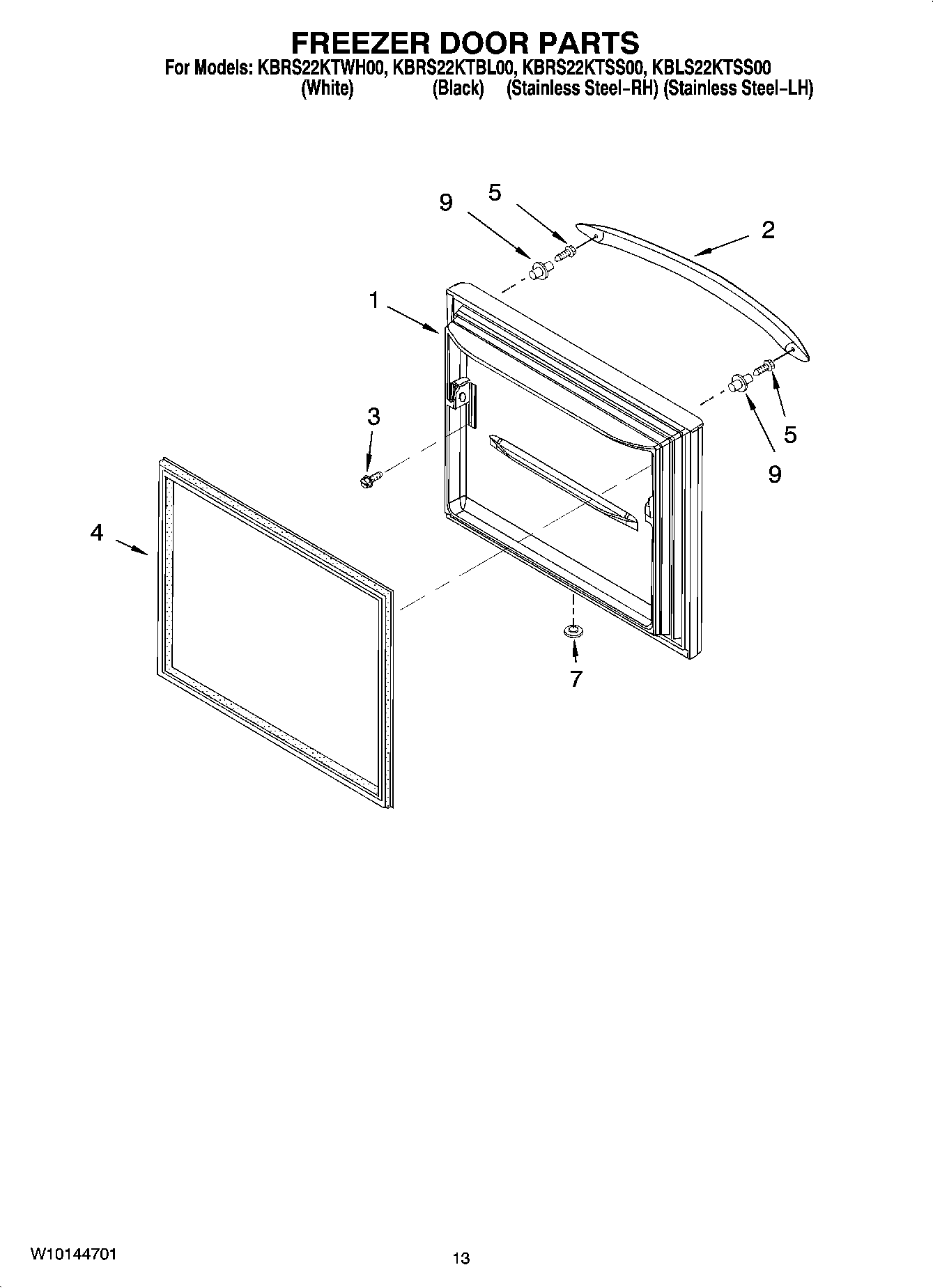

KBLS22KTSS00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 799833
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
ACCESSORIES
CLEANER, (STAINLESS STEEL)
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
Miscellaneous
TORX SCREW WRENCH
FIELD INSTALLABLE ICE MAKER
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
833938 Whirlpool Refrigerator Terminal
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
799344 Whirlpool Refrigerator Paint
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
72017 Whirlpool Appliance Touch-Up Paint White
TAPE, VINYL (3/4 X 108“)
1Freezer Door (w/ Insulation) (Stainless Steel)
1Freezer Door (w/ Insulation) (White)
1Freezer Door (w/ Insulation) (Black)
2Handle, Door (Stainless Steel)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
312991101 Whirlpool Refrigerator Screw
4W10443315 Whirlpool Door Gasket
4WPW10436250 Whirlpool Refrigerator Freezer Door
5WP3387230 Whirlpool Screw
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
9Stud, Handle
