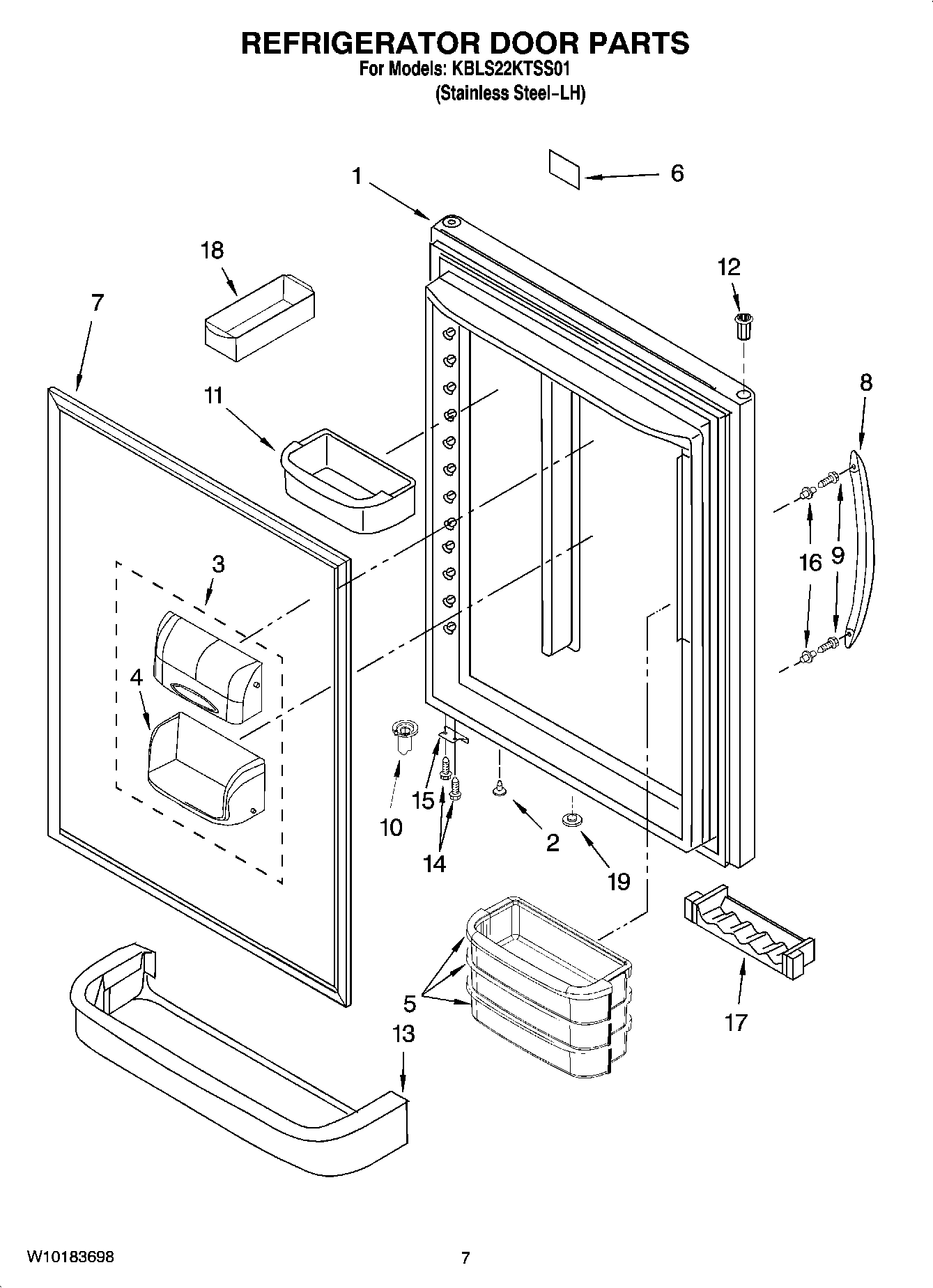

KBLS22KTSS01 04 – REFRIGERATOR DOOR PARTS

KBLS22KTSS01 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBLS22KTSS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (w/ Insulation) (Stainless Steel-LH)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
6Nameplate (Grey)
7WPW10436248 Whirlpool Door Gasket
8Handle, Door (Stainless Steel)
9WP3387230 Whirlpool Screw
10WP67003639 Whirlpool Refrigerator Closer
11Shelf Bin (Medium)
1267004978 Whirlpool Refrigerator Black Door Bushing
13Retainer, Door
14WP98165 Whirlpool Screw
15W11708403 Whirlpool Door Stop
16WP67006113 Whirlpool Stud Bolt
17WP67005626 Whirlpool Refrigerator Can Caddy
18W10136387A Whirlpool Refrigerator Egg Container
1967004838 Whirlpool Refrigerator Button Vent Plug
