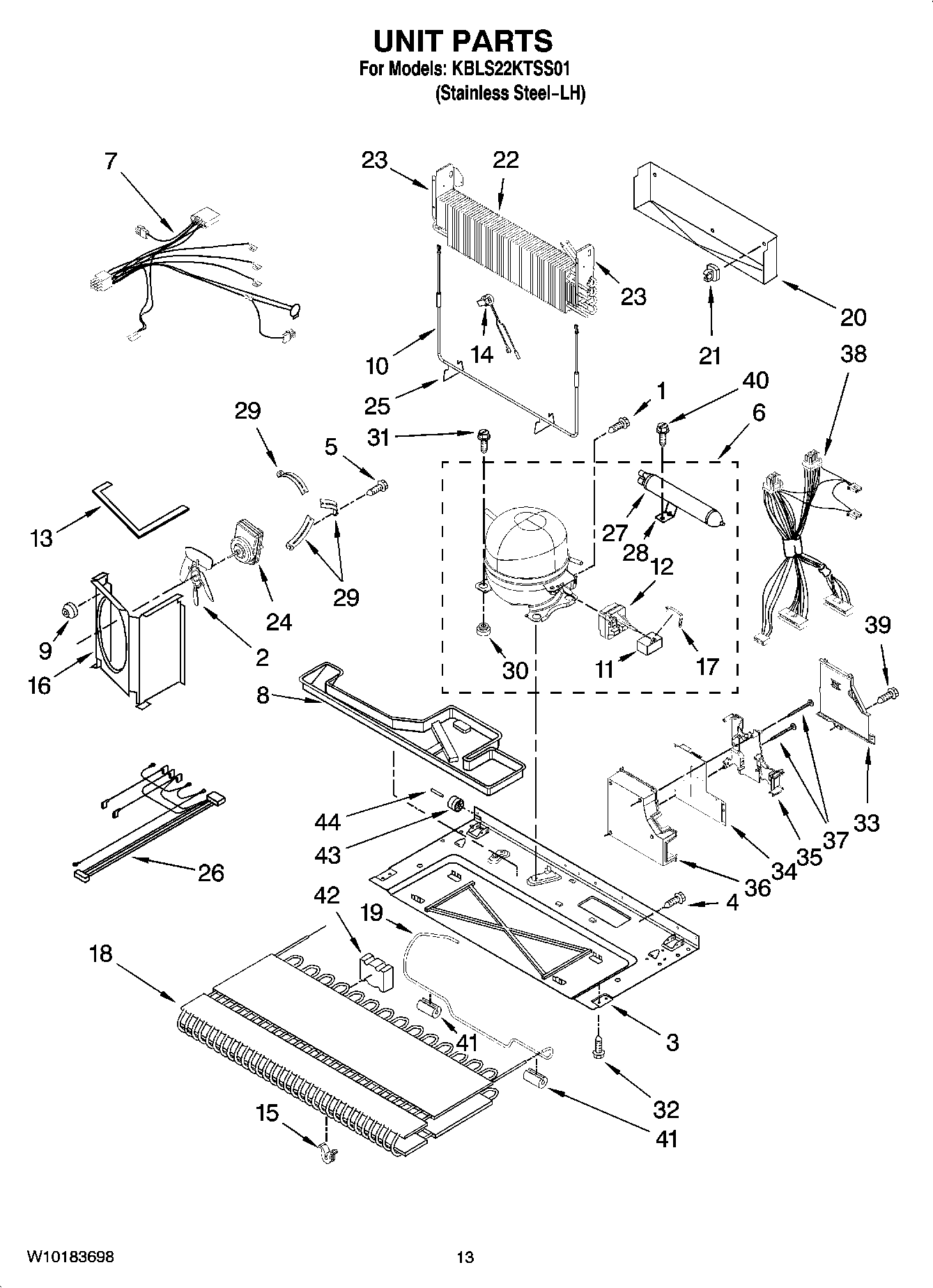

KBLS22KTSS01 07 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

KBLS22KTSS01 07 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KBLS22KTSS01 07 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
VALVE, ACCESS (1/2“)
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL ARI78914A4
WPL ARI78913A9
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI78912A2
WPL ARI78911A9
WPL ARI78910A7
WPL ARI78916A7
CLEANER, (STAINLESS STEEL)
WP978025 Whirlpool Refrigerator Valve
Torx Key
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
VALVE, ACCESS (5/8“)
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
876764 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
978027 Whirlpool Refrigerator Primary Valve
WP505587 Whirlpool Refrigerator Sealer
WPL ARI78915A5
WP542638 Whirlpool Refrigerator Grease
978030 Whirlpool Refrigerator Valve
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
7W10119857 Whirlpool Wire Harness
8Drain Pan
9Grommet (3)
10WP67001794 Whirlpool Refrigerator Defrost Heater
11WPW10662129 Whirlpool Refrigerator Run Capacitor
12WPW10197426 Whirlpool Refrigerator Start Device
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WPW10137529 Whirlpool Refrigerator Grommet
16Shroud, Condenser
17W10136415 Whirlpool Clip
18WP67006132 Whirlpool Refrigerator Condenser
19Discharge Tube
20WPW10292802 Whirlpool Refrigerator Drip Tray
21CLIP, EVAP (2)
2212001919 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Left Side)
23Dam (Right Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit Includes Cord
27WPB2150504 Whirlpool Refrigerator Dryer
2810547003 Whirlpool Refrigerator Dryer Clip
29WP67004953 Whirlpool Refrigerator Bracket
30WPW10169124 Whirlpool Refrigerator Grommet
3112846902 Whirlpool Refrigerator Screw
32Screw (4)
3367005421 Whirlpool Hoist Cover
34Board, HV Control (Inc. Inst. Sheet)
35Spacer, Box- High Voltage
36Control Box, High Voltage
37Screw (2)
38Harness, HV Board
39W10709801 Whirlpool Refrigerator Screw
40WP33001882 Whirlpool Screw
4167005680 Whirlpool Refrigerator Condenser Grommet
42Block, Condenser
43WP67005149 Whirlpool Roller
4467006434 Whirlpool Axle Pin
