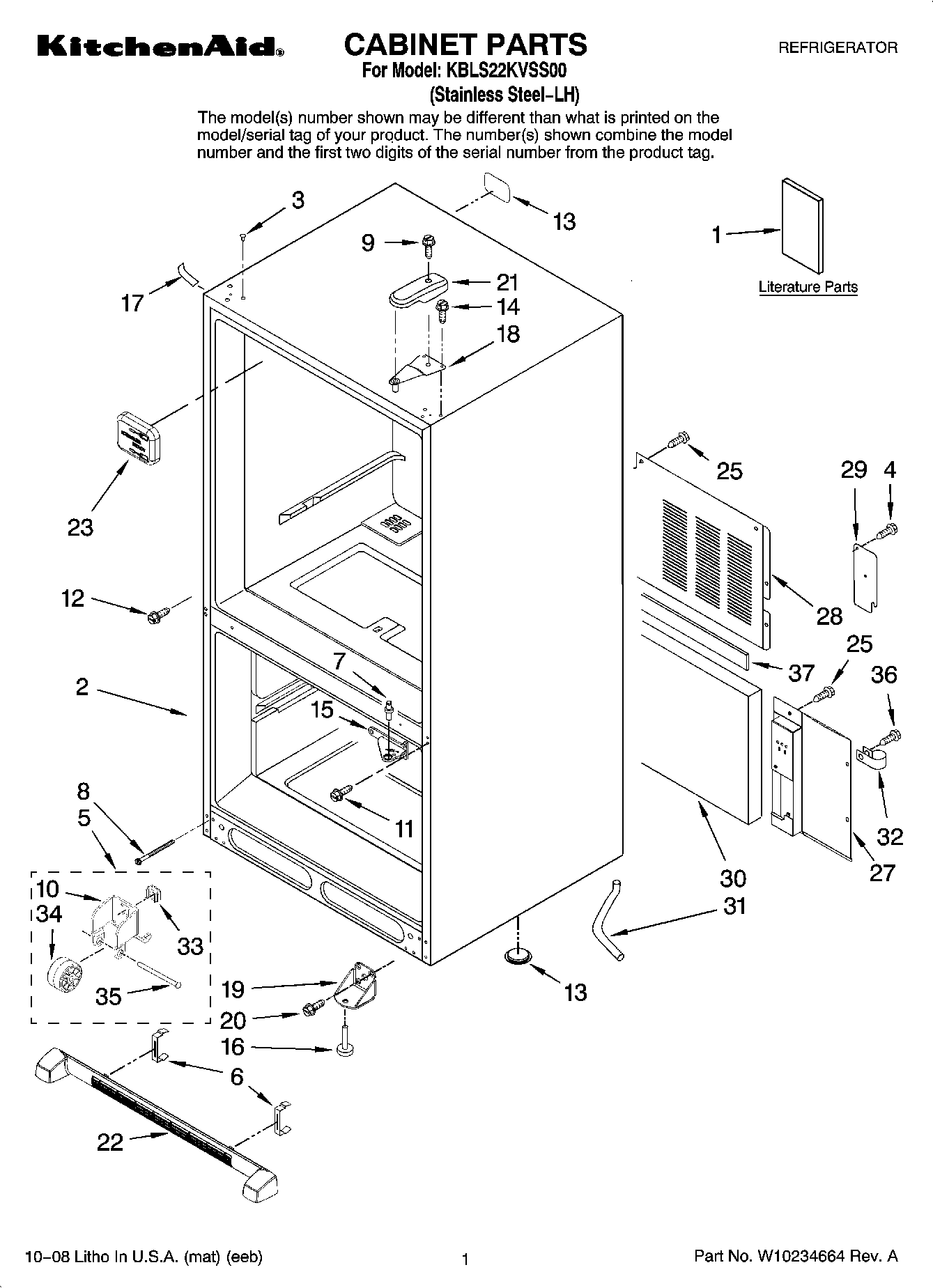

KBLS22KVSS00 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Energy Guide
1	Use & Care Guide
2	Cabinet, (Not A Serviceable Part)
3	WP12246608 Whirlpool Refrigerator Button
4	WP489128 Whirlpool Refrigerator Screw
5	Roller Foot Assembly
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
13	Label, Fill Tube
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Bracket, Foot (2)
20	WP98165 Whirlpool Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22	WPW10534162 Whirlpool Refrigerator Front Grille
23	WP67001098 Whirlpool Refrigerator Tube Cover
25	67006425 Whirlpool Refrigerator Screw
27	Cover, Water Valve
28	Cover, Unit
29	Plate, Cover
30	67003796 Whirlpool Refrigerator Fiber Acoustic
31	W10164397 Whirlpool Refrigerator Drain Tube
32	Clip, Drain Tube
33	M0286708 Whirlpool Refrigerator Holder Nut Assembly
34	WP10450603 Whirlpool Refrigerator Roller
35	Pin
36	WP33001882 Whirlpool Screw
37	Gasket
