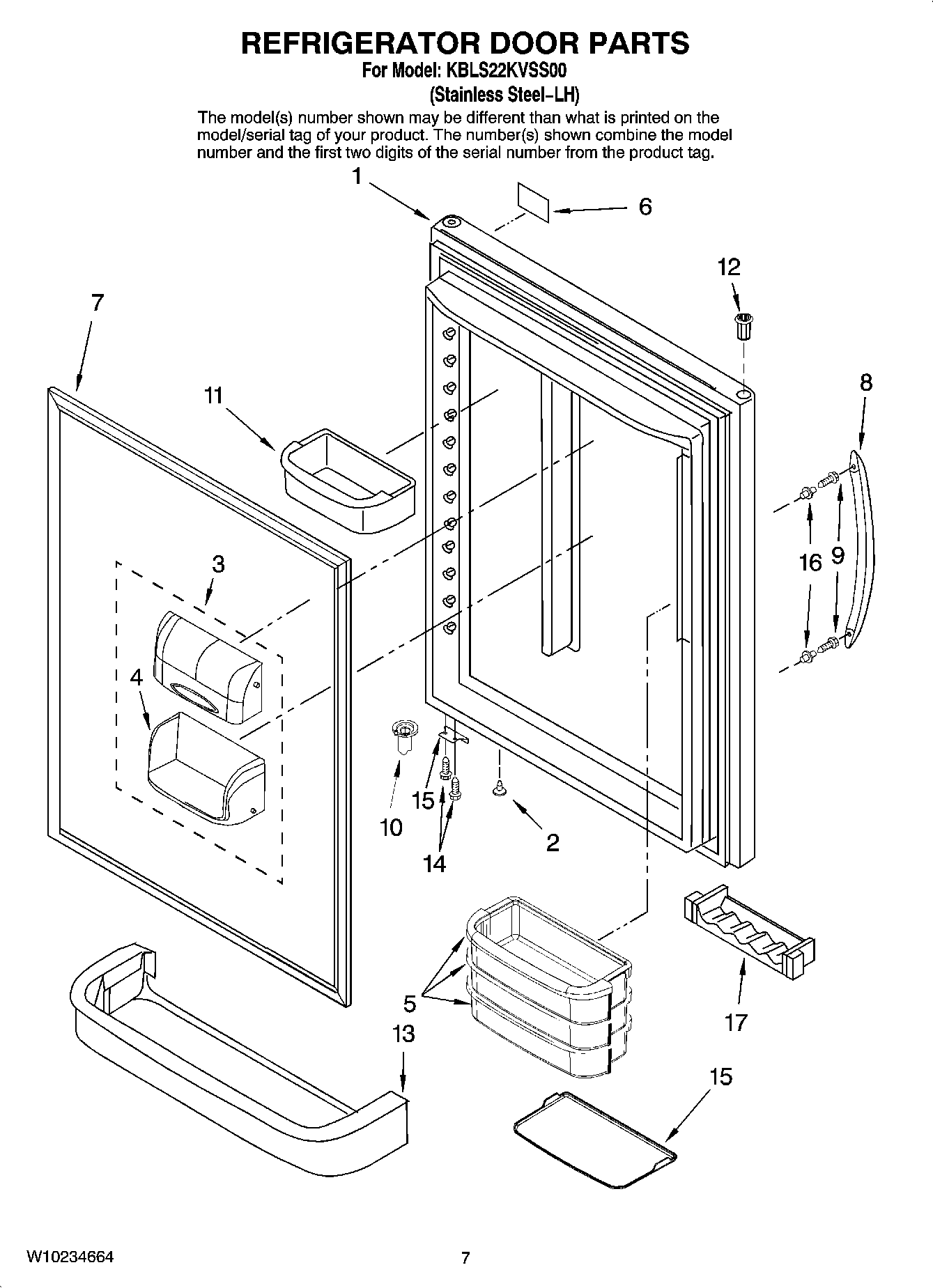

KBLS22KVSS00 04 – REFRIGERATOR DOOR PARTS

KBLS22KVSS00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBLS22KVSS00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS-LH)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
6NAMEPLATE
7WPW10436248 Whirlpool Door Gasket
8WPW10314517K Whirlpool Refrigerator Handle
10WP67003639 Whirlpool Refrigerator Closer
11Bucket, Short
1267004978 Whirlpool Refrigerator Black Door Bushing
13Retainer, Door
14WP98165 Whirlpool Screw
15WPW10450021 Whirlpool Refrigerator Mat
16WP67006113 Whirlpool Stud Bolt
17WP67005626 Whirlpool Refrigerator Can Caddy
