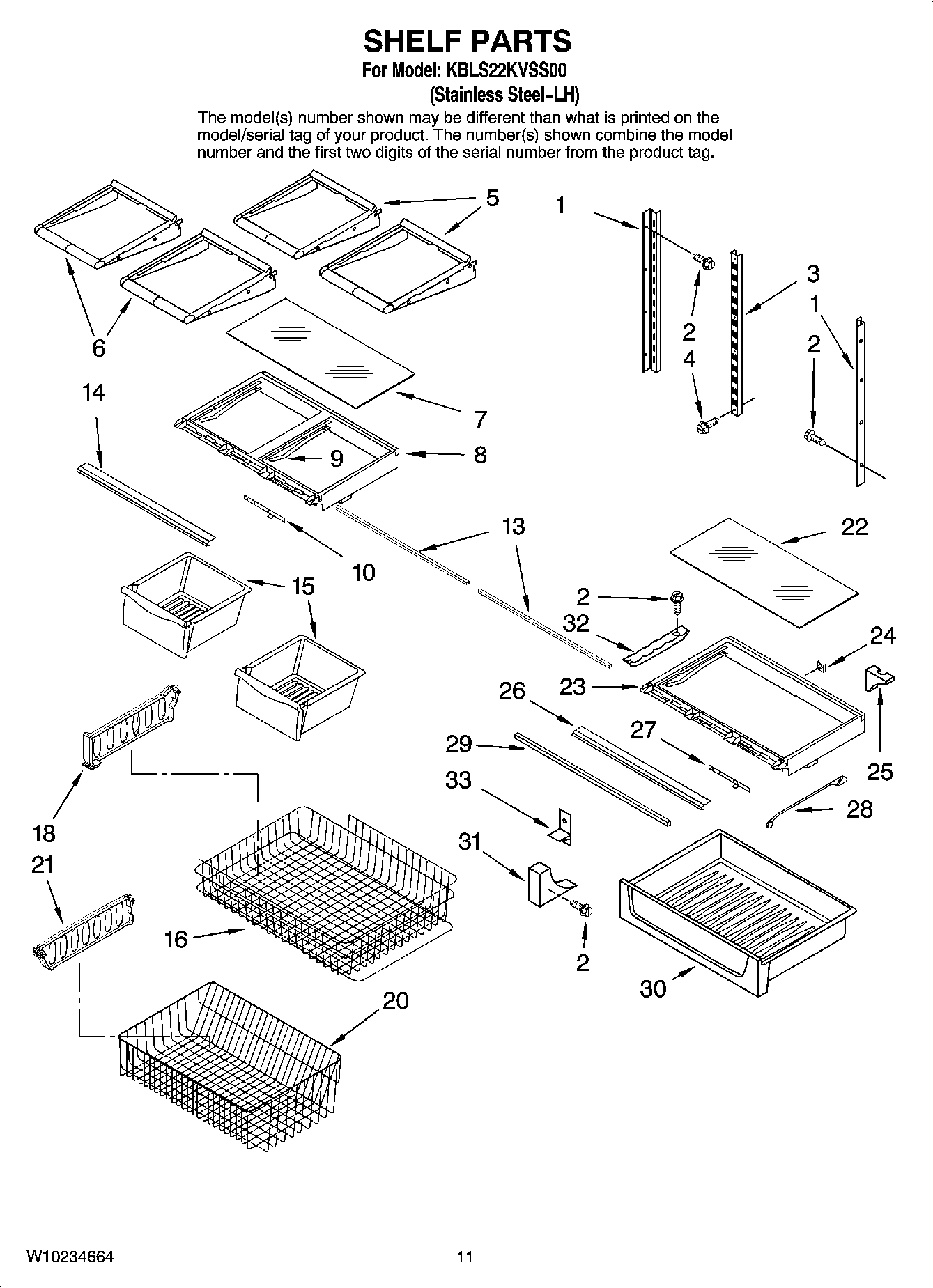

KBLS22KVSS00 06 – SHELF PARTS

KBLS22KVSS00 06 – SHELF PARTS

Written by

in

KBLS22KVSS00 06 – SHELF PARTS

Products

PositionProduct
1Ladder, Side
267006425 Whirlpool Refrigerator Screw
367001073 Whirlpool Refrigerator Center Ladder
4W10709795 Whirlpool Refrigerator Screw
5W11402523 Whirlpool Refrigerator Glass Shelf
6W11402521 Whirlpool Refrigerator Glass Shelf
9RAIL-CENTR CRISPER
10SLIDE
14W10231483 Whirlpool Refrigerator Trim Shelf
15Pan, Crisper (2)
16Basket, Freezer (Upper)
18Divider, Upper Basket
20WPW10503183 Whirlpool Freezer Basket
21Divider, Basket (Lower)
22WP67006878 Whirlpool Refrigerator Crisper Glass
23WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
24Gasket, Pantry
25WP12531601 Whirlpool Refrigerator Tunnel
26W10656985 Whirlpool Refrigerator Trim
2767002002 Whirlpool Refrigerator Pantry Slide
28Rod, Temperature Control
29WP12227303WD Whirlpool Refrigerator Crisper Brace
30Drawer, Pantry
31WP67001722 Whirlpool Refrigerator Support
31WP67001721 Whirlpool Refrigerator Support
32WP67001719 Whirlpool Refrigerator Track
33WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
