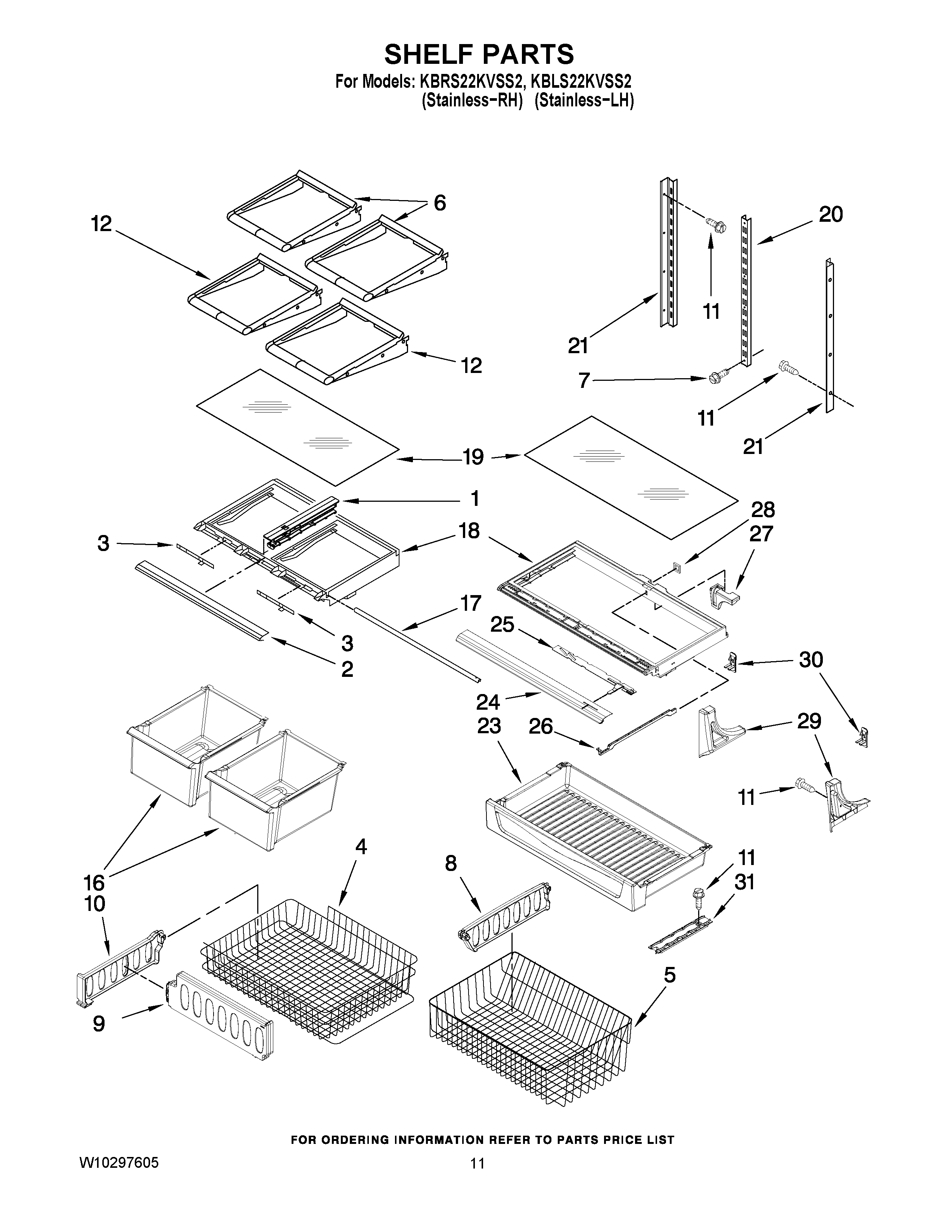

KBLS22KVSS2 07 – SHELF PARTS

KBLS22KVSS2 07 – SHELF PARTS

Written by

in

KBLS22KVSS2 07 – SHELF PARTS

Products

PositionProduct
1RAIL-CENTR CRISPER
2W10231483 Whirlpool Refrigerator Trim Shelf
3SLIDE
4Basket, Freezer (Upper)
5WPW10503183 Whirlpool Freezer Basket
6W11402521 Whirlpool Refrigerator Glass Shelf
7W10709795 Whirlpool Refrigerator Screw
8Divider, Basket (Lower)
9W10311695 Whirlpool Refrigerator Divider
10W10241046 Whirlpool Refrigerator Divider
1167006425 Whirlpool Refrigerator Screw
12W11402523 Whirlpool Refrigerator Glass Shelf
16WP67002633 Whirlpool Crisper Pan
17WP12227303WD Whirlpool Refrigerator Crisper Brace
18WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19WP67006878 Whirlpool Refrigerator Crisper Glass
20W10273463 Whirlpool Refrigerator Ladder
21W10251969 Whirlpool Refrigerator Ladder
23PAN, PANTRY
24W10656985 Whirlpool Refrigerator Trim
2567002002 Whirlpool Refrigerator Pantry Slide
26BAR, CONTROL
27WP12531601 Whirlpool Refrigerator Tunnel
28GASKET, PANTRY
29WP67001722 Whirlpool Refrigerator Support
29WP67001721 Whirlpool Refrigerator Support
30WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
31WP67001719 Whirlpool Refrigerator Track
