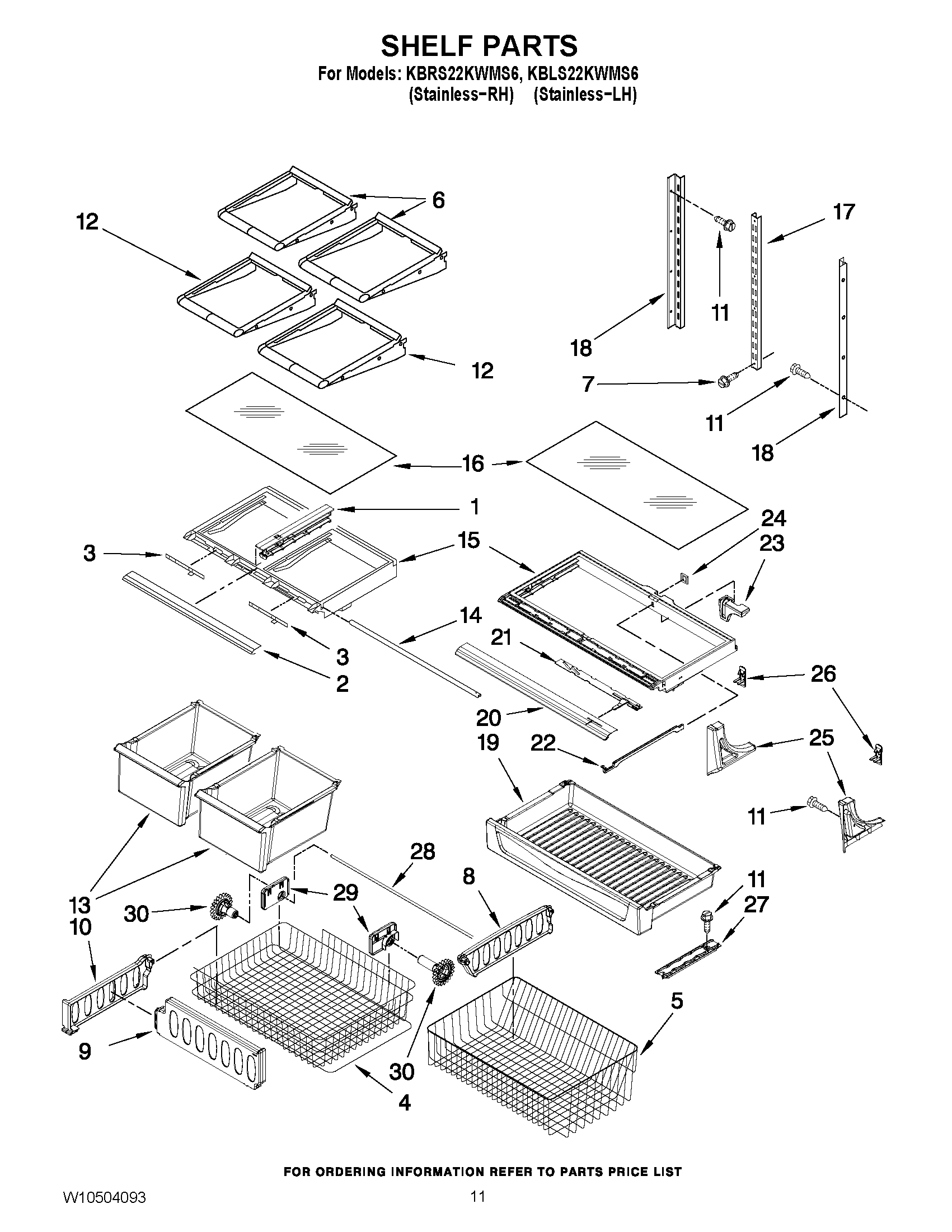

KBLS22KWMS6 07 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	W10231483 Whirlpool Refrigerator Trim Shelf
3	SLIDE
4	W10348238 Whirlpool Refrigerator Freezer Basket
5	WPW10503183 Whirlpool Freezer Basket
6	W11402521 Whirlpool Refrigerator Glass Shelf
7	W10215666 Whirlpool Refrigerator Screw
8	W10847995 Whirlpool Divider Assembly
9	W10311695 Whirlpool Refrigerator Divider
10	W10241046 Whirlpool Refrigerator Divider
11	67006425 Whirlpool Refrigerator Screw
12	W11402523 Whirlpool Refrigerator Glass Shelf
13	WP67002633 Whirlpool Crisper Pan
14	WP12227303WD Whirlpool Refrigerator Crisper Brace
15	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
16	WP67006878 Whirlpool Refrigerator Crisper Glass
17	W10273463 Whirlpool Refrigerator Ladder
18	W10251969 Whirlpool Refrigerator Ladder
19	PAN, PANTRY
20	W10656985 Whirlpool Refrigerator Trim
21	SLIDE, PANTRY
22	BAR, PANTRY
23	WP12531601 Whirlpool Refrigerator Tunnel
24	GASKET, PANTRY
25	WP67001722 Whirlpool Refrigerator Support
25	WP67001721 Whirlpool Refrigerator Support
26	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
27	WP67001719 Whirlpool Refrigerator Track
28	W10802339 Whirlpool Refrigerator Shaft
29	W10348260 Whirlpool Refrigerator Bracket
29	W10348259 Whirlpool Refrigerator Bracket Assembly
30	WPW10474716 Whirlpool Refrigerator Gear
30	WPW10474715 Whirlpool Refrigerator Gear
