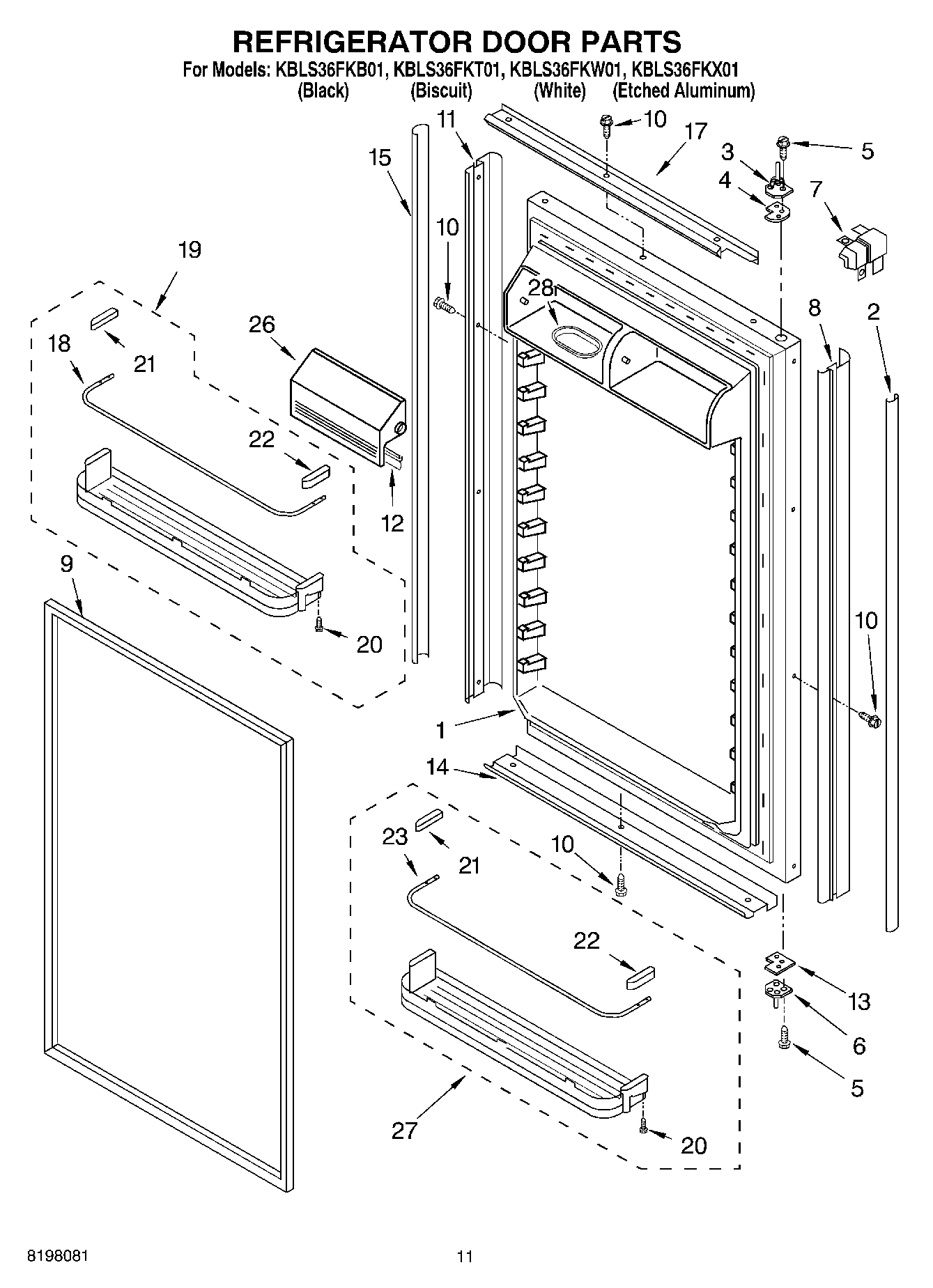

KBLS36FKB01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Trim Cover, Handle (Etched Aluminum)
2	Trim Cover, Handle (Black)
2	Cover-Trim, Handle (White)
2	Cover-Trim, Handle (Biscuit)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	2207457 Whirlpool Refrigerator Door Trim
7	Corner Trim (Biscuit)
7	Corner Trim (White)
7	Corner Trim (Black)
8	Trim-Door, Side (White)
8	Door Trim, Side (Black)
8	Door Trim, Side (Etched Aluminum)
8	Trim-Door, Side (Biscuit)
9	Door Gasket, Magnetic
10	Screw 8-15 x 1/2 (Biscuit)
10	Screw 8-15 x 1/2 (White)
10	W10851443 Whirlpool Refrigerator Screw
10	WP8281250 Whirlpool Refrigerator Screw
11	Handle, Door (Black)
11	Handle, Door (Etched Aluminum)
11	Handle, Door (Biscuit)
11	Handle, Door (White)
12	Gasket (2)
13	Spacer-Hinge, Bottom
14	Door Trim, Bottom (Etched Aluminum)
14	Trim-Door, Bottom (White)
14	Trim-Door, Bottom (Biscuit)
14	Door Trim, Bottom (Black)
15	Cover-Trim, Side (White)
15	Cover-Trim, Side (Biscuit)
15	Trim Cover, Side (Etched Aluminum)
15	Trim Cover, Side (Black)
17	Trim-Door, Top (Biscuit)
17	Trim-Door, Top (White)
17	Door Trim, Top (Black)
17	Door Trim, Top (Etched Aluminum)
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
