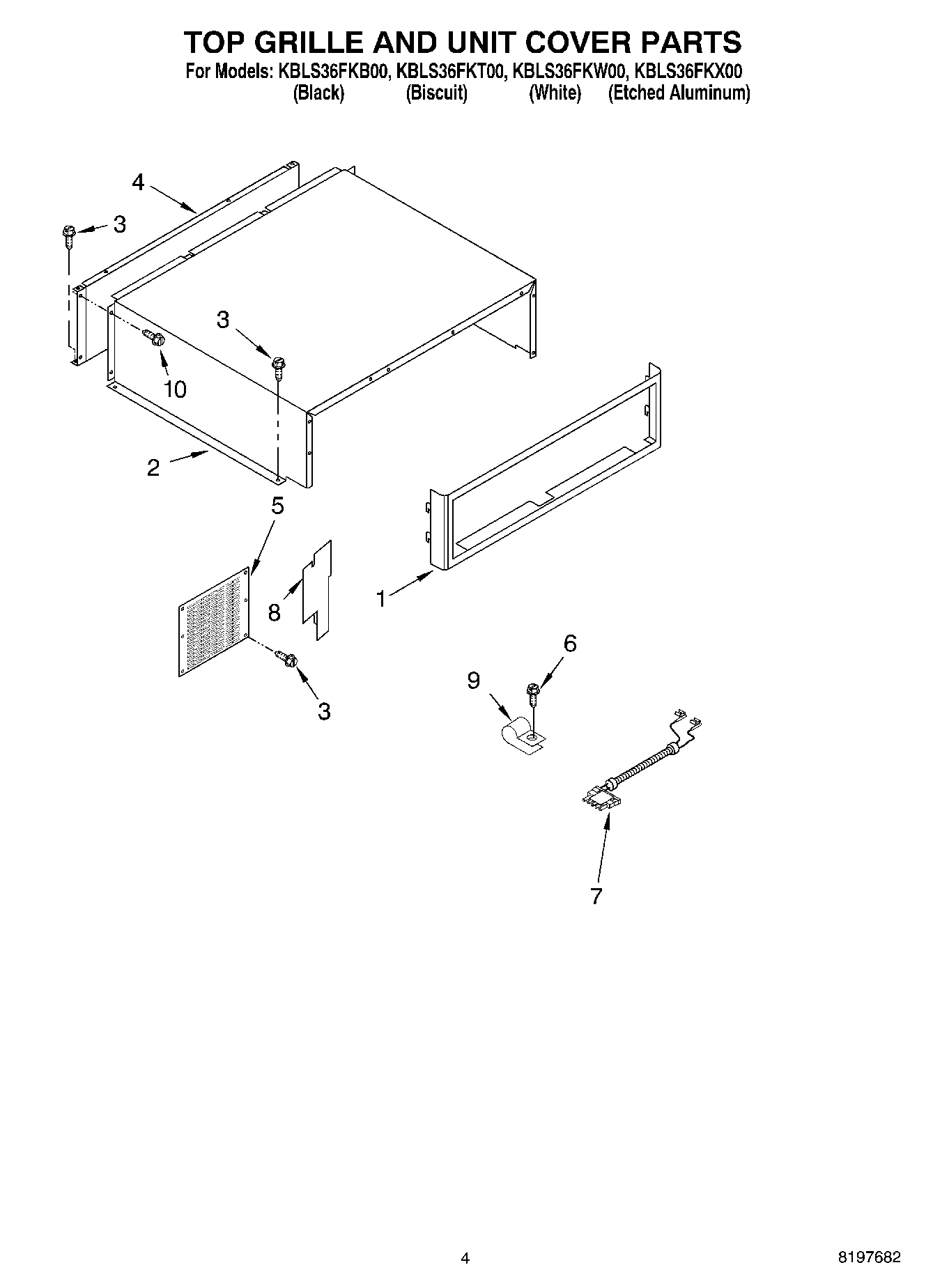

KBLS36FKT00 03 – TOP GRILLE AND UNIT COVER

KBLS36FKT00 03 – TOP GRILLE AND UNIT COVER

Written by

in

KBLS36FKT00 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (White)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
3WP489069 Whirlpool Compactor Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly
8Baffle-Air, Condenser
9489348 Whirlpool Refrigerator Tube Clamp
10SCREW
