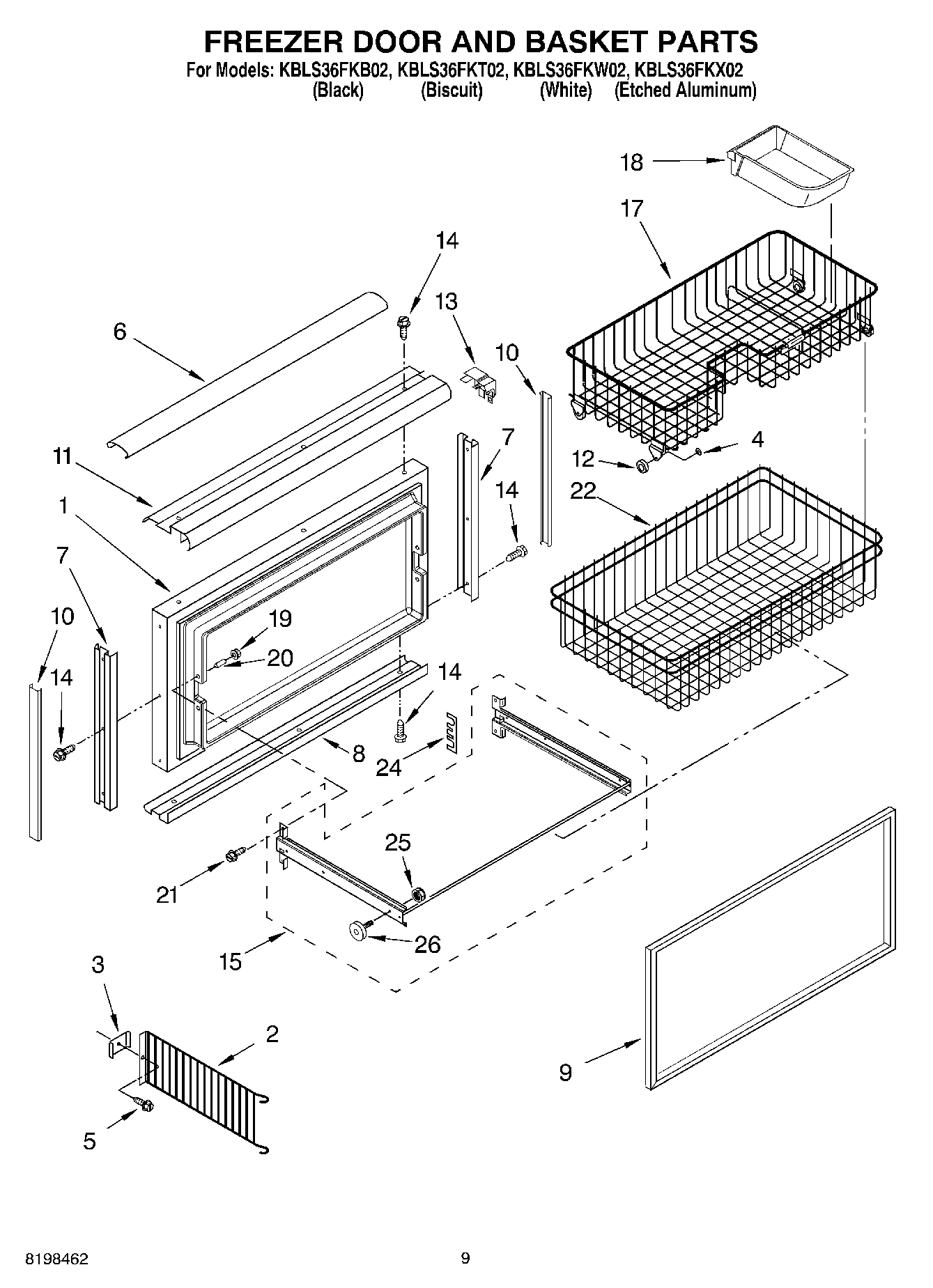

KBLS36FKT02 06 – FREEZER DOOR AND BASKET PARTSadmin2025-04-26T09:31:45+00:00KBLS36FKT02 06 – FREEZER DOOR AND BASKET PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Item 9) |
| 2 | Divider, Basket |
| 3 | Clamp, Divider |
| 5 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 6 | Trim Cover, Handle (Black) |
| 6 | Trim Cover, Handle (Etched Aluminum) |
| 6 | Cover-Trim, Handle (White) |
| 6 | Cover-Trim, Handle (Biscuit) |
| 7 | Trim-Door, Side (White) |
| 7 | Trim-Door, Side (Biscuit) |
| 7 | Door Trim, Side (Etched Aluminum) |
| 7 | Door Trim, Side (Black) |
| 8 | Trim-Door, Bottom (White) |
| 8 | Door Trim, Bottom (Black) |
| 8 | Trim-Door, Bottom (Biscuit) |
| 8 | Door Trim, Bottom (Etched Aluminum) |
| 9 | Door Gasket, Magnetic |
| 10 | Cover-Trim, Side (White) |
| 10 | Cover-Trim, Side (Biscuit) |
| 10 | Trim Cover, Side (Black) |
| 10 | Trim Cover, Side (Etched Aluminum) |
| 11 | Handle, Door (Etched Aluminum) |
| 11 | Handle, Door (Black) |
| 11 | Handle, Door (White) |
| 11 | Handle, Door (Biscuit) |
| 12 | W11214482 Whirlpool Refrigerator Roller |
| 13 | 2207457 Whirlpool Refrigerator Door Trim |
| 13 | Corner Trim (Biscuit) |
| 13 | Corner Trim (White) |
| 13 | Corner Trim (Black) |
| 14 | W10851443 Whirlpool Refrigerator Screw |
| 14 | WP8281250 Whirlpool Refrigerator Screw |
| 14 | Screw 8-15 x 1/2 (White) |
| 14 | Screw 8-15 x 1/2 (Biscuit) |
| 15 | Bracket, Assembly Freezer Basket |
| 17 | Basket, Upper |
| 18 | Pan, Ice Cube |
| 19 | WP2207454 Whirlpool Refrigerator Nut |
| 20 | Bushing |
| 21 | Screw |
| 22 | Basket, Freezer Lower |
| 24 | Spacer |
| 25 | 2207415 Whirlpool Refrigerator Nut |
| 26 | Roller |
