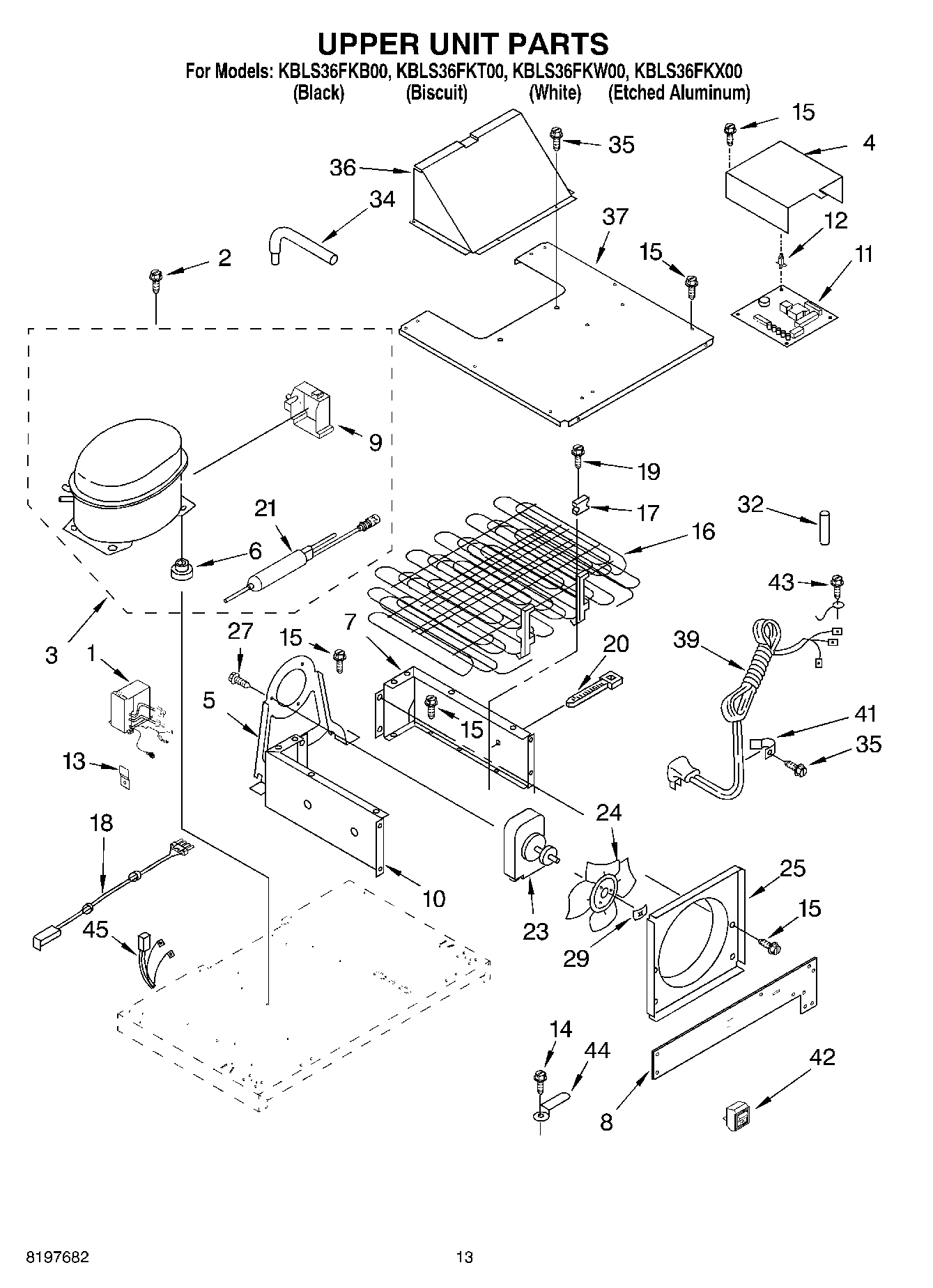

KBLS36FKW00 08 – UPPER UNIT

Products

Position	Product
1	W10629033 Whirlpool Refrigerator Inverter Control Box
3	W10841139 Whirlpool Refrigerator Compressor
3	876765 Whirlpool Primary Mounting Kit Refrigerator
4	Housing, Control Board
5	Bracket, Fan Motor
6	876811 Whirlpool Grommet
7	Shroud, Condenser (Right)
8	Panel, Condenser Front
9	2215676 Whirlpool Refrigerator Terminal Cover
10	Shroud, Condenser (Left)
11	Control Board
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	Screw
15	WP489069 Whirlpool Compactor Screw
16	Condenser
17	Grommet (4)
18	Jumper, Wire
19	WP488163 Whirlpool Refrigerator Screw
20	Strap
21	W10843121 Whirlpool Refrigerator Tube
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
27	8281160 Whirlpool Screw
29	WP486692 Whirlpool Refrigerator Nut
32	Sleeve, Condenser
34	W10528578 Whirlpool Refrigerator Tube
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
39	Service Cord
41	549193 Whirlpool Refrigerator Power Clamp
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	978026 Whirlpool Refrigerator Primary Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	978030 Whirlpool Refrigerator Valve
45	WP978025 Whirlpool Refrigerator Valve
45	VALVE, ACCESS (1/2``)
45	VALVE, ACCESS (5/8``)
45	Wiring Harness, Unit Compartment
