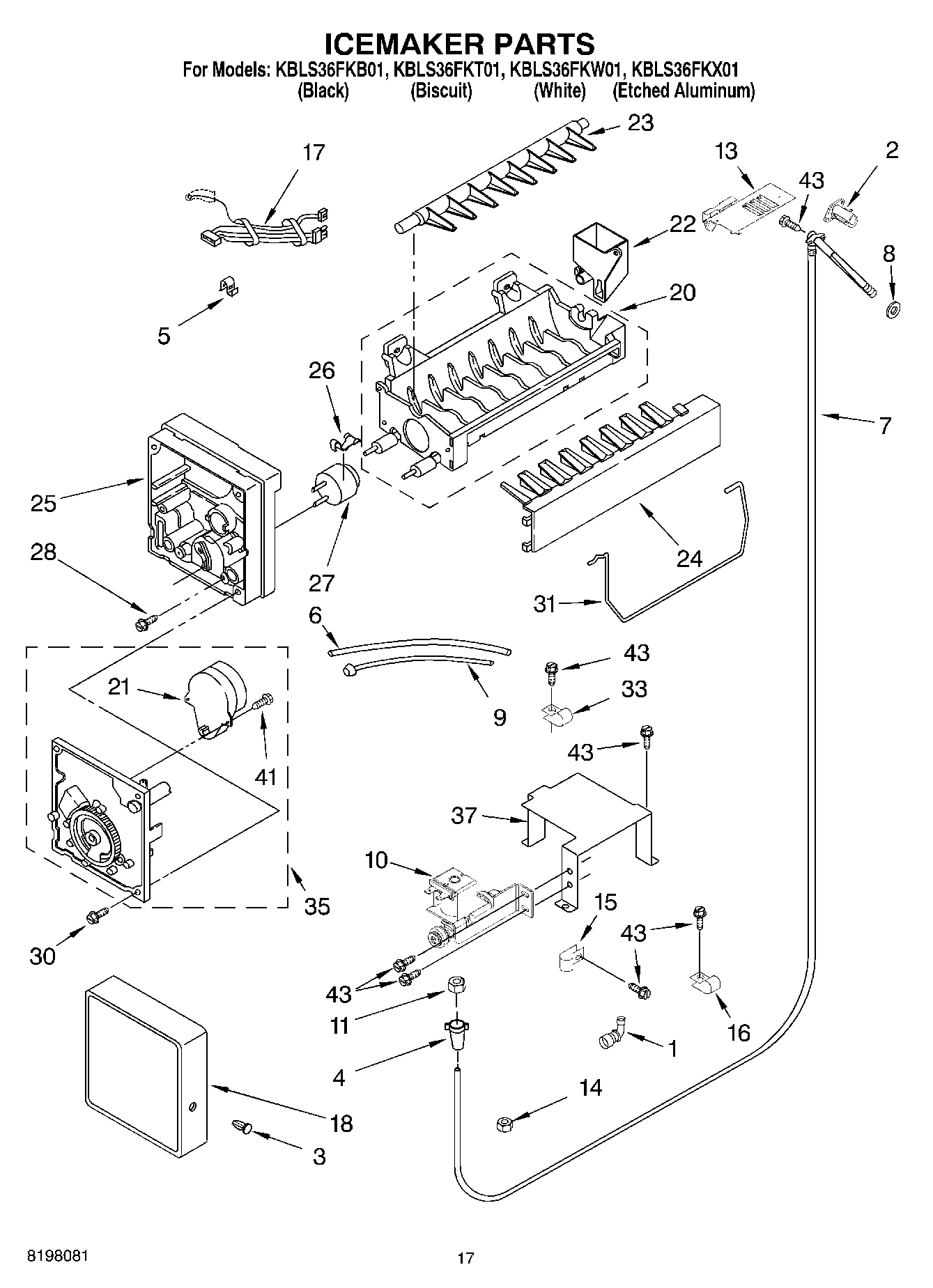

KBLS36FKX01 10 – ICE MAKER, OPTIONAL

Products

Position	Product
1	Tube, Valve
2	WP2221240 Whirlpool Refrigerator Heater
3	WP489115 Whirlpool Refrigerator Rivet
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Inlet Tube Assembly
8	WP1106508 Whirlpool Refrigerator Gasket
9	Tube, Filter Outlet
10	WP2313917 Whirlpool Refrigerator Inlet Valve
11	Compression Nut (Inlet)
13	WP2221231 Whirlpool Refrigerator Shield
14	Plug, Water Valve
15	489348 Whirlpool Refrigerator Tube Clamp
16	488946 Whirlpool Air Conditioner Clamp
17	Wire Assembly, Icemaker
18	Cover
20	WP542638 Whirlpool Refrigerator Grease
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	CEMENT, ALUMILASTIC (1 1/4 OZ.)
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	Shut Off Arm
33	WP488366 Whirlpool Refrigerator Clamp
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
43	WP489464 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
100	Front Panel Kit (White)
100	Front Panel Kit (Black)
100	Front Panel Kit (Biscuit)
100	Front Panel Kit (Stainless Steel)
100	Black Acrylic Static Cleaner
