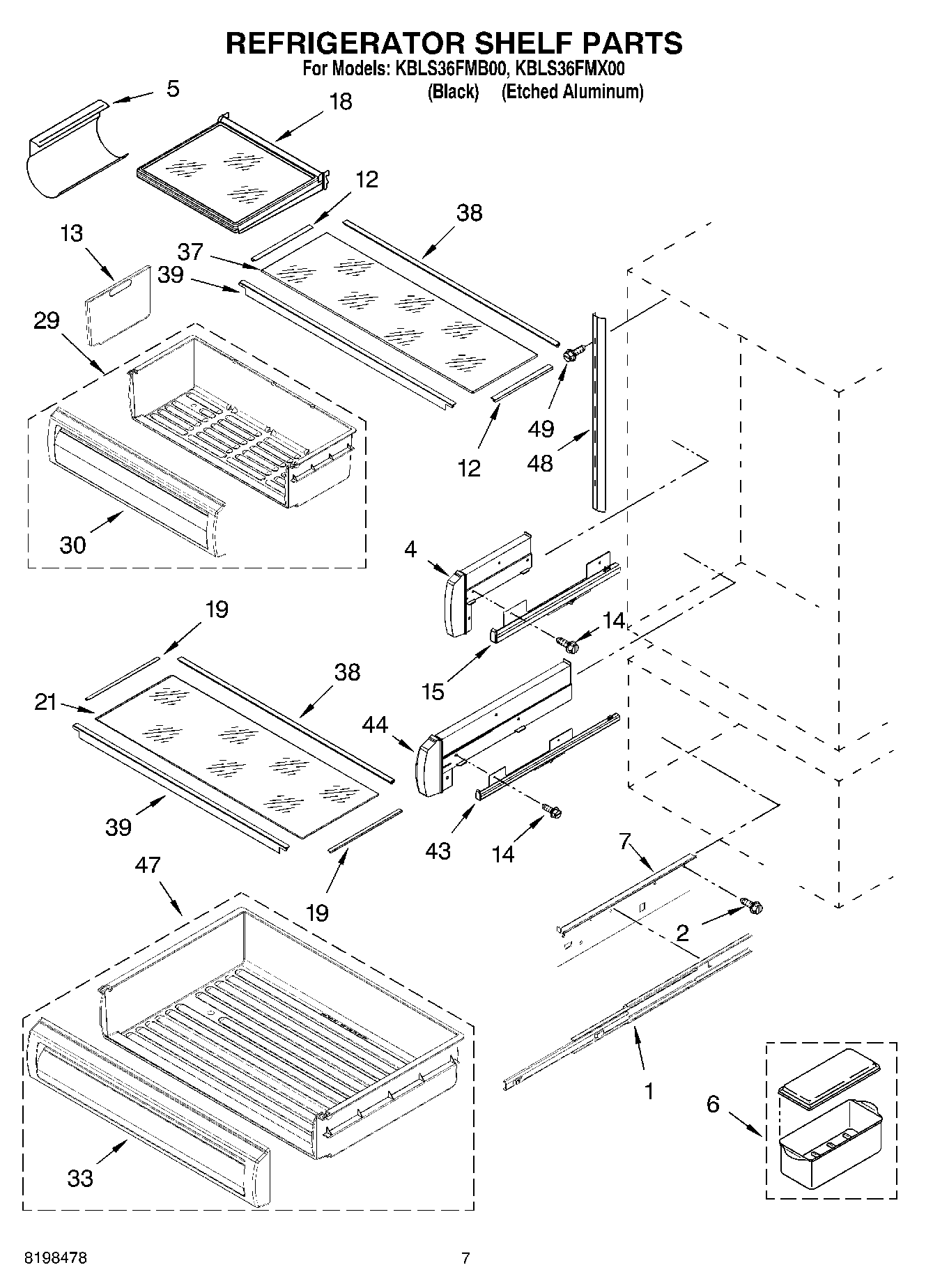

KBLS36FMB00 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Slide, Freezer Basket (Left Side)
1	Slide, Freezer Basket (Right Side)
4	Spacer, Crisper (Left Side)
4	Spacer, Crisper (Right Side)
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
7	Bracket, Freezer Basket (Left Side)
7	Bracket, Freezer Basket (Right Side)
12	Trim-Glass, Side
13	Divider, Crisper Pan
14	WP3400886 Whirlpool Refrigerator Screw
15	2302952 Whirlpool Refrigerator Slide
15	2302953 Whirlpool Refrigerator Slide
18	Shelf (4)
19	Trim-Glass, Side
21	Glass Shelf, Deli
29	WP2256375 Whirlpool Refrigerator Crisper Pan
30	2256374 Whirlpool Front Pan
33	2257548 Whirlpool Refrigerator Front Pan
37	Glass, Crisper Shelf
38	Trim-Glass, Rear
39	Trim-Glass, Front
43	Slide, Deli (Right Side)
43	Slide, Deli (Left Side)
44	Spacer, Deli (Right Side)
44	Spacer, Deli (Left Side)
47	Deli Pan Assembly (Includes 33)
48	Ladder, Shelf (4)
49	2006475 Whirlpool Refrigerator Screw
