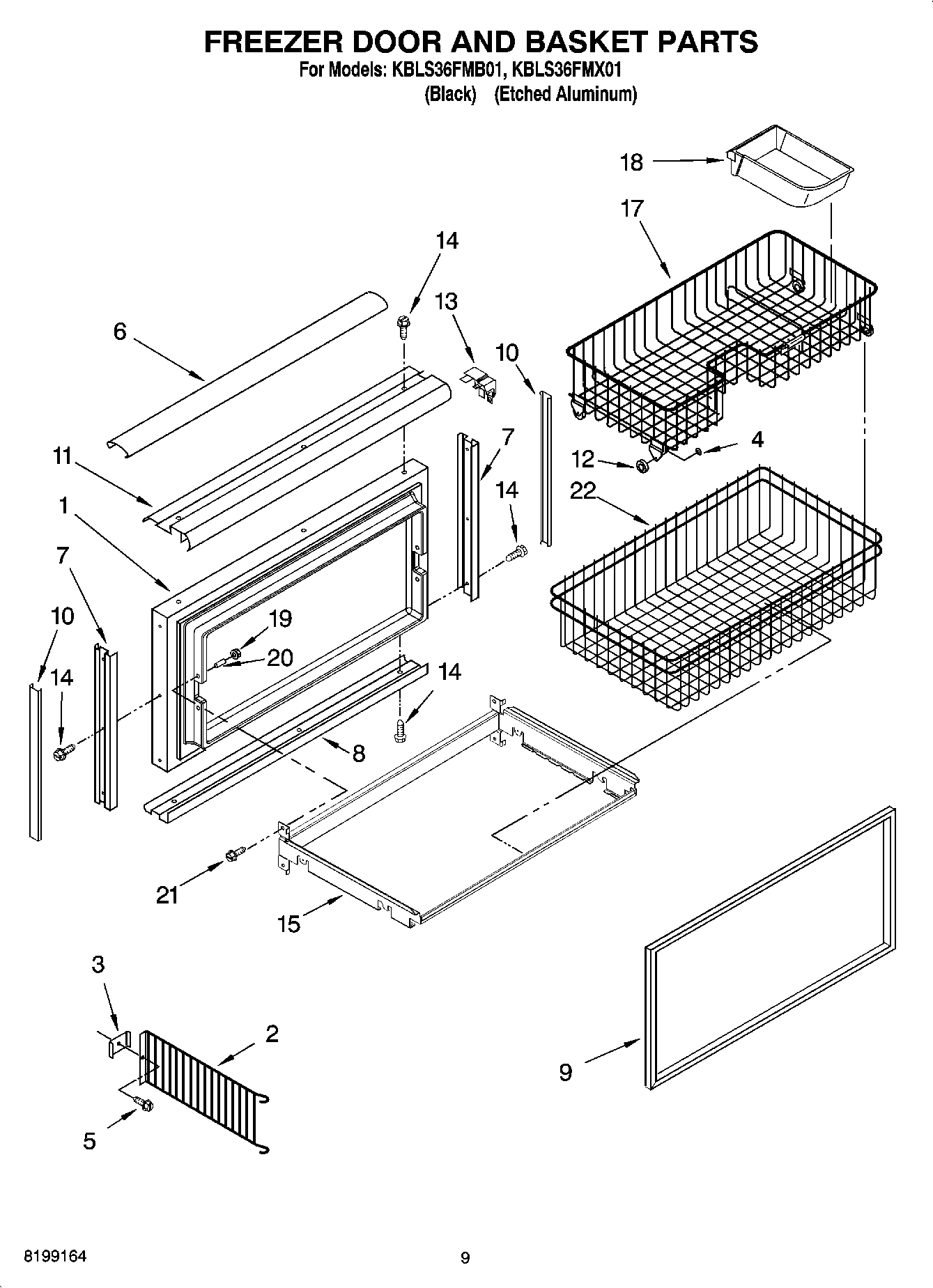

KBLS36FMB01 06 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
4	2207415 Whirlpool Refrigerator Nut
5	Screw
6	Trim Cover, Handle (Black)
6	Trim Cover, Handle (Etched Aluminum)
7	Door Trim, Side (Black)
7	Door Trim, Side (Etched Aluminum)
8	Door Trim, Bottom (Black)
8	Door Trim, Bottom (Etched Aluminum)
9	2302710 Whirlpool Refrigerator Door Gasket
10	Trim Cover, Side (Etched Aluminum)
10	Trim Cover, Side (Black)
11	Handle, Door (Etched Aluminum)
11	Handle, Door (Black)
12	W11214482 Whirlpool Refrigerator Roller
13	2207457 Whirlpool Refrigerator Door Trim
13	Corner Trim (Black)
14	W10851443 Whirlpool Refrigerator Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	Bracket Assembly, Freezer Basket
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
