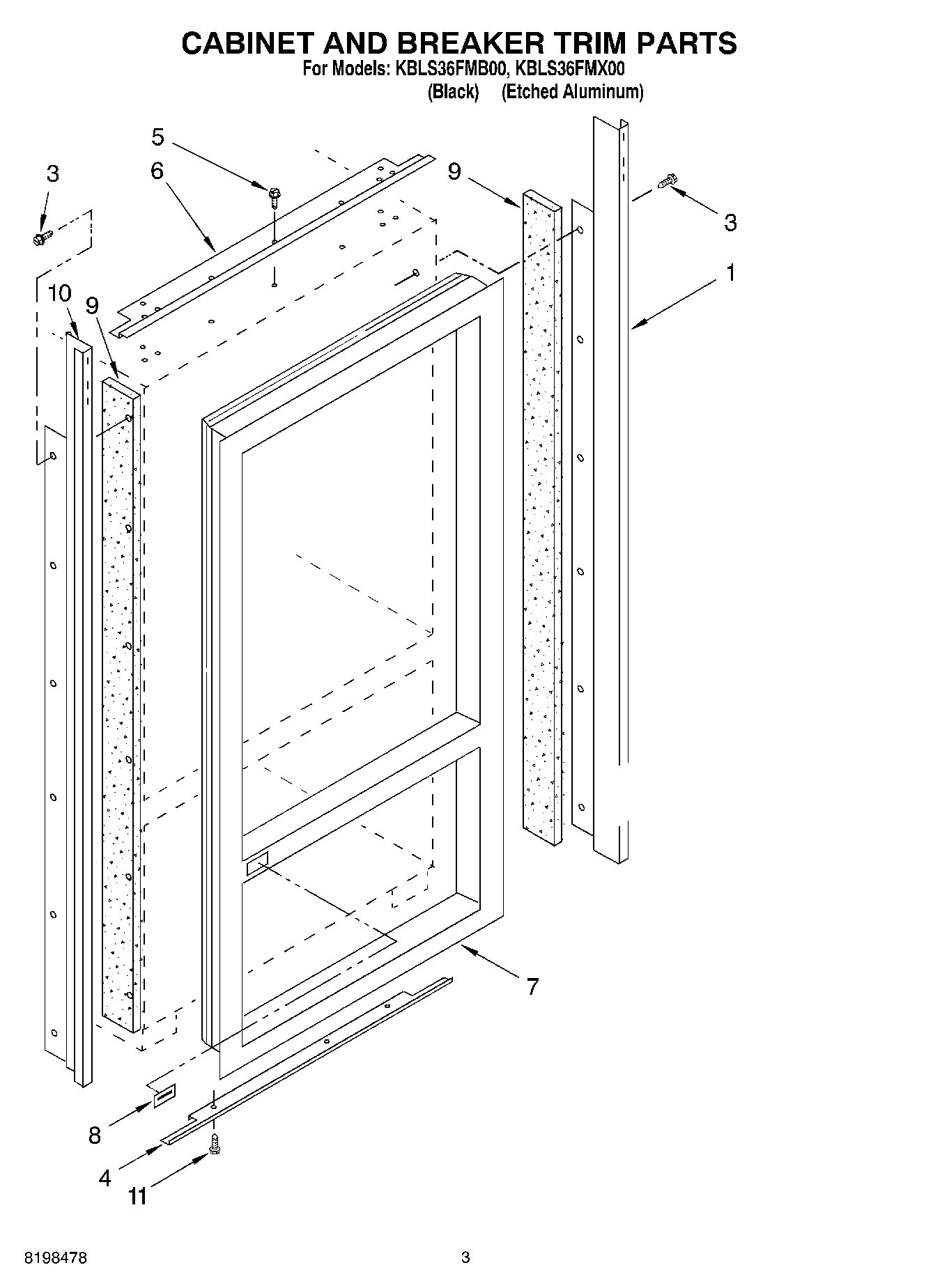

KBLS36FMX00 02 – CABINET AND BREAKER TRIM PARTS

KBLS36FMX00 02 – CABINET AND BREAKER TRIM PARTS

Written by

in

KBLS36FMX00 02 – CABINET AND BREAKER TRIM PARTS

Products

PositionProduct
1Cabinet Trim, Right Side (Black)
1Cabinet Trim, Right Side (Etched Aluminum)
3WP1163283 Whirlpool Air Conditioner Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Breaker Trim (Not Serviced)
8Cover, Hinge
9Seal, Side Trim
10Cabinet Trim, Left Side (Etched Aluminum)
10Cabinet Trim, Left Side (Black)
11WP489464 Whirlpool Refrigerator Screw
