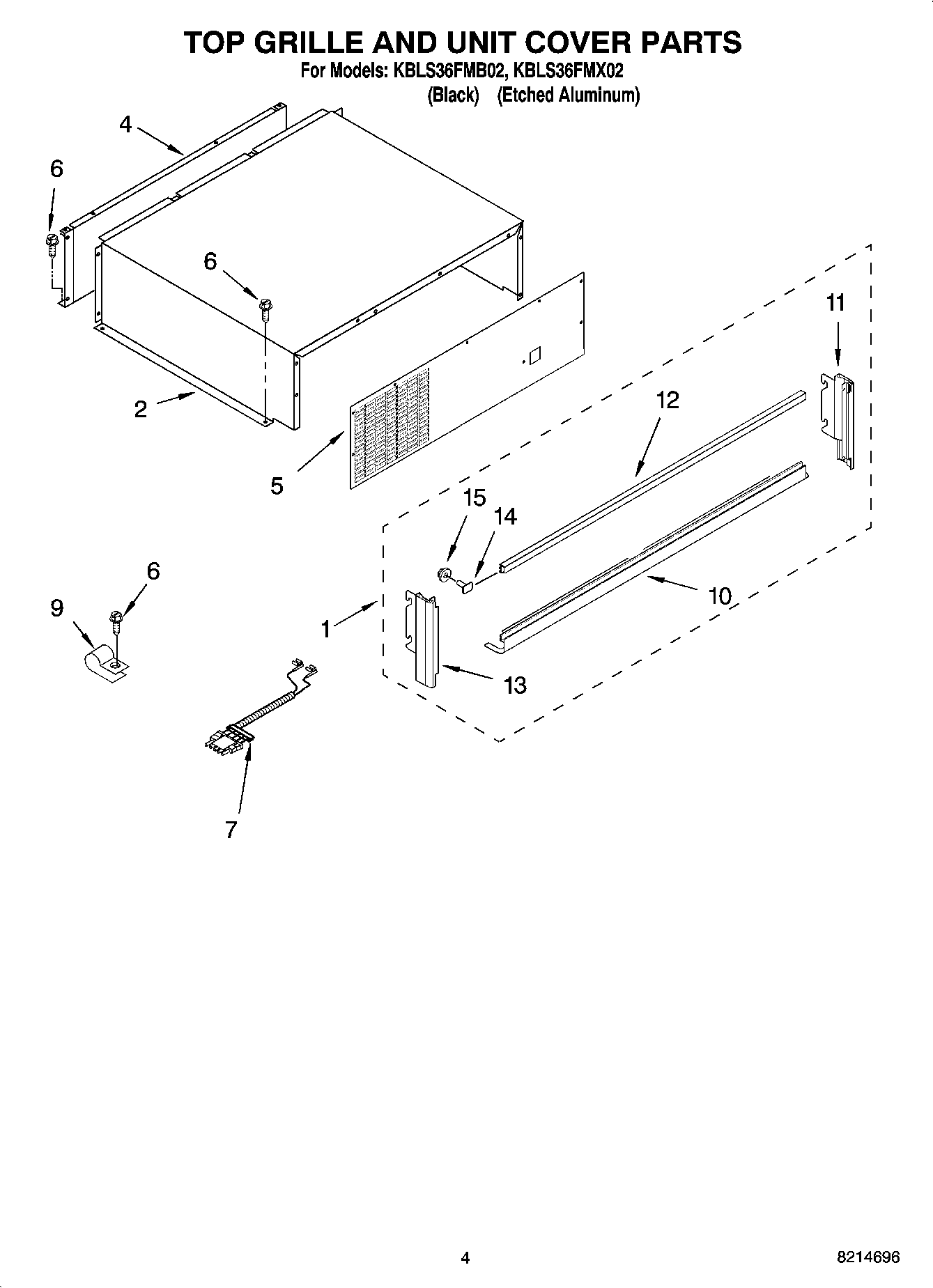

KBLS36FMX02 03 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly
9489348 Whirlpool Refrigerator Tube Clamp
10Trim-Grille, Bottom (Etched Aluminum)
10Trim-Grille, Bottom (Black)
11Trim-Grille, Right Side (Black)
11Trim-Grille, Right Side (Etched Aluminum)
12Trim-Grille, Top (Black)
12Trim-Grille, Top (Etched Aluminum)
13Trim-Grille, Left Side (Black)
13Trim-Grille, Left Side (Etched Aluminum)
142003347 Whirlpool Screw
15WP488130 Whirlpool Air Conditioner Nut
