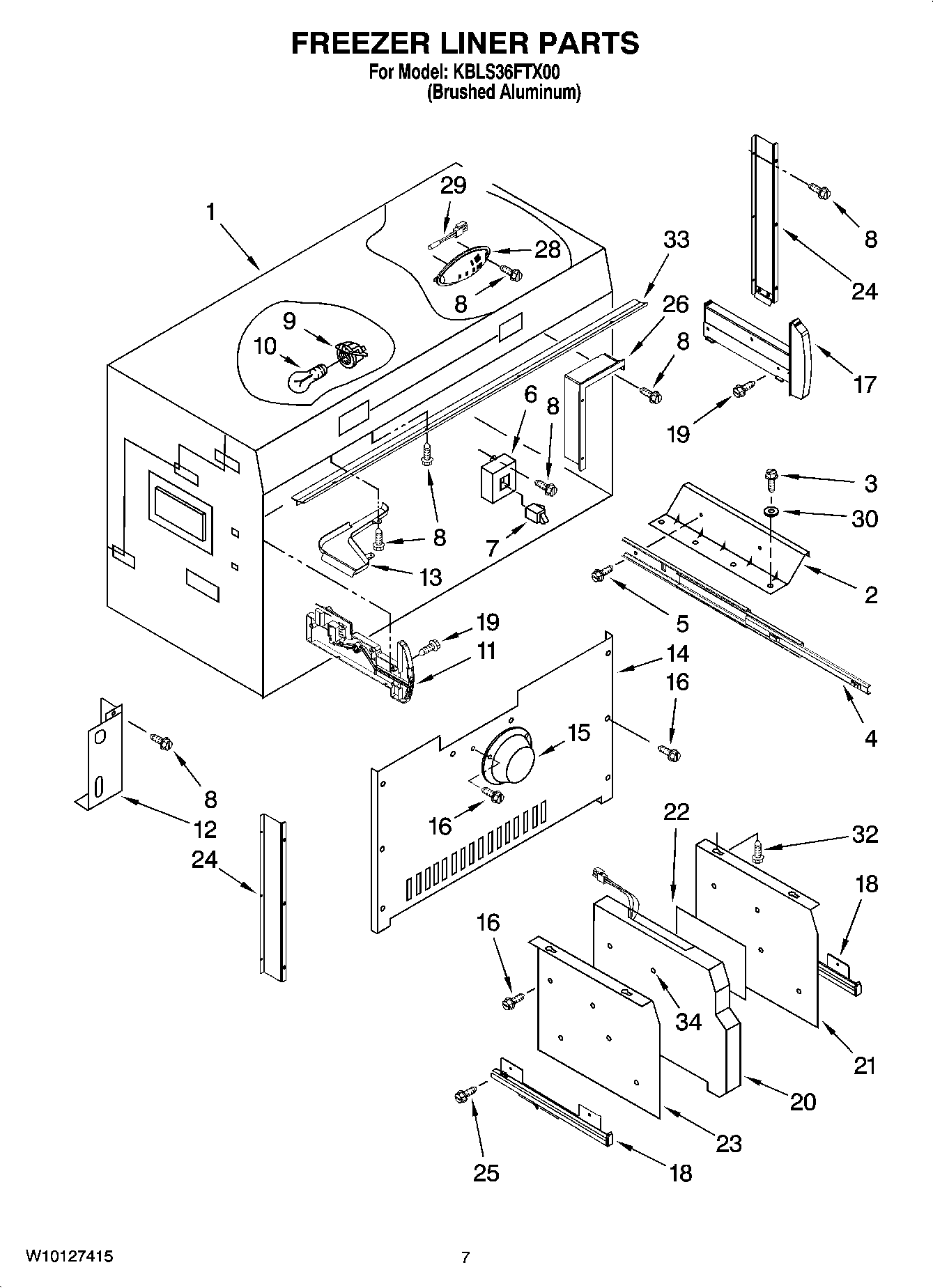

KBLS36FTX00 05 – FREEZER LINER PARTSadmin2025-04-26T09:30:49+00:00KBLS36FTX00 05 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner, Freezer (Not Servicable) |
| 2 | W10744329 Whirlpool Refrigerator Support |
| 3 | WP8204624 Whirlpool Bolt |
| 4 | WP2320616 Whirlpool Refrigerator Slide |
| 5 | Screw |
| 6 | Cover, Light Switch |
| 7 | W11384469 Whirlpool Door Switch |
| 8 | W11624204 Whirlpool Screw |
| 9 | WPW10191429 Whirlpool Refrigerator Socket |
| 10 | WPA3073101 Whirlpool Light Bulb |
| 11 | Switch Assembly, Icemaker (Includes emitter) |
| 12 | Cover, Wiring (Icemaker) |
| 13 | Duct, Air Flow (Icemaker) |
| 14 | Cover, Evaporator |
| 15 | 2317829 Whirlpool Refrigerator Cover |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | 2306106 Whirlpool Refrigerator Track |
| 18 | 2306117 Whirlpool Refrigerator Slide |
| 18 | 2306116 Whirlpool Refrigerator Slide |
| 20 | Divider, Freezer Bins (Includes receiver) |
| 21 | W10716209 Whirlpool Refrigerator Support |
| 22 | SHIELD |
| 23 | SUPPORT, SLIDE LEFT |
| 24 | Bracket, Evaporator Cover (Left Side) |
| 24 | Bracket, Evaporator Cover (Right Side) |
| 25 | WP488163 Whirlpool Refrigerator Screw |
| 26 | Bracket, Air Return |
| 28 | WP2317844 Whirlpool Refrigerator Cover |
| 29 | WP2188820 Whirlpool Refrigerator Thermistor |
| 30 | W10075920 Whirlpool Refrigerator Washer |
| 32 | WP8533928 Whirlpool Refrigerator Screw |
| 33 | Air Deflector Asy |
| 34 | WP2198643 Whirlpool Refrigerator Lens |
