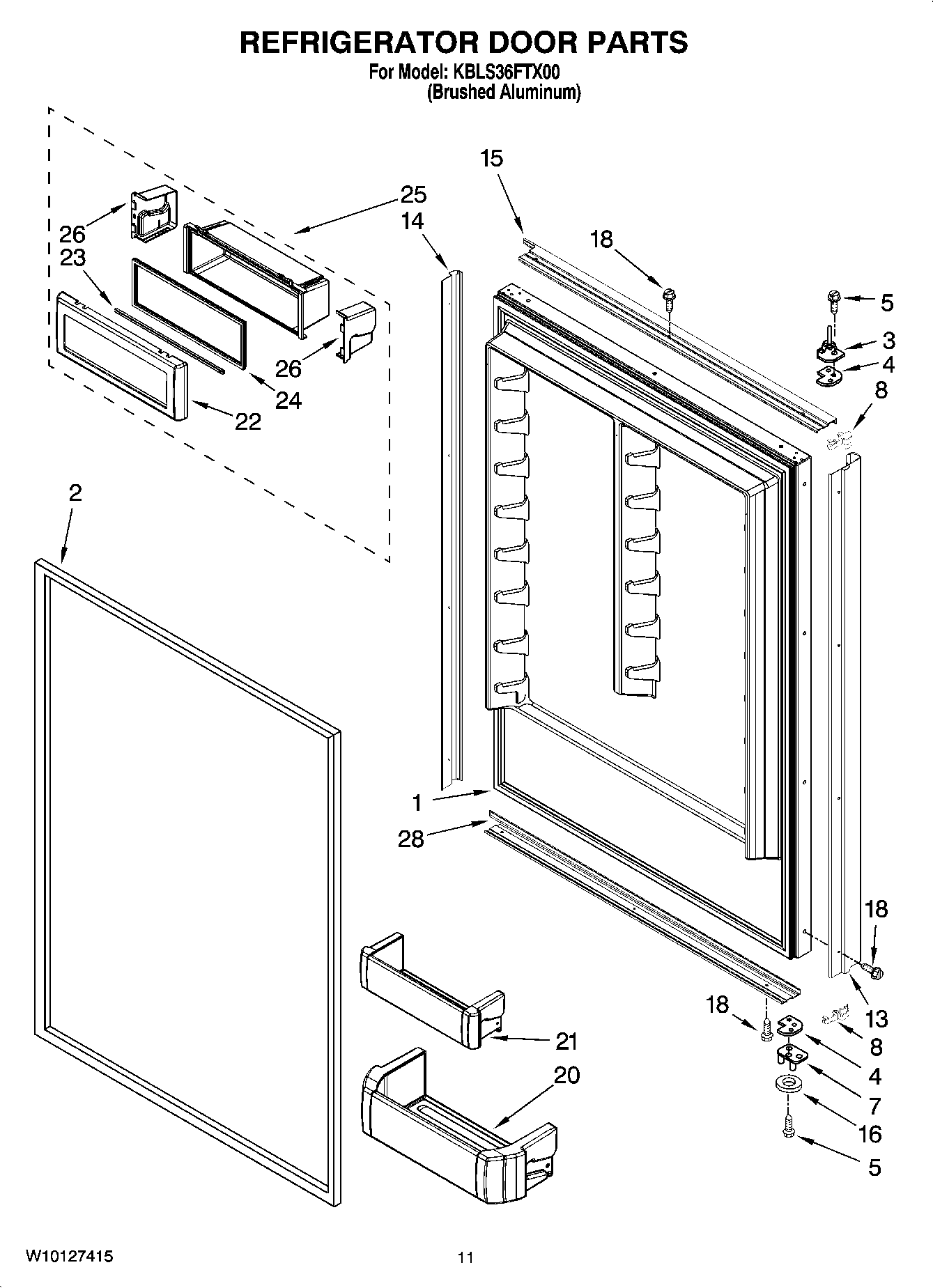

KBLS36FTX00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2)
2	2302709 Whirlpool Refrigerator Door Gasket
3	Hinge Assembly, Top
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
7	2316807 Whirlpool Refrigerator Door Hinge
8	Cap, Door (Left)
8	Cap, Door (Right)
13	HANDLE
14	Trim-Door, Side (Hinge Side)
15	Trim-Door, Top
16	WP2006346 Whirlpool Refrigerator Washer
18	WP8281250 Whirlpool Refrigerator Screw
20	W10323749 Whirlpool Refrigerator Cantilever Bin
21	W11590561 Whirlpool Refrigerator Cantilever Bin
22	Door, Utility Bin
23	Rail, Lid
24	Gasket, Utility Bin
25	W10323044 Whirlpool Refrigerator Cantilever Bin
26	WPW10323172 Whirlpool Refrigerator Retainer End Cap
26	WPW10323173 Whirlpool Refrigerator Retainer End Cap
28	Trim-Door, Bottom
