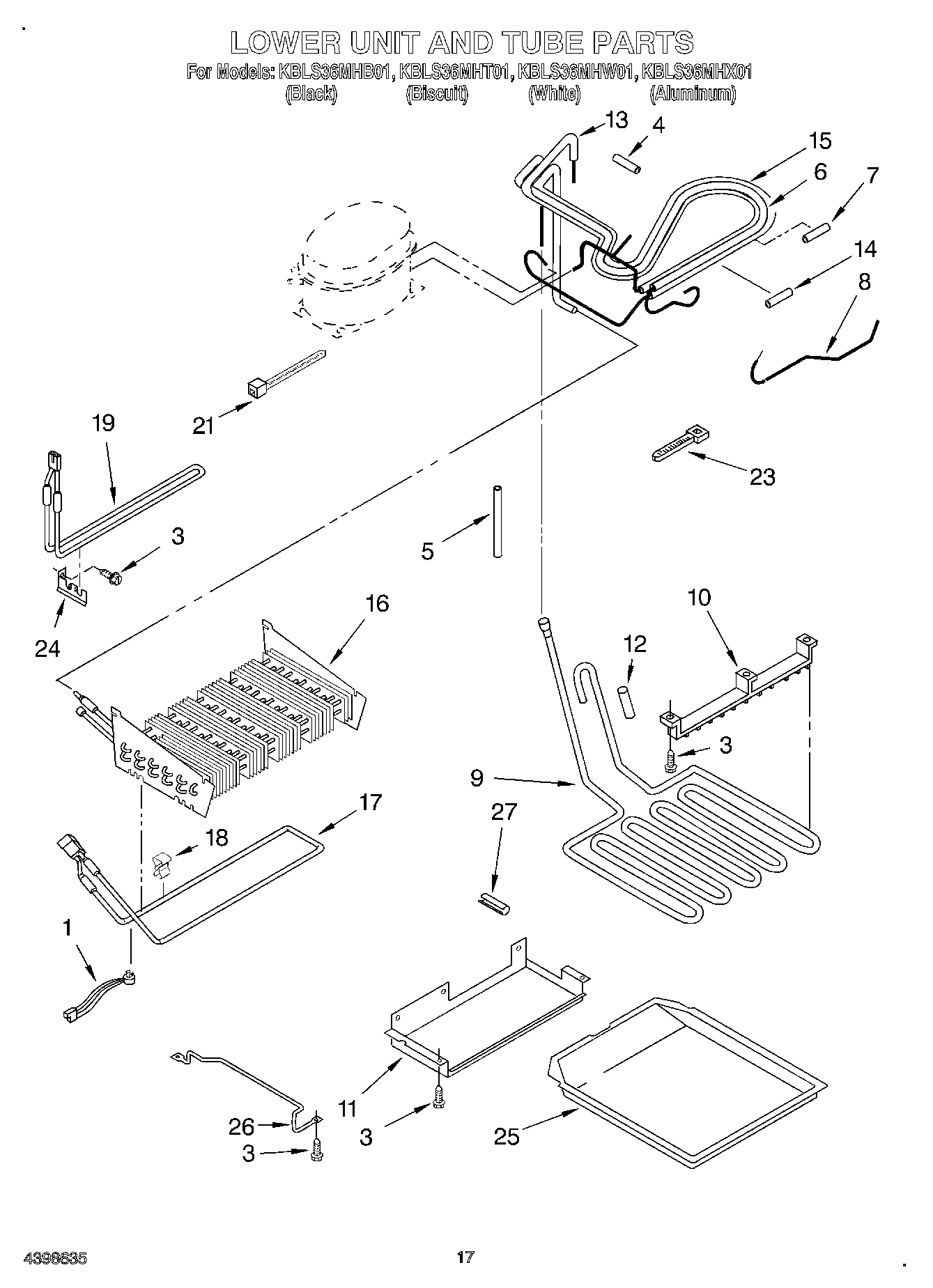

KBLS36MHB01 10 – LOWER UNIT AND TUBEadmin2025-04-26T09:34:02+00:00KBLS36MHB01 10 – LOWER UNIT AND TUBE
Products
| Position | Product |
|---|
| 1 | Defrost Bi-Metal |
| 3 | W11624204 Whirlpool Screw |
| 5 | WP2002171 Whirlpool Refrigerator Sleeve |
| 6 | Condenser Inlet Tube |
| 8 | Tube, Connect (Drier) |
| 9 | WP2004545 Whirlpool Refrigerator Heater Pan |
| 10 | Hanger, Heater |
| 11 | Shield, Drain Pan |
| 12 | Sleeve |
| 13 | Tube, Discharge |
| 15 | Heat Exchanger |
| 16 | Evaporator (Also Order Item 15) |
| 17 | Heater, Defrost (Front) |
| 18 | Clamp, Heater (2) |
| 19 | Heater, Defrost (Rear) |
| 21 | WPW10339879 Whirlpool Wire Tie |
| 23 | Strap |
| 24 | Support, Heater |
| 25 | WP2001264 Whirlpool Refrigerator Drip Pan |
| 26 | Bracket, Drain Pan (Left) |
| 26 | Bracket, Drain Pan (Right) |
| 27 | WP2158826 Whirlpool Refrigerator Dampener |
