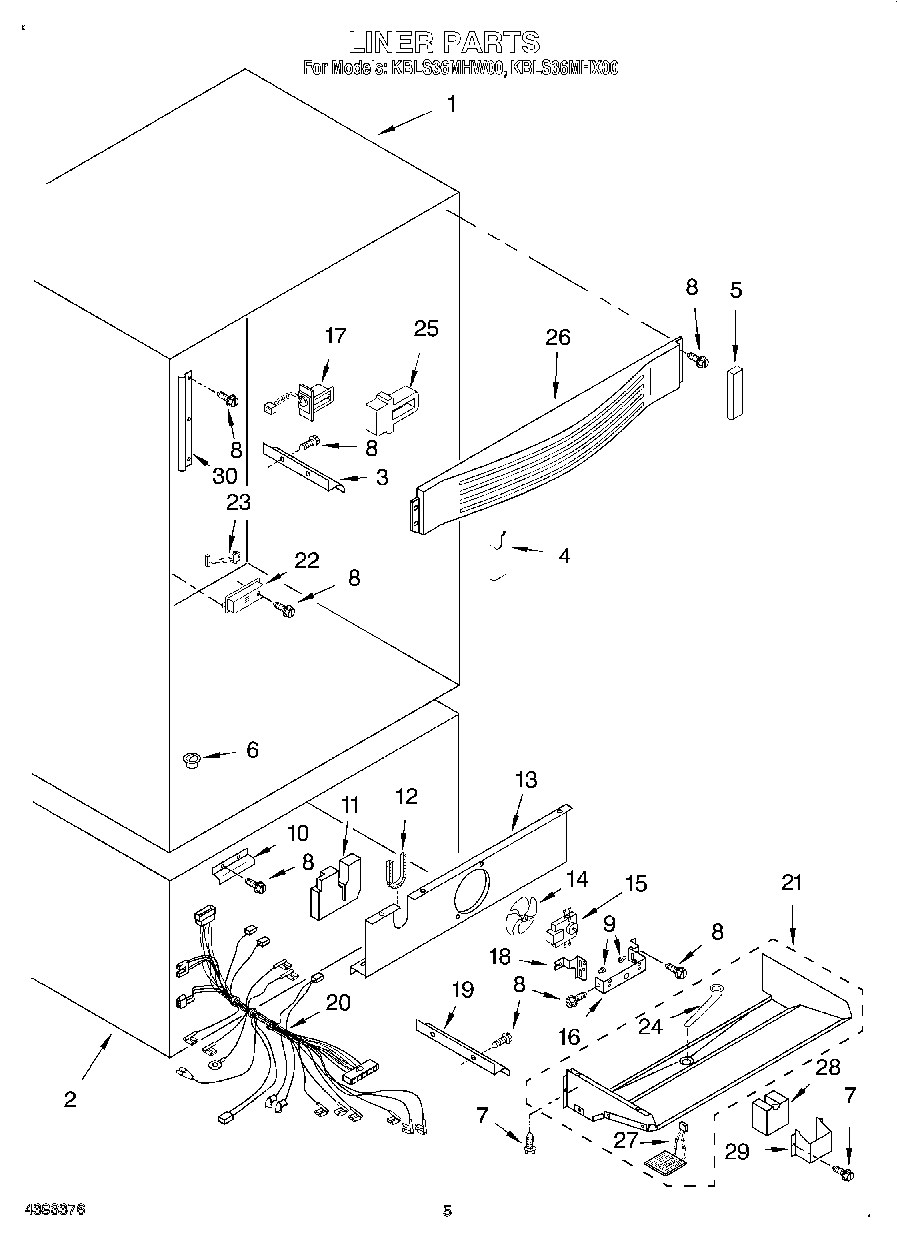

KBLS36MHX00 04 – LINER

Products

Position	Product
1	Liner, Refrigerator (Not Serviceable)
2	Liner, Freezer (Not a Serviceable Part)
3	Wiring Channel Side
4	Diffuser Cap, Left Side
5	Diffuser Cap, Right Side
6	2171846 Whirlpool Refrigerator Release Valve
7	WP488729 Whirlpool Refrigerator Door Screw
8	W11624204 Whirlpool Screw
9	Grommet (3)
10	Wiring Channel, Freezer Rear
11	Foam, Fan Shroud
12	Grommet, Flexible
13	Shroud, Evaporator Fan
14	WP2169142 Whirlpool Fan Blade
15	MOTOR-EVAP
16	Fan Bracket, Single
17	Air Baffle Assembly
18	Fan, Bracket Double
19	Wiring Channel Freezer, Side
20	Wiring Harness, Freezer
21	Cover, Evaporator Assembly
22	1116793 Whirlpool Refrigerator Cover
23	Thermistor
24	Drain Tube, Condesate
25	Insulation, Baffle
26	Cover, Air Diffuser
27	Heater-Tube, Drain
28	Insulation, Tube Drain
29	Cover, Tube Drain
30	Guard, Capillary Tube
