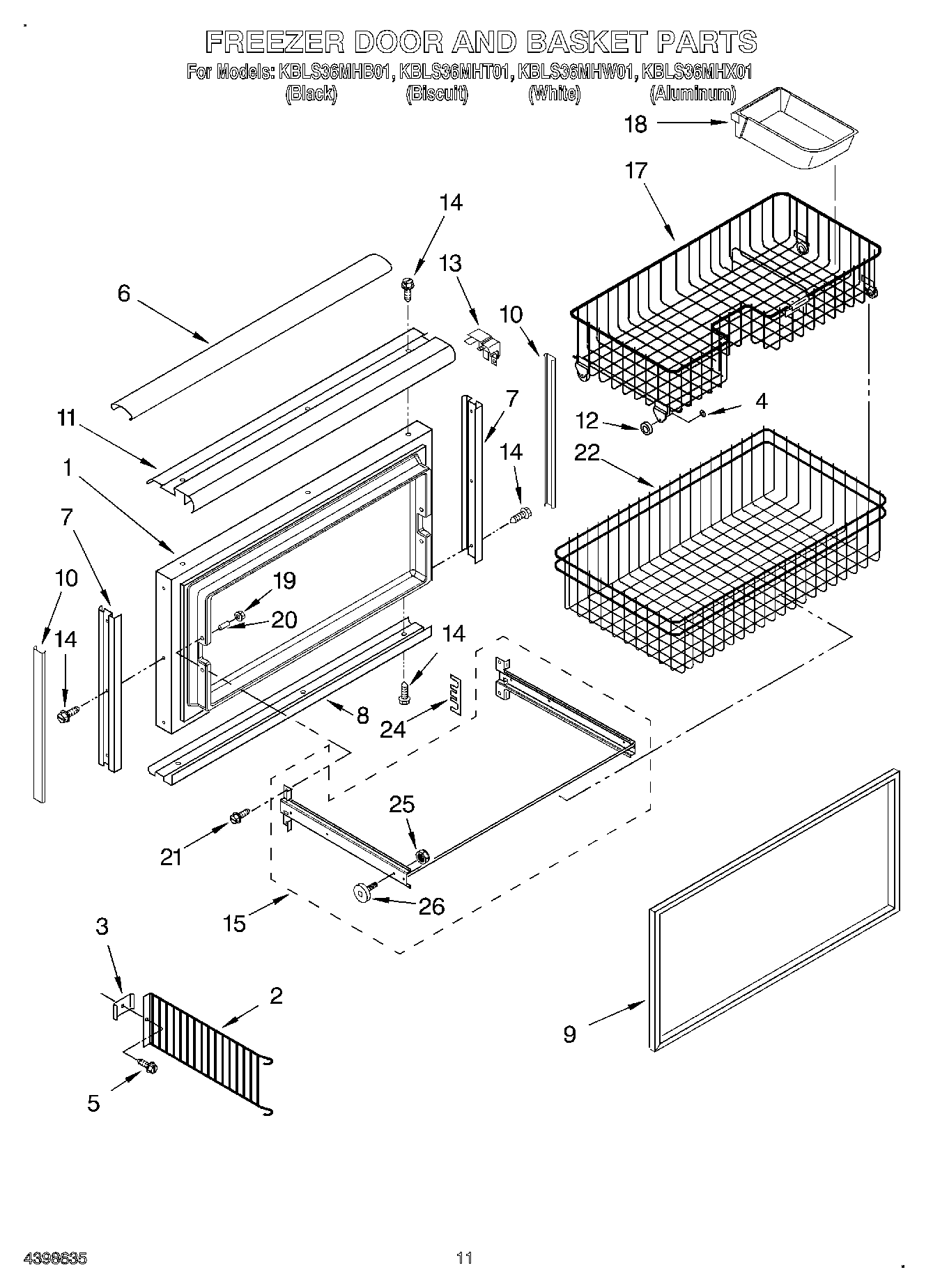

KBLS36MHX01 07 – FREEZER DOOR AND BASKET

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
5	WPW10141625 Whirlpool Refrigerator Screw Assembly
6	Trim Cover, Handle (Etched Aluminum)
6	Trim Cover, Handle (Black)
6	Cover-Trim, Handle (White)
6	Cover-Trim, Handle (Biscuit)
7	Door Trim, Side (Black)
7	Door Trim, Side (Etched Aluminum)
7	Trim-Door, Side (White)
7	Trim-Door, Side (Biscuit)
8	Trim-Door, Bottom (White)
8	Door Trim, Bottom (Black)
8	Door Trim, Bottom (Etched Aluminum)
8	Trim-Door, Bottom (Biscuit)
9	Door Gasket, Magnetic
10	Trim Cover, Side (Etched Aluminum)
10	Trim Cover, Side (Black)
10	Cover-Trim, Side (Biscuit)
10	Cover-Trim, Side (White)
11	Handle, Door (Biscuit)
11	Handle, Door (White)
11	Handle, Door (Black)
11	Handle, Door (Etched Aluminum)
12	W11214482 Whirlpool Refrigerator Roller
13	2207457 Whirlpool Refrigerator Door Trim
13	Corner Trim (Black)
13	Corner Trim (Biscuit)
13	Corner Trim (White)
14	WP488729 Whirlpool Refrigerator Door Screw
15	Bracket, Assembly Freezer Basket
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
24	Spacer
25	2207415 Whirlpool Refrigerator Nut
26	Roller
