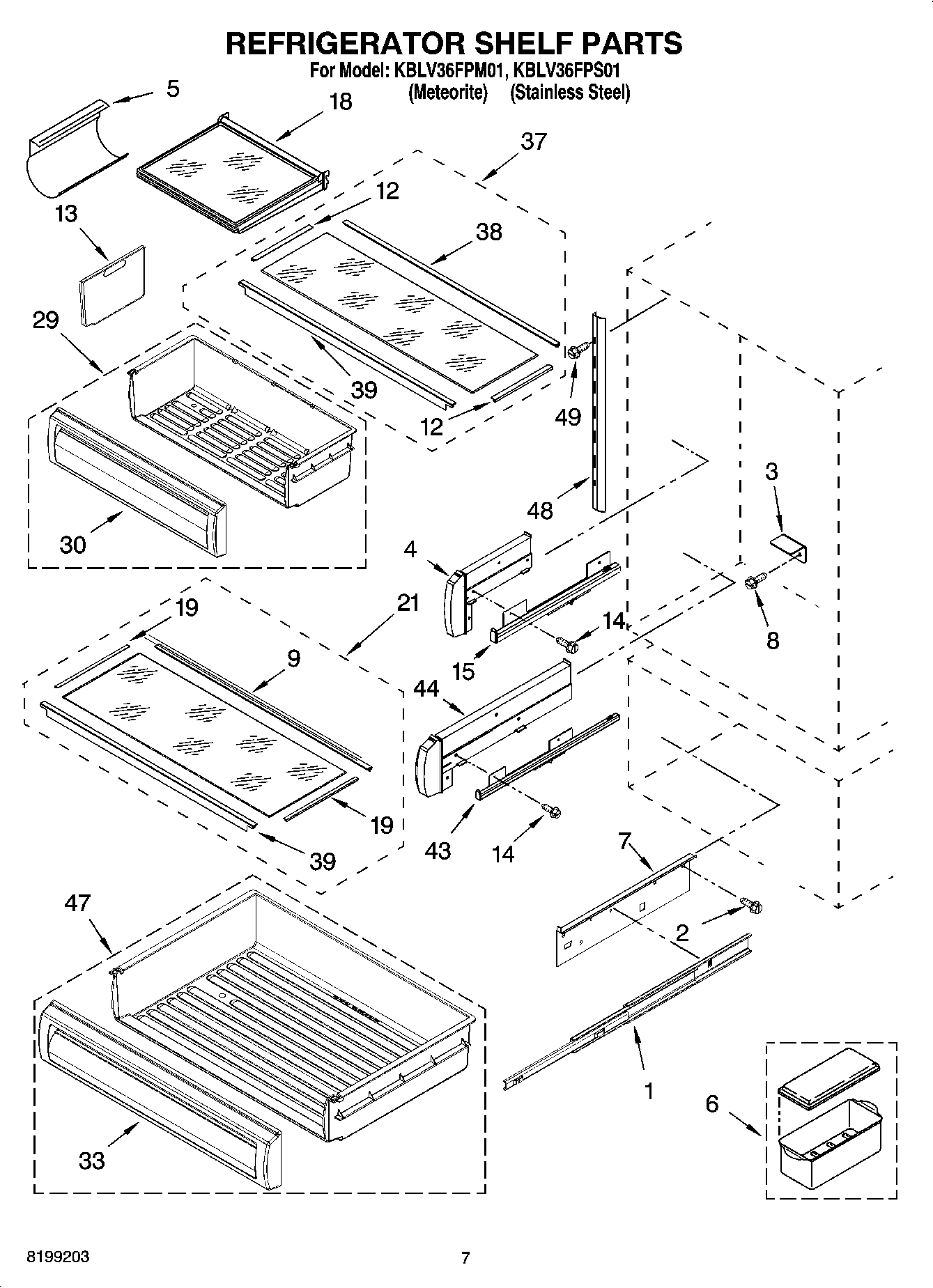

KBLV36FPM01 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Slide, Freezer Basket (Left Side)
1	Slide, Freezer Basket (Right Side)
3	Support, Crisper Cover
4	Spacer, Crisper (Left Side)
4	Spacer, Crisper (Right Side)
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
7	Bracket, Freezer Basket (Right Side)
7	Bracket, Freezer Basket (Left Side)
8	WP8533928 Whirlpool Refrigerator Screw
9	Trim-Glass, Rear
12	Trim-Glass, Side
13	Divider, Crisper Pan
14	WP3400886 Whirlpool Refrigerator Screw
15	2302952 Whirlpool Refrigerator Slide
15	2302953 Whirlpool Refrigerator Slide
18	Shelf (4)
19	Trim-Glass, Side
21	Deli Shelf Assembly
29	WP2256375 Whirlpool Refrigerator Crisper Pan
30	2256374 Whirlpool Front Pan
33	2257548 Whirlpool Refrigerator Front Pan
37	Crisper Shelf Assembly
38	Trim-Glass, Rear
39	Trim-Glass, Front (Not Servicable)
43	Slide, Deli (Left Side)
43	Slide, Deli (Right Side)
44	Spacer, Deli (Left Side)
44	Spacer, Deli (Right Side)
47	Deli Pan Assembly (Includes 33)
48	Ladder, Shelf (4)
49	2006475 Whirlpool Refrigerator Screw
