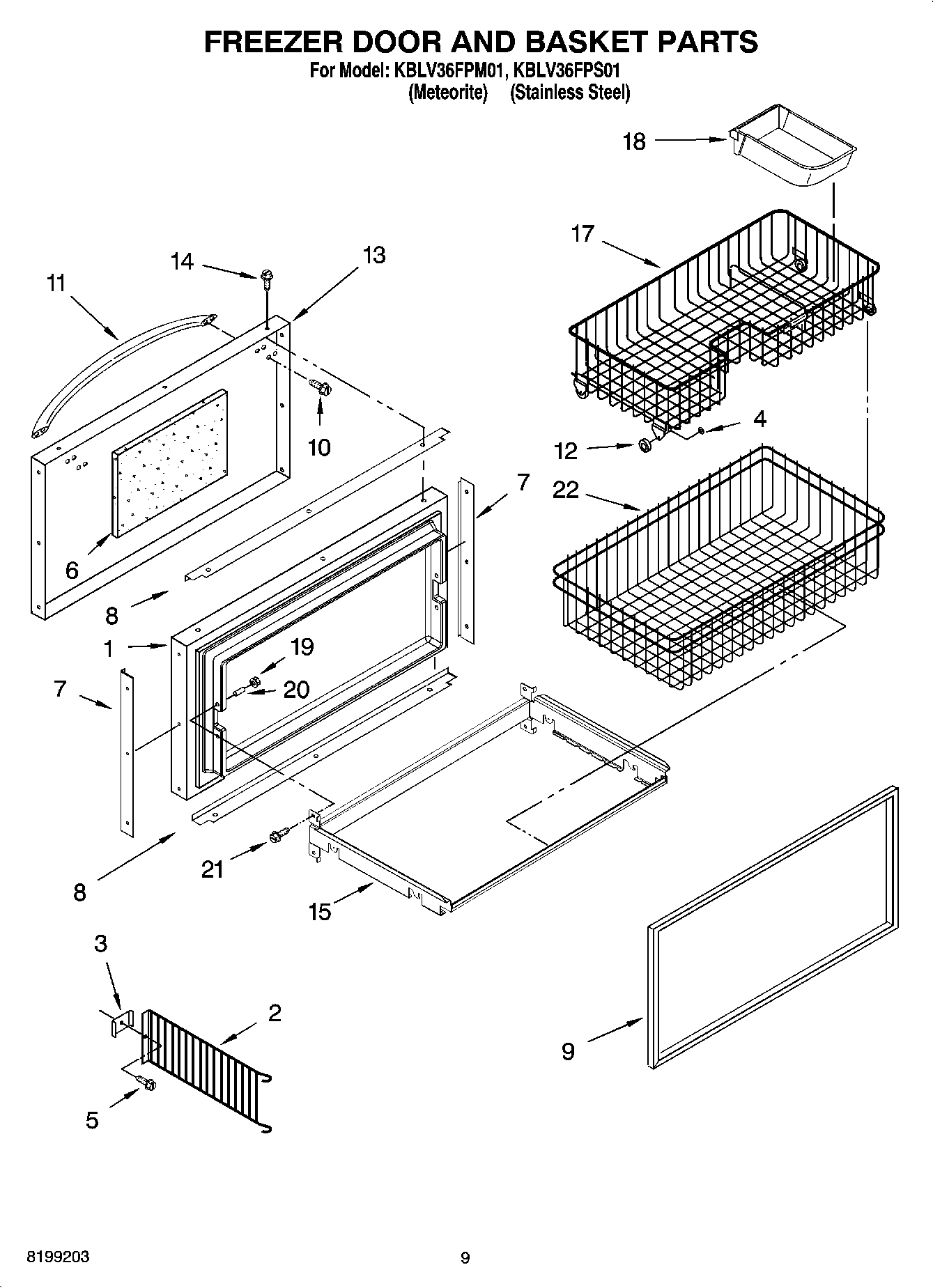

KBLV36FPM01 06 – FREEZER DOOR AND BASKET PARTSadmin2025-04-26T09:31:52+00:00KBLV36FPM01 06 – FREEZER DOOR AND BASKET PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Item 9) |
| 2 | Divider, Basket |
| 3 | Clamp, Divider |
| 4 | 2207415 Whirlpool Refrigerator Nut |
| 5 | Screw |
| 6 | Filler, Foam |
| 7 | 2300027 Whirlpool Spacer |
| 8 | Spacer, Door Edge Top & Bottom |
| 9 | 2302710 Whirlpool Refrigerator Door Gasket |
| 10 | WP308544 Whirlpool Screw |
| 11 | Handle, Door (Stainless Steel) |
| 12 | W11214482 Whirlpool Refrigerator Roller |
| 13 | Skin, Door (Meteorite) |
| 13 | Skin, Door (Stainless Steel) |
| 14 | W10851443 Whirlpool Refrigerator Screw |
| 14 | WP8281250 Whirlpool Refrigerator Screw |
| 15 | Bracket Assembly, Freezer Basket |
| 17 | Basket, Upper |
| 18 | Pan, Ice Cube |
| 19 | WP2207454 Whirlpool Refrigerator Nut |
| 20 | Bushing |
| 21 | Screw |
| 22 | Basket, Freezer Lower |
