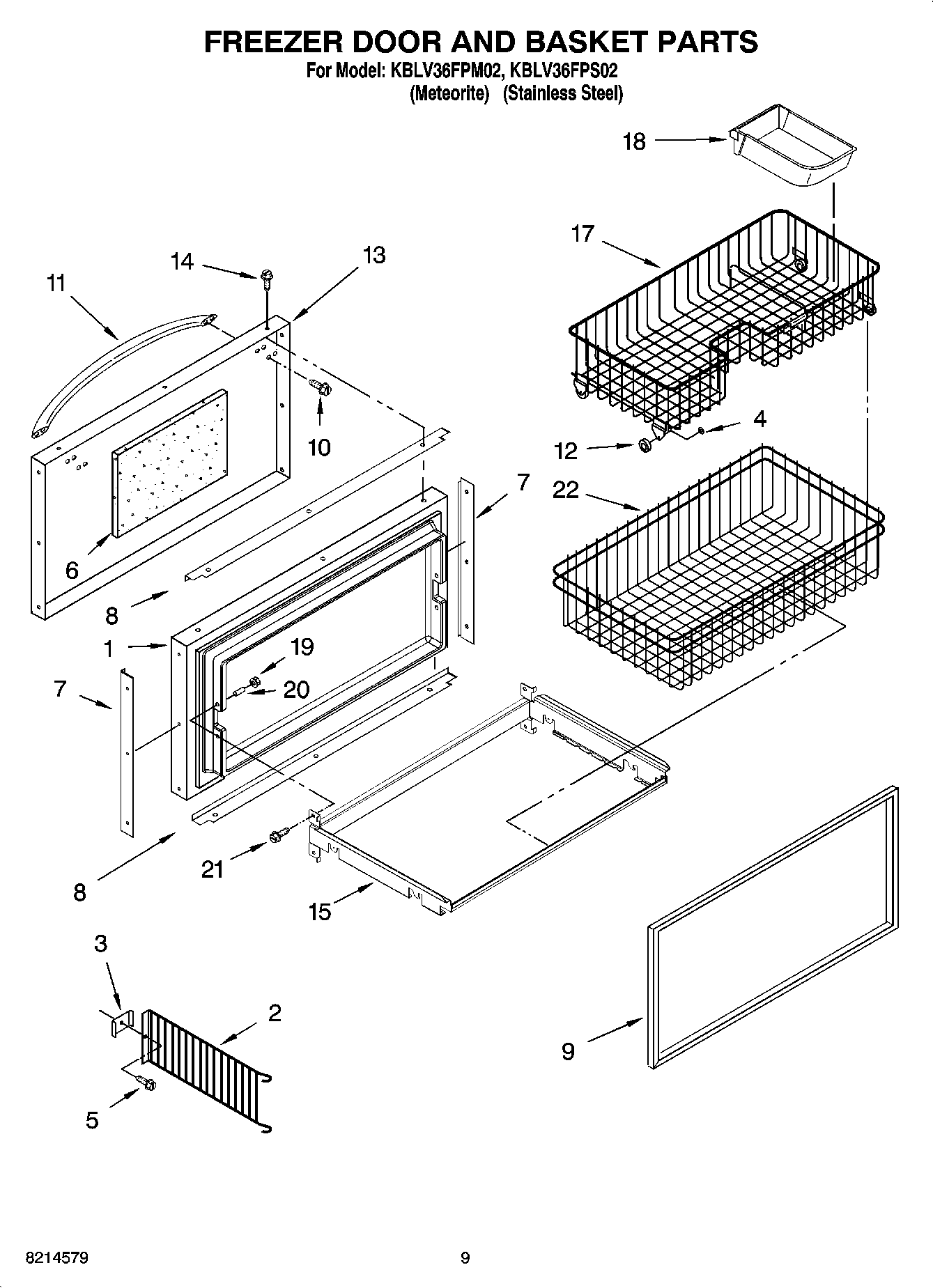

KBLV36FPM02 06 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket
3Clamp, Divider
42207415 Whirlpool Refrigerator Nut
5Screw
6Filler, Foam
72300027 Whirlpool Spacer
8Spacer, Door Edge Top & Bottom
92302710 Whirlpool Refrigerator Door Gasket
10WP308544 Whirlpool Screw
11Handle, Door (Stainless Steel)
12W11214482 Whirlpool Refrigerator Roller
13Skin, Door (Meteorite)
13Skin, Door (Stainless Steel)
14W10851443 Whirlpool Refrigerator Screw
14WP8281250 Whirlpool Refrigerator Screw
15Bracket Assembly, Freezer Basket
17Basket, Upper
18Pan, Ice Cube
19WP2207454 Whirlpool Refrigerator Nut
20Bushing
21Screw
22Basket, Freezer Lower
