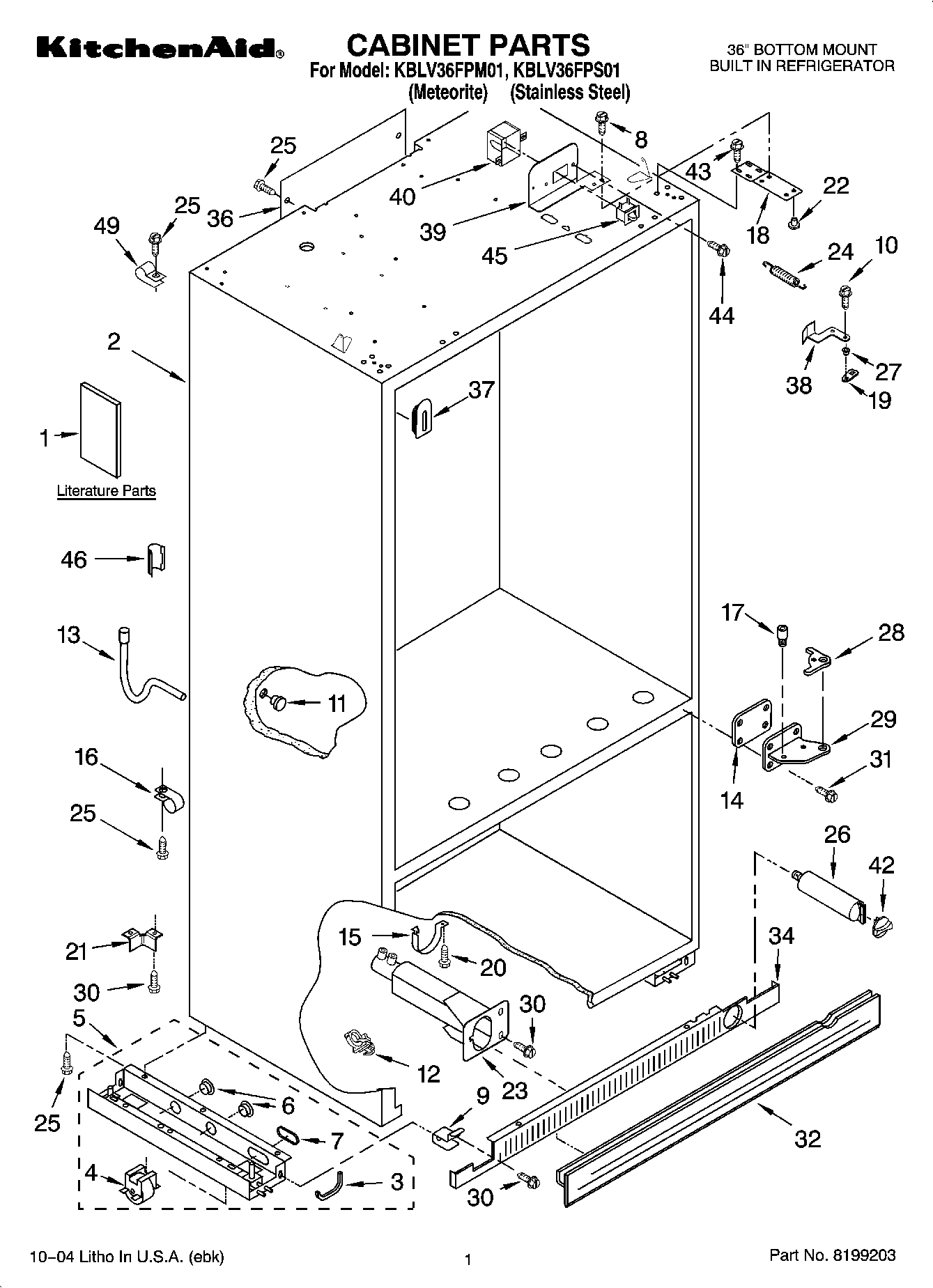

KBLV36FPS01 01 – CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Main Control Service Sheet
1	Energy Label
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Use & Care Guide
2	Cabinet (Not A Serviceable Part)
3	Grommet, Crossover Tube
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5	W10860448 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
8	WP489399 Whirlpool Refrigerator Screw
9	Mounting Bracket, Grill
10	Screw
11	Cap, Grommet
12	Clamp
13	Tube, Drain Condensate
14	2207470 Whirlpool Refrigerator Hinge Shim
15	Clamp, Filter Housing
16	WP488366 Whirlpool Refrigerator Clamp
17	Screw, Door Stop
18	2257644 Whirlpool Refrigerator Door Hinge
19	Cam-Closer, Door
20	WP489069 Whirlpool Compactor Screw
21	2006617 Whirlpool Refrigerator Bracket
22	Bushing
23	WP2209022 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
27	WP2316859 Whirlpool Refrigerator Bushing
28	W10188434 Whirlpool Refrigerator Hinge Gap
29	2005101 Whirlpool Refrigerator Bottom Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	W11474472 Whirlpool Screw
32	WP2209024B Whirlpool Refrigerator Front Grille
34	Grille Base, Front
36	2215612 Whirlpool Refrigerator Duct Cover
37	Grommet, Wiring
38	W11298172 Whirlpool Refrigerator Extension
39	2221096 Whirlpool Refrigerator Bracket
40	2215938 Whirlpool Refrigerator Switch Cover
42	WP2186494B Whirlpool Refrigerator Filter Cap
43	W11189635 Whirlpool Refrigerator Screw
44	WP965173 Whirlpool Dishwasher Screw
45	W11384469 Whirlpool Door Switch
46	9791833 Whirlpool Refrigerator Clip
49	W10833902 Whirlpool Refrigerator Clamp
