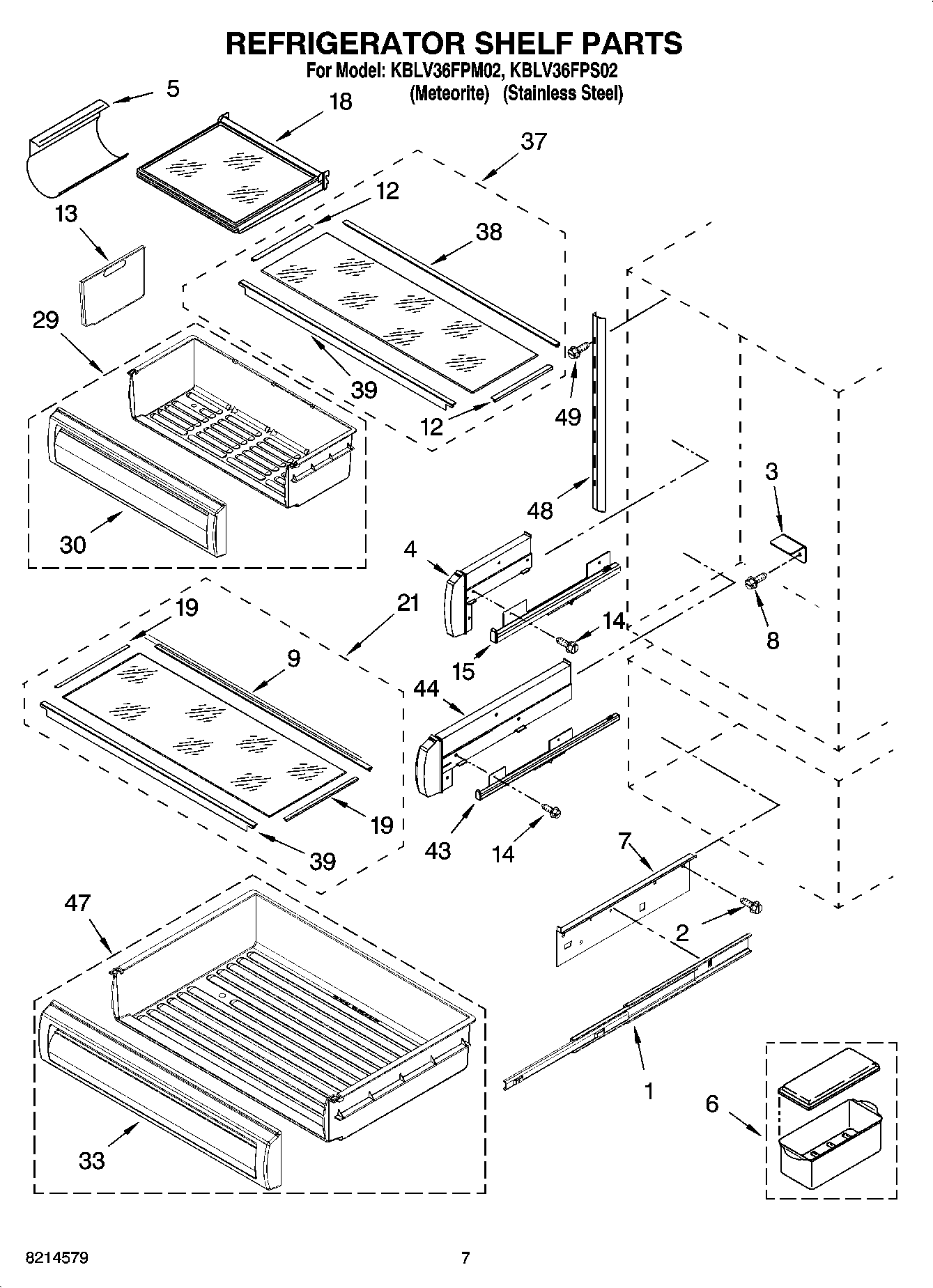

KBLV36FPS02 05 – REFRIGERATOR SHELF PARTSadmin2025-04-26T09:34:17+00:00KBLV36FPS02 05 – REFRIGERATOR SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Slide, Freezer Basket (Left Side) |
| 1 | Slide, Freezer Basket (Right Side) |
| 3 | Support, Crisper Cover |
| 4 | Spacer, Crisper (Left Side) |
| 4 | Spacer, Crisper (Right Side) |
| 5 | W10777924 Whirlpool Refrigerator Wine Rack |
| 6 | Egg Bin Assembly |
| 7 | Bracket, Freezer Basket (Right Side) |
| 7 | Bracket, Freezer Basket (Left Side) |
| 8 | WP8533928 Whirlpool Refrigerator Screw |
| 9 | Trim-Glass, Rear |
| 12 | Trim-Glass, Side |
| 13 | Divider, Crisper Pan |
| 14 | WP3400886 Whirlpool Refrigerator Screw |
| 15 | 2302952 Whirlpool Refrigerator Slide |
| 15 | 2302953 Whirlpool Refrigerator Slide |
| 18 | Shelf (4) |
| 19 | Trim-Glass, Side |
| 21 | Deli Shelf Assembly |
| 29 | WP2256375 Whirlpool Refrigerator Crisper Pan |
| 30 | 2256374 Whirlpool Front Pan |
| 33 | 2257548 Whirlpool Refrigerator Front Pan |
| 37 | Crisper Shelf Assembly |
| 38 | Trim-Glass, Rear |
| 39 | Trim-Glass, Front (Not Servicable) |
| 43 | Slide, Deli (Right Side) |
| 43 | Slide, Deli (Left Side) |
| 44 | Spacer, Deli (Left Side) |
| 44 | Spacer, Deli (Right Side) |
| 47 | Deli Pan Assembly (Includes 33) |
| 48 | Ladder, Shelf (4) |
| 49 | 2006475 Whirlpool Refrigerator Screw |
