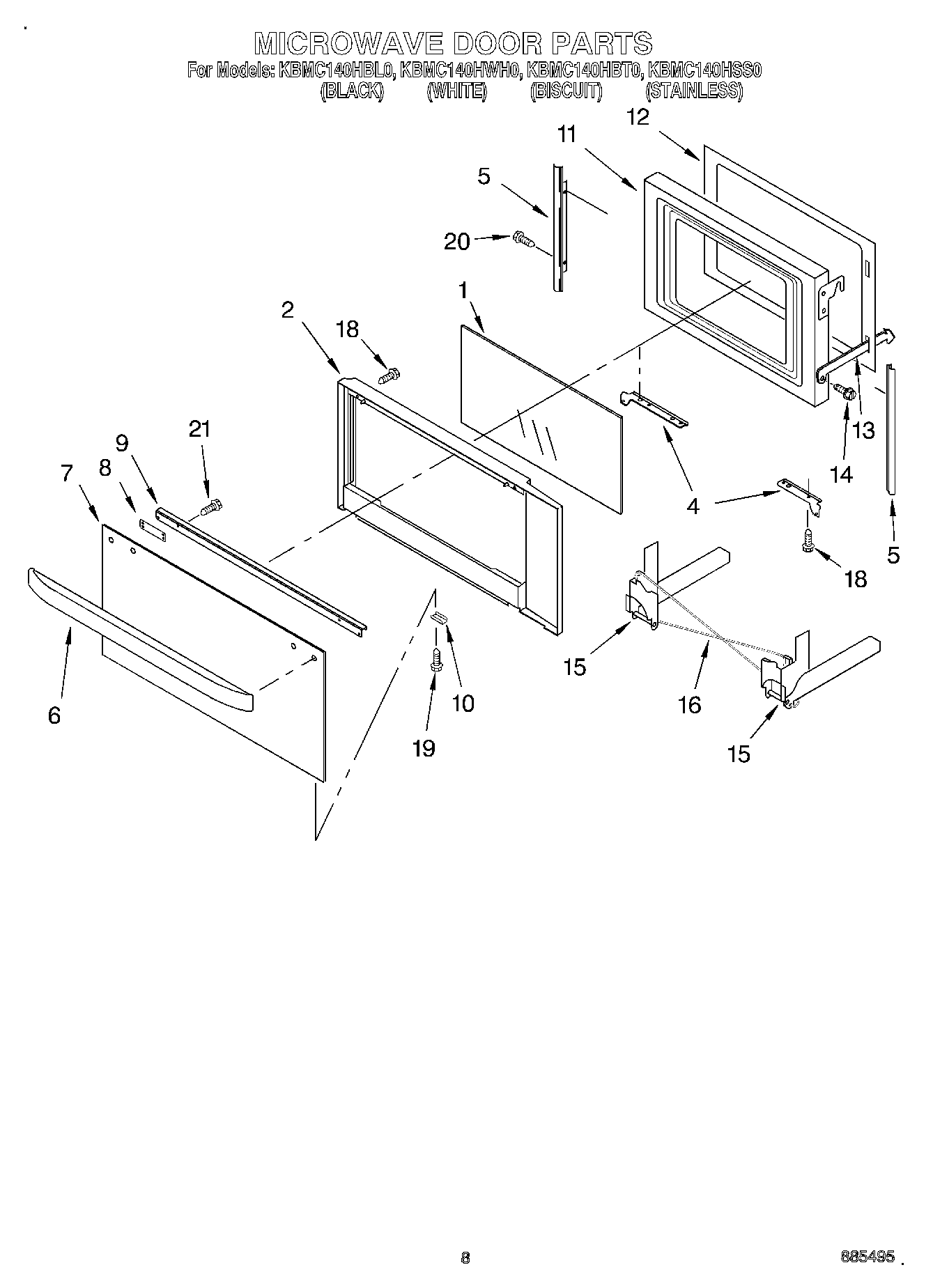

KBMC140HBL0 06 – MICROWAVE DOOR, OPTIONALadmin2025-04-26T09:33:01+00:00KBMC140HBL0 06 – MICROWAVE DOOR, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Glass, Middle |
| 2 | WP8303556 Whirlpool Microwave Door Frame |
| 4 | Bracket, Mounting (Right Side) |
| 4 | Bracket, Mounting (Left Side) |
| 5 | Filler, Side (Left Side) |
| 5 | Filler, Side |
| 6 | Handle, Door (White) |
| 6 | Handle, Door (Black) |
| 6 | Handle, Door (Stainless) |
| 6 | Handle, Door (Biscuit) |
| 7 | WP4452259 Whirlpool Door Glass |
| 7 | Glass, Outer (Black) |
| 7 | Glass, Outer (White) |
| 7 | Glass, Outer (Biscuit) |
| 8 | Spacer (Stainless) |
| 9 | Bracket, Handle |
| 10 | Clip, Retainer (Black Model) |
| 10 | RETAINER,GLASS CLIP (BISCUIT) |
| 10 | Clip, Retainer (White Model) |
| 10 | Retainer, Glass-Clip (Stainless Steel) |
| 11 | Plate, Door |
| 12 | Frame, Inner |
| 13 | Strap, Door |
| 14 | Screw |
| 15 | WP4375324 Whirlpool Microwave Door Hinge |
| 15 | WP4375323 Whirlpool Microwave Door Hinge |
| 16 | WP4452396 Whirlpool Microwave Spring |
| 16 | WP4451009 Whirlpool Microwave Spring |
| 18 | WP4449809 Whirlpool Screw |
| 19 | Screw |
| 20 | WP4450038 Whirlpool Screw |
| 21 | 261900 Whirlpool Microwave Spray |
| 21 | WPW10132940 Whirlpool Dishwasher Screw |
| 21 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 21 | 4450800 Whirlpool Oven Screw |
| 21 | 285006 Whirlpool Spray |
| 21 | 72032 Whirlpool Touch Up Paint Black |
| 21 | WP482338 Whirlpool Refrigerator Adhesive |
| 21 | WP4448950 Whirlpool Screw |
| 21 | Ground (M/W) |
| 21 | 4452400 Whirlpool Microwave Wire Harness |
| 21 | 350930 Whirlpool White Spray Paint |
| 21 | WP261869 Whirlpool Microwave Paint |
| 21 | 4450950 Whirlpool Oven Conduit |
| 21 | Screw |
| 21 | Harness, Main |
