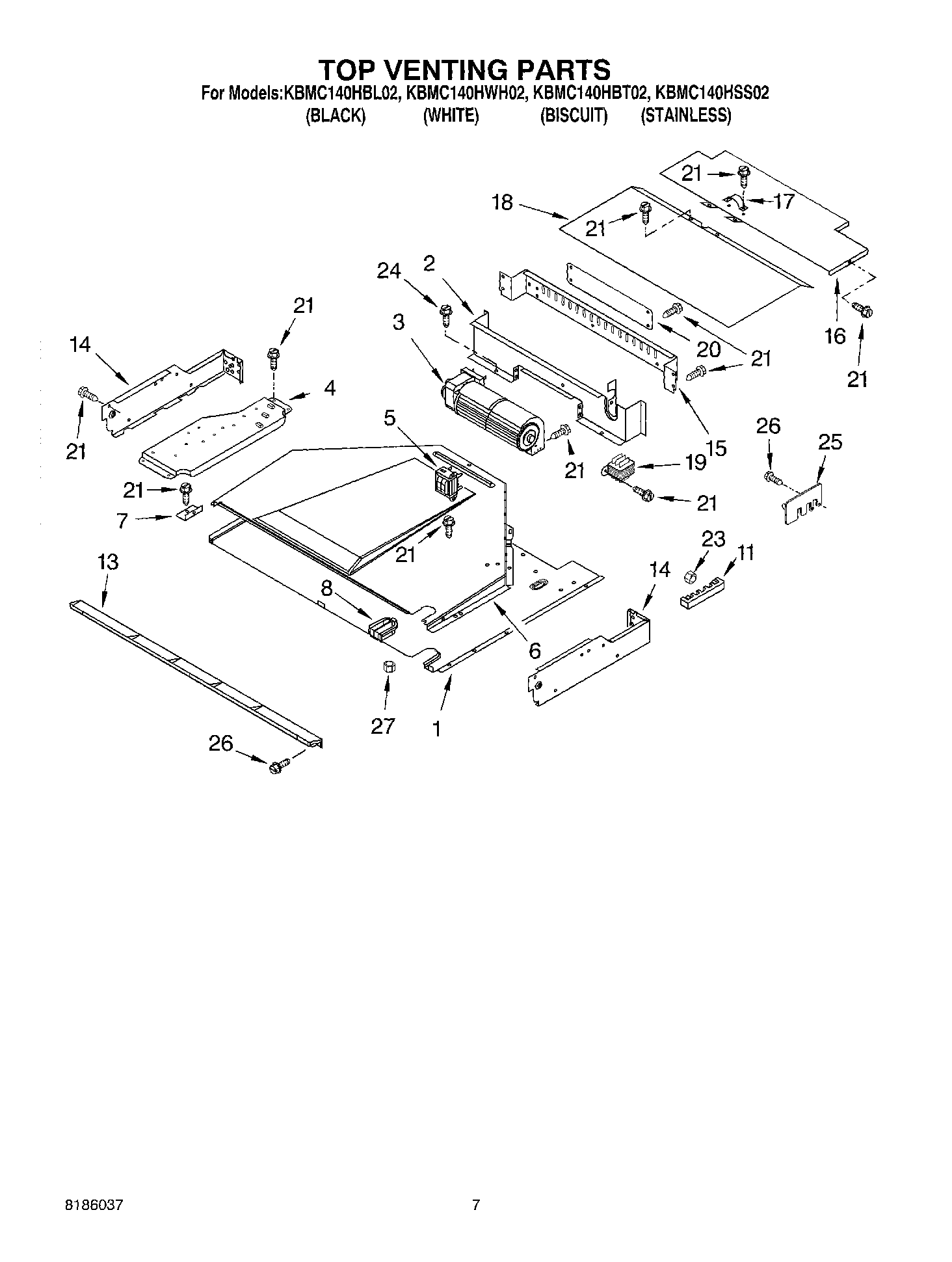

KBMC140HBL02 05 – TOP VENTING PARTS

Products

Position	Product
1	Cover, Top
2	Baffle, Blower
3	Blower
4	Plate, Mounting
5	WP9760588 Whirlpool Transformer
6	Exhaust Duct
7	Bracket, Duct
8	Grommet
11	WP8203546 Whirlpool Terminal Block
13	Vent-Cntrl Panel
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	4448664 Whirlpool Oven Mounting Bracket
18	WP4452367 Whirlpool Top Cover
19	Transformer, Control Panel
20	Plate, Cover
21	WP4449809 Whirlpool Screw
23	WP112432 Whirlpool Nut Assembly
24	489392 Whirlpool Refrigerator Screw
25	Suppressor
26	Screw
27	WP4450118 Whirlpool Nut
