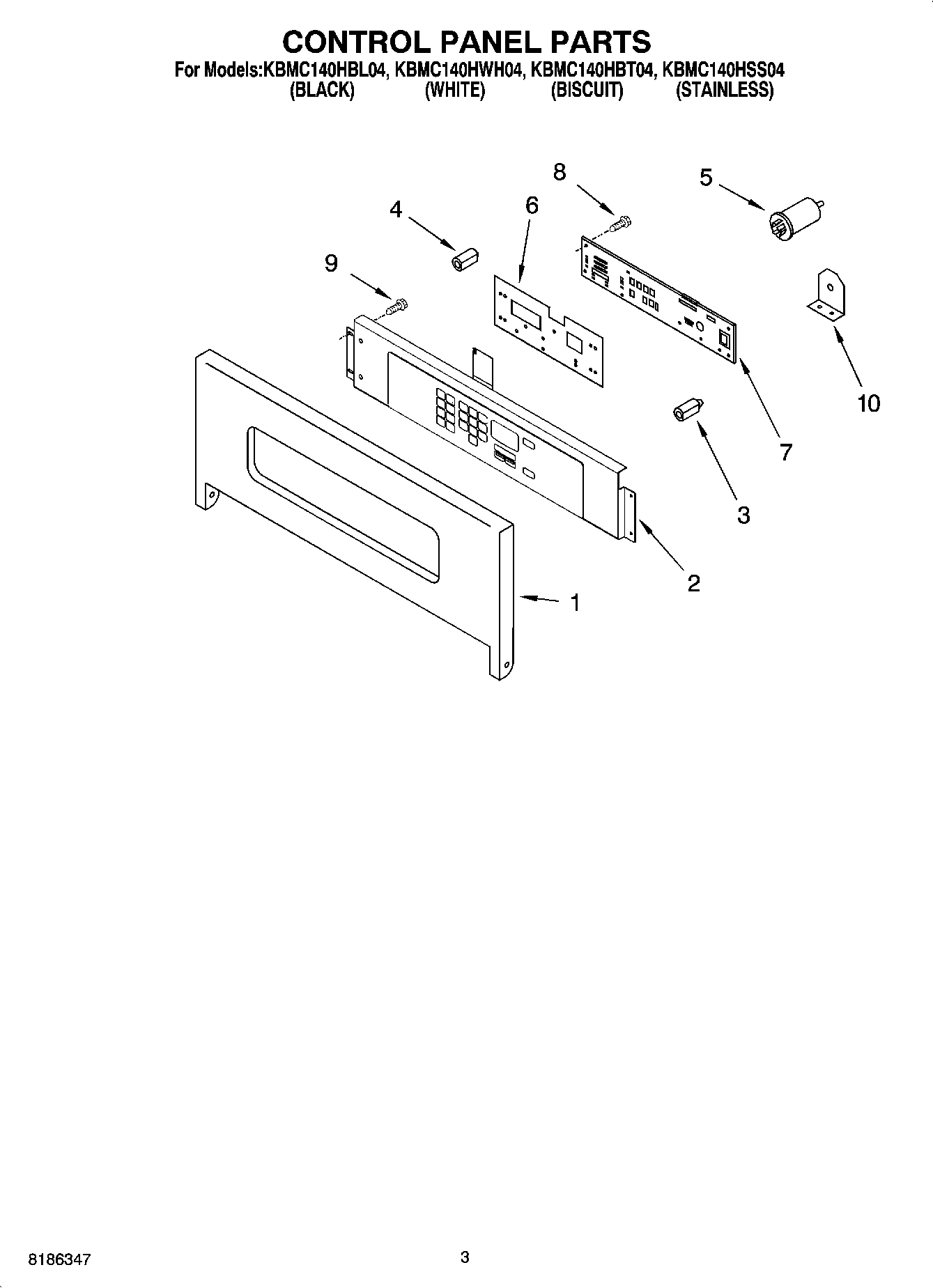

KBMC140HBL04 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Stainless)
1	Panel, Control (Black)
1	Panel, Control (White)
1	Panel, Control (Biscuit)
2	Switch, Membrane (Stainless)
2	Switch, Membrane (Biscuit)
2	Switch, Membrane (White)
2	Switch, Membrane (Black)
3	Insulation, Board
4	Insulation, Board Support
5	Filter
6	Insulator, Dialectric
7	Assy, Control
8	Screw
9	WP3400832 Whirlpool Screw
10	Bracket, Filter
