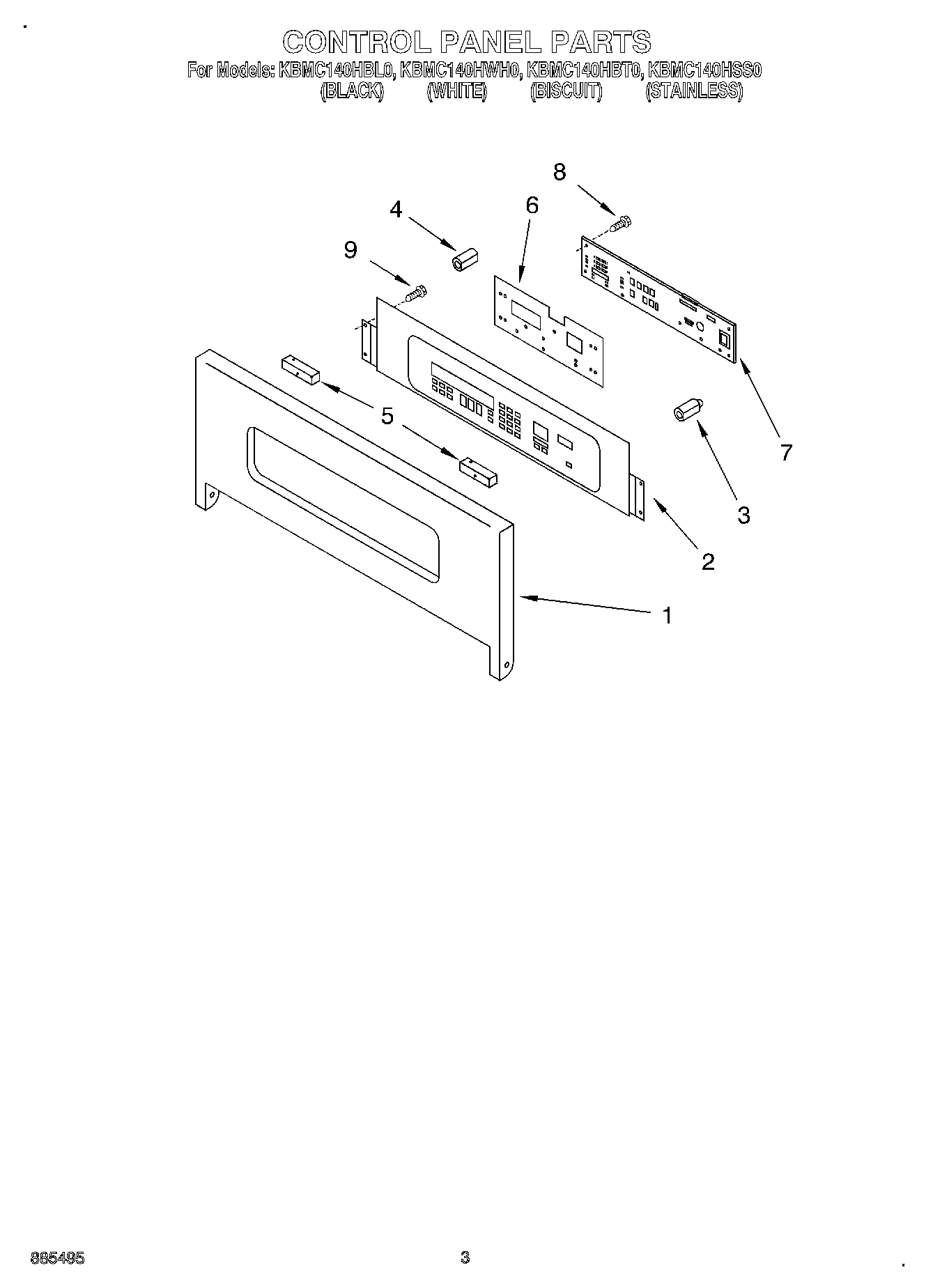

KBMC140HBT0 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (White)
1Panel, Control (Biscuit)
1Panel, Control (Black)
1Panel, Control (Stainless)
2Switch, Membrane (Black)
2Switch, Membrane (White)
2Switch, Membrane (Stainless)
2Switch, Membrane (Biscuit)
3Insulation, Board
4Insulation, Board Support
5Spacer, Foam
6Insulator, Dialectric
7Microcomputer
8Screw
9WP3400832 Whirlpool Screw
