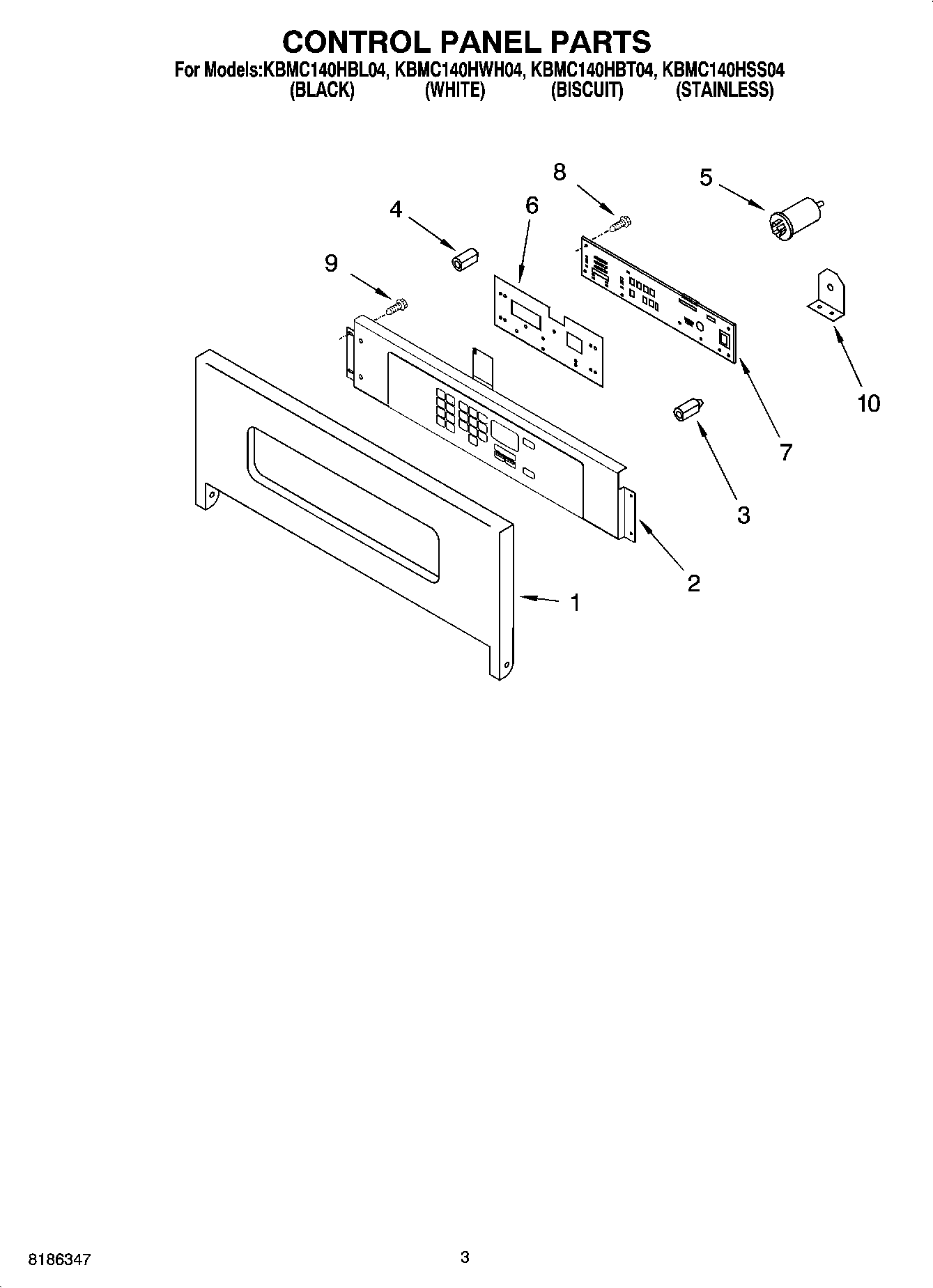

KBMC140HBT04 02 – CONTROL PANEL PARTSadmin2025-04-26T09:35:24+00:00KBMC140HBT04 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Panel, Control (Stainless) |
| 1 | Panel, Control (Black) |
| 1 | Panel, Control (White) |
| 1 | Panel, Control (Biscuit) |
| 2 | Switch, Membrane (Stainless) |
| 2 | Switch, Membrane (Biscuit) |
| 2 | Switch, Membrane (White) |
| 2 | Switch, Membrane (Black) |
| 3 | Insulation, Board |
| 4 | Insulation, Board Support |
| 5 | Filter |
| 6 | Insulator, Dialectric |
| 7 | Assy, Control |
| 8 | Screw |
| 9 | WP3400832 Whirlpool Screw |
| 10 | Bracket, Filter |
