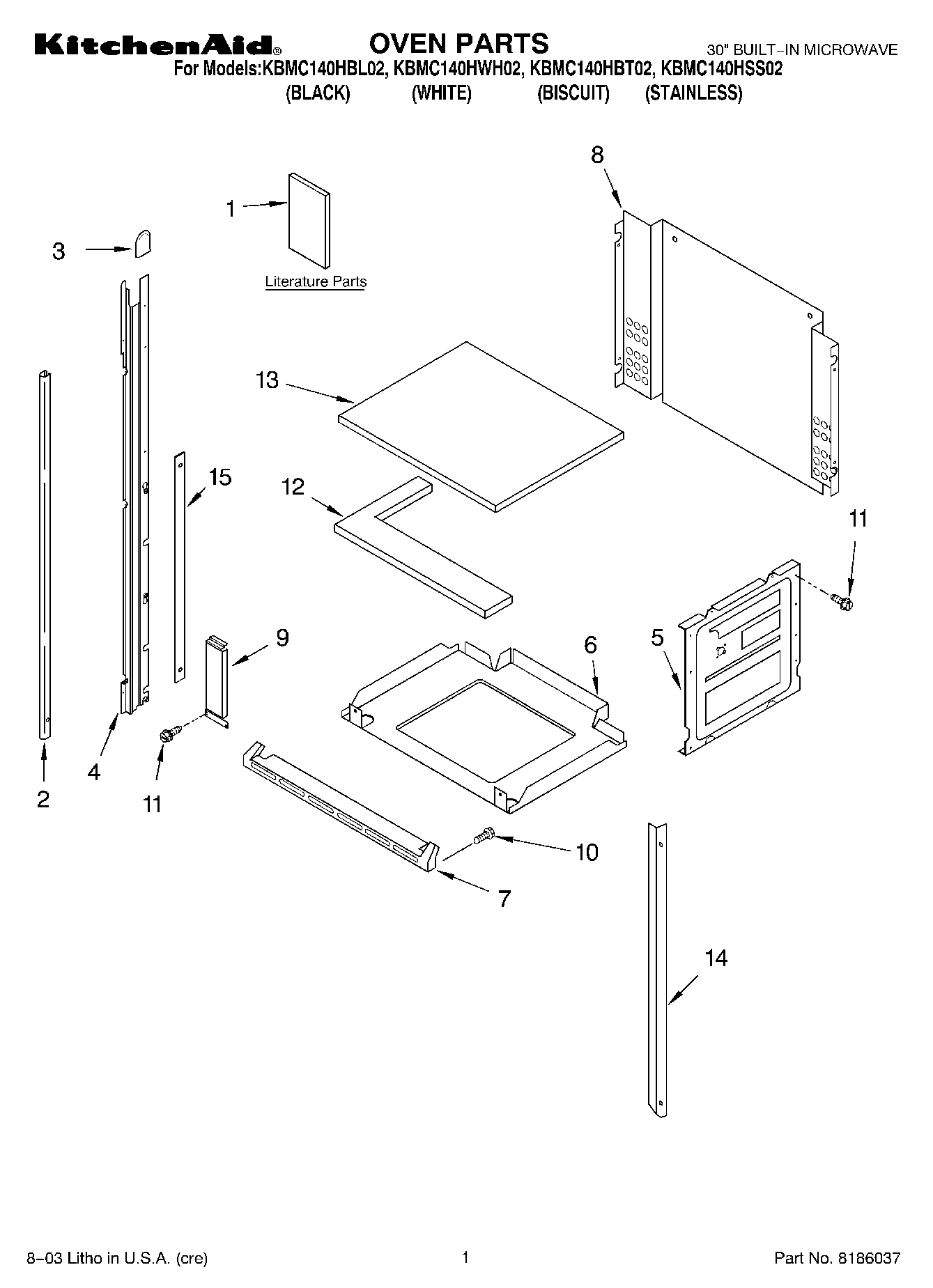

KBMC140HSS02 01 – OVEN PARTSadmin2025-04-26T09:32:17+00:00KBMC140HSS02 01 – OVEN PARTS
Products
| Position | Product |
|---|
| 1 | Safer Cooking Tips |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Tech Sheet) |
| 1 | Literature Parts (Easy Set Guide) |
| 1 | Literature Parts (Guide, Easy Use (Microwave)) |
| 1 | Literature Parts (Cooking Guide (Lable)) |
| 2 | Trim, Side (LH Black) |
| 2 | Trim, Side (RH Black) |
| 2 | Trim, Side (RH White) |
| 2 | Trim, Side (LH White) |
| 2 | Trim, Side (RH Biscuit) |
| 2 | Trim, Side (LH Biscuit) |
| 2 | Trim, Side (LH Stainless) |
| 2 | Trim, Side (RH Stainless) |
| 3 | Cap, Spacer |
| 4 | Rail, Side (Left Side) |
| 4 | Rail, Side (Right Side) |
| 5 | Side, Combo |
| 6 | Base, Chassis |
| 7 | Trim, Bottom (White) |
| 7 | Trim, Bottom (Stainless) |
| 7 | Trim, Bottom (Black) |
| 7 | Trim, Bottom (Biscuit) |
| 8 | Chassis, Back |
| 9 | Extension Filler |
| 10 | WP3400832 Whirlpool Screw |
| 11 | WP4449809 Whirlpool Screw |
| 12 | WPL 4452492 |
| 13 | WPL 4452491 |
| 14 | Bracket |
| 15 | Spacer |
