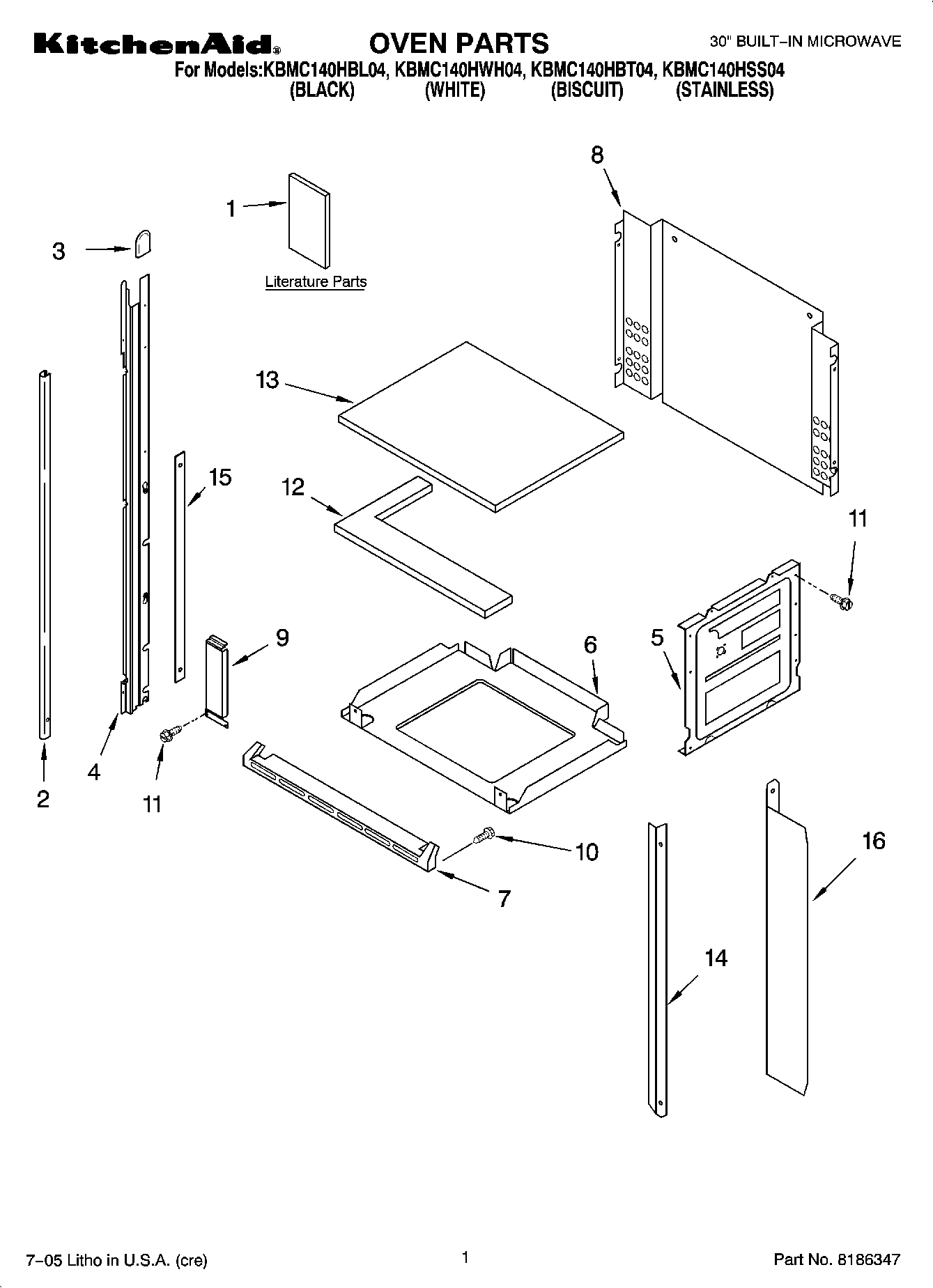

KBMC140HSS04 01 – OVEN PARTS

KBMC140HSS04 01 – OVEN PARTS

Written by

in

KBMC140HSS04 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide
1Safe Cooking Tips (French)
1Easy Set Guide
1Safe Cooking Tips
1Guide-Easy Use M/W
1Installation Instructions
1Tech Sheet
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (LH White)
2Trim, Side (RH White)
2Trim, Side (LH Black)
2Trim, Side (RH Black)
2Trim, Side (LH Stainless)
2Trim, Side (RH Stainless)
3Cap, Spacer
4Rail, Side (Left Side)
4Rail, Side (Right Side)
5Side, Combo
6Base, Chassis
7Trim, Bottom (Biscuit)
7Trim, Bottom (White)
7Trim, Bottom (Black)
7Trim, Bottom (Stainless)
8Chassis, Back
9Extension Filler
10WP3400832 Whirlpool Screw
11WP4449809 Whirlpool Screw
12WPL 4452492
13WPL 4452491
14Bracket
15Spacer
16Bracket
