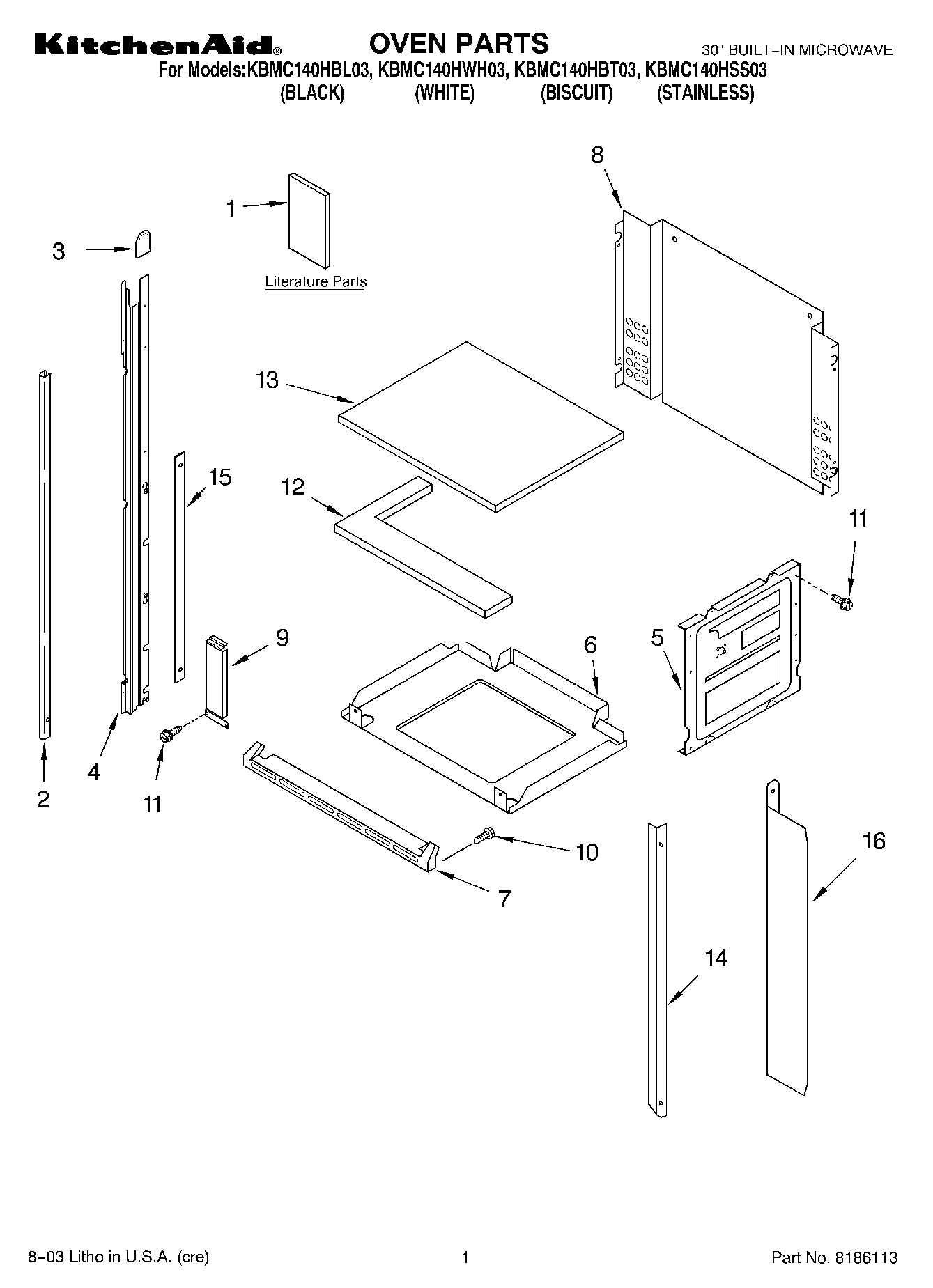

KBMC140HWH03 01 – OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide)
1Literature Parts (Guide, Easy Use (Microwave))
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Tech Sheet)
2Trim, Side (RH White)
2Trim, Side (LH White)
2Trim, Side (LH Black)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Black)
2Trim, Side (LH Stainless)
2Trim, Side (RH Stainless)
3Cap, Spacer
4Rail, Side (Right Side)
4Rail, Side (Left Side)
5Side, Combo
6Base, Chassis
7Trim, Bottom (Biscuit)
7Trim, Bottom (White)
7Trim, Bottom (Black)
7Trim, Bottom (Stainless)
8Chassis, Back
9Extension Filler
10WP3400832 Whirlpool Screw
11WP4449809 Whirlpool Screw
12WPL 4452492
13WPL 4452491
14Bracket
15Spacer
16Bracket
