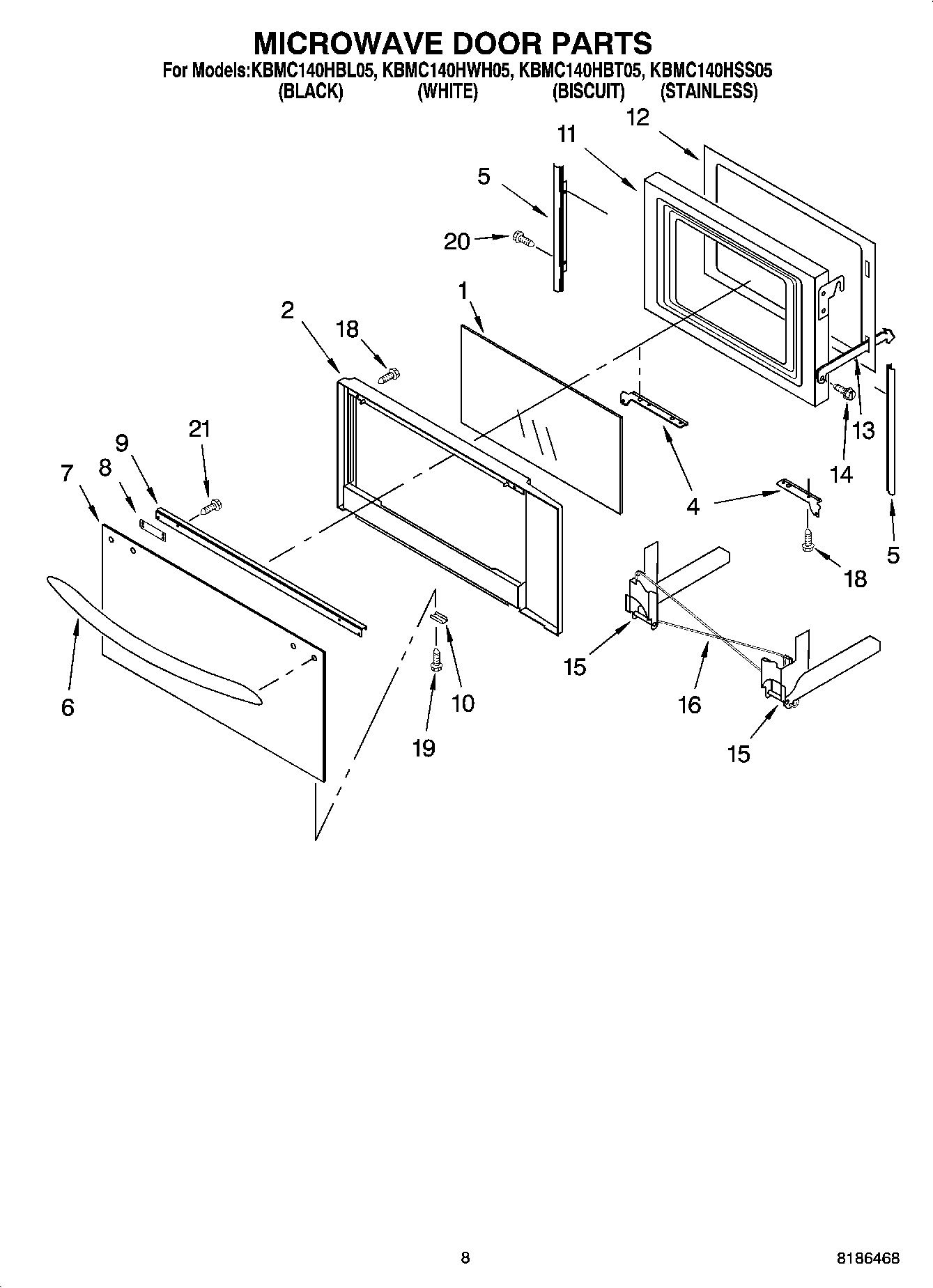

KBMC140HWH05 06 – MICROWAVE DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Harness, Main
	4450950 Whirlpool Oven Conduit
	WP261869 Whirlpool Microwave Paint
	WPL ARI79152A1
	8303838 Whirlpool Oven Wire Harness
	4452400 Whirlpool Microwave Wire Harness
	Ground (M/W)
	WP4448950 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	F
	4450800 Whirlpool Oven Screw
	285006 Whirlpool Spray
	261900 Whirlpool Microwave Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
1	Glass, Middle
2	WP8303556 Whirlpool Microwave Door Frame
4	Bracket, Mounting (Left Side)
4	Bracket, Mounting (Right Side)
5	Filler, Side
5	Filler, Side (Left Side)
6	Handle, Door (Stainless)
6	Handle, Door (Black)
6	Handle, Door (White)
6	Handle, Door (Biscuit)
7	Glass, Outer (Black)
7	Glass, Outer (White)
7	Glass, Outer (Biscuit)
7	WP4452259 Whirlpool Door Glass
8	Spacer (Stainless)
9	Bracket, Handle
10	Clip, Retainer (White Model)
10	RETAINER,GLASS CLIP (BISCUIT)
10	Retainer, Glass-Clip (Stainless Steel)
10	Clip, Retainer (Black Model)
11	Plate, Door
12	Frame, Inner
13	Strap, Door
14	Screw
15	WP4375323 Whirlpool Microwave Door Hinge
15	WP4375324 Whirlpool Microwave Door Hinge
16	WP4451009 Whirlpool Microwave Spring
16	WP4452396 Whirlpool Microwave Spring
18	WP4449809 Whirlpool Screw
19	Screw
20	WP4450038 Whirlpool Screw
21	Screw
21	WPW10132940 Whirlpool Dishwasher Screw
