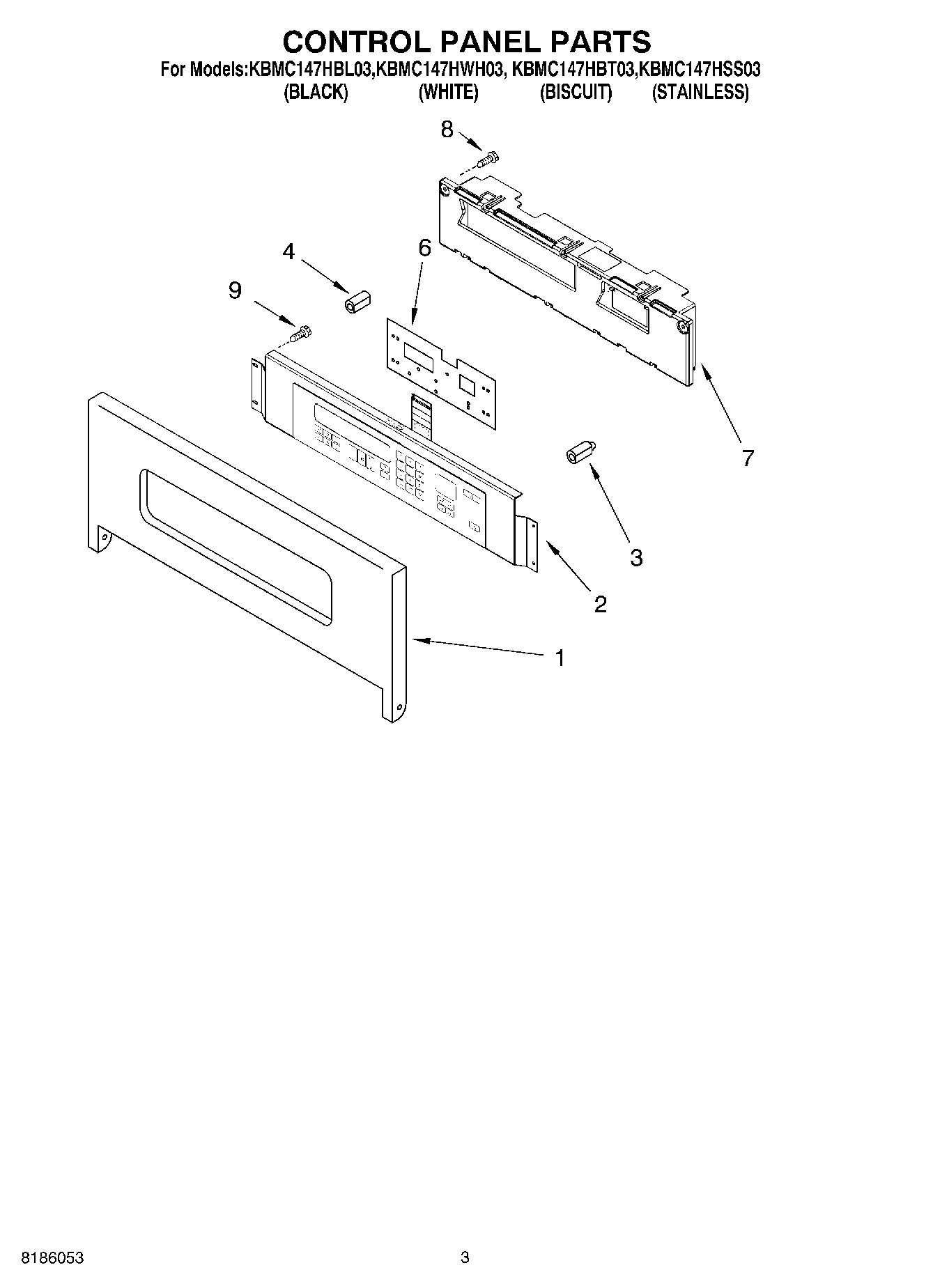

KBMC147HBL03 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
1	Panel, Control (Biscuit)
1	Panel, Control (White)
1	Panel, Control (Black)
2	Switch, Membrane (Black)
2	Switch, Membrane (Stainless)
2	Switch, Membrane (Biscuit)
2	Switch, Membrane (White)
3	Insulation, Board
4	Insulation, Board Support
6	Insulator, Dialectric
7	Assy, Control
8	Screw
9	WP3400832 Whirlpool Screw
