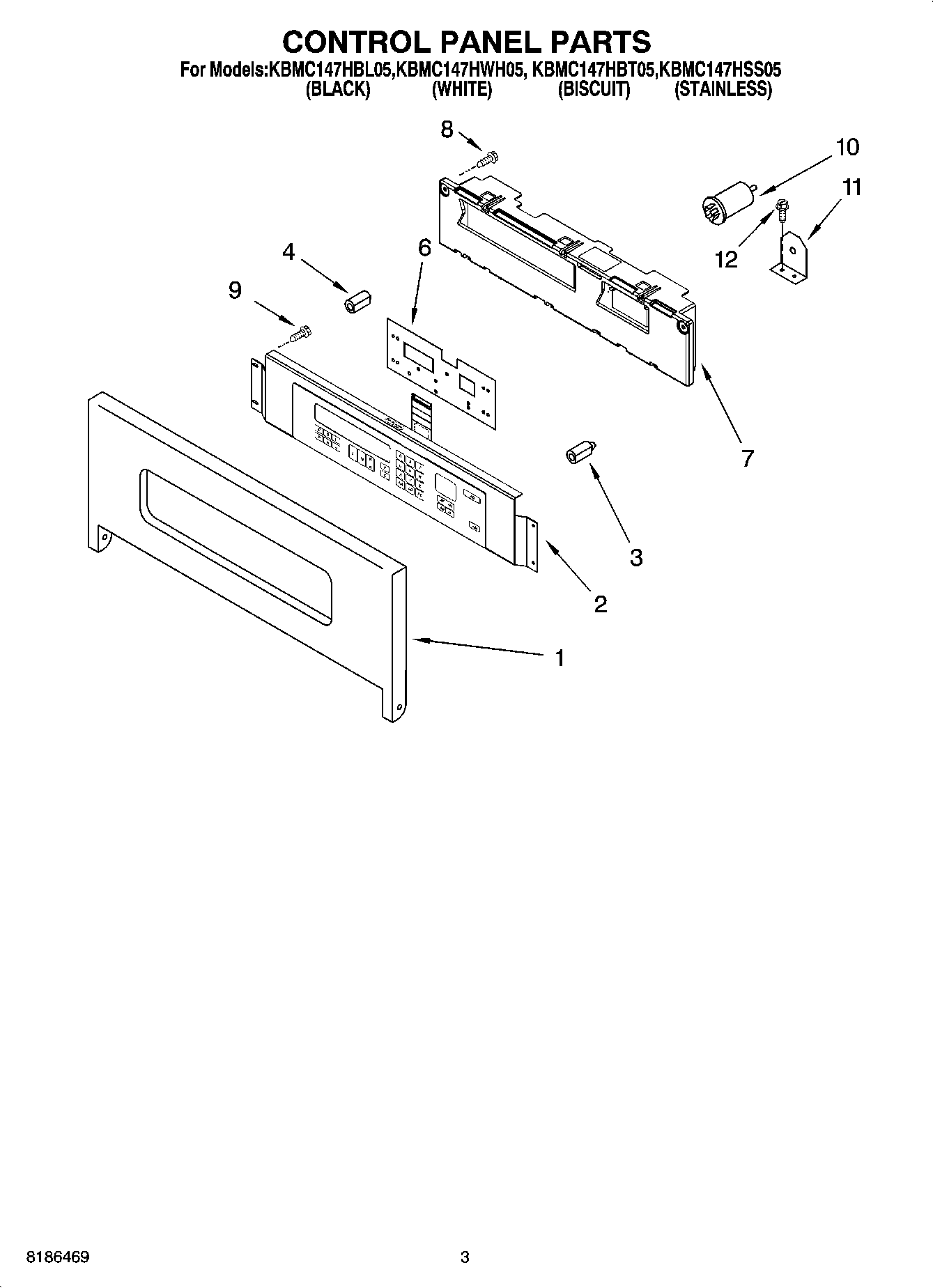

KBMC147HBT05 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Biscuit)
1Panel, Control (White)
1Panel, Control (Black)
1Panel, Control
2Switch, Membrane (Biscuit)
2Switch, Membrane (White)
2Switch, Membrane (Black)
2Switch, Membrane (Stainless)
3Insulation, Board
4Insulation, Board Support
6Insulator, Dialectric
7Assy, Control
8Screw
9WP3400832 Whirlpool Screw
10Filter
11Bracket, Filter
12WP4449809 Whirlpool Screw
