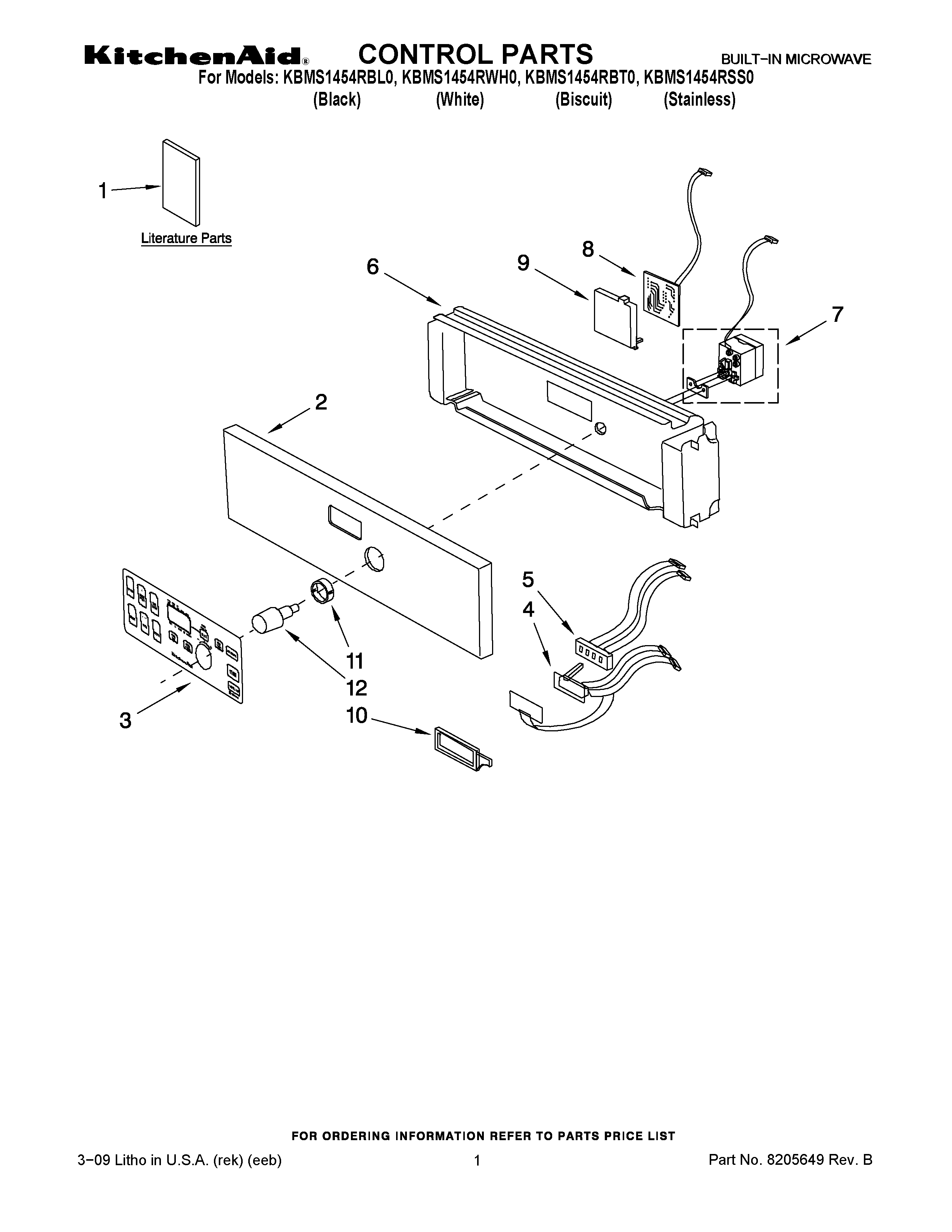

KBMS1454RBL0 01 – CONTROL PARTSadmin2025-04-26T09:33:40+00:00KBMS1454RBL0 01 – CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Guide-Quick Reference |
| 1 | Tech Sheet |
| 1 | Cook Guide Label |
| 1 | Installation Instructions |
| 1 | Use & Care Guide |
| 2 | Panel, Control (Biscuit) |
| 2 | PANEL, CONTROL (BLACK ) |
| 2 | Panel, Control (Stainless) |
| 2 | Panel, Control (White) |
| 3 | Switch, Membrane (Biscuit) |
| 3 | Switch, Membrane (White) |
| 3 | Switch, Membrane (Black) |
| 4 | WPW10203481-includeCORE Whirlpool WPW10203481 Microwave Electronic Control Board |
| 5 | WPW10124269 Whirlpool Microwave Electronic Control Board |
| 6 | Support, Control Panel |
| 7 | Board, Selector |
| 8 | Board, Interface |
| 9 | W10884489 Whirlpool Microwave Support |
| 10 | 461967750153 Whirlpool Microwave Support |
| 11 | Ring, Knob (Black) |
| 11 | Ring, Knob (White) |
| 11 | Ring, Knob (Biscuit) |
| 12 | Knob (Black) |
| 12 | Knob (White) |
| 12 | Knob (Biscuit) |
