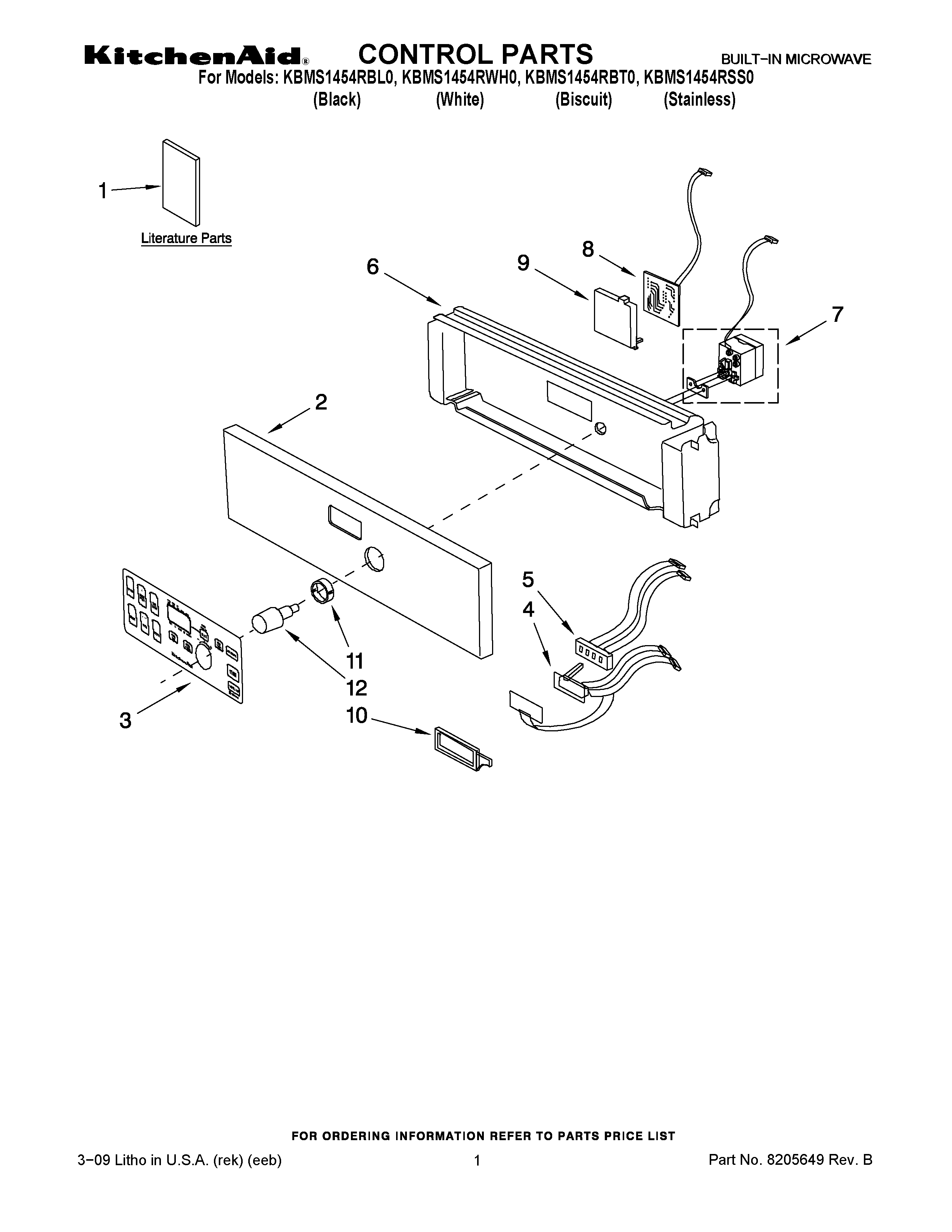

KBMS1454RSS0 01 – CONTROL PARTS

Products

Position	Product
1	Guide-Quick Reference
1	Tech Sheet
1	Cook Guide Label
1	Installation Instructions
1	Use & Care Guide
2	Panel, Control (Biscuit)
2	PANEL, CONTROL (BLACK )
2	Panel, Control (Stainless)
2	Panel, Control (White)
3	Switch, Membrane (Biscuit)
3	Switch, Membrane (White)
3	Switch, Membrane (Black)
4	WPW10203481-includeCORE Whirlpool WPW10203481 Microwave Electronic Control Board
5	WPW10124269 Whirlpool Microwave Electronic Control Board
6	Support, Control Panel
7	Board, Selector
8	Board, Interface
9	W10884489 Whirlpool Microwave Support
10	461967750153 Whirlpool Microwave Support
11	Ring, Knob (Black)
11	Ring, Knob (White)
11	Ring, Knob (Biscuit)
12	Knob (Black)
12	Knob (White)
12	Knob (Biscuit)
