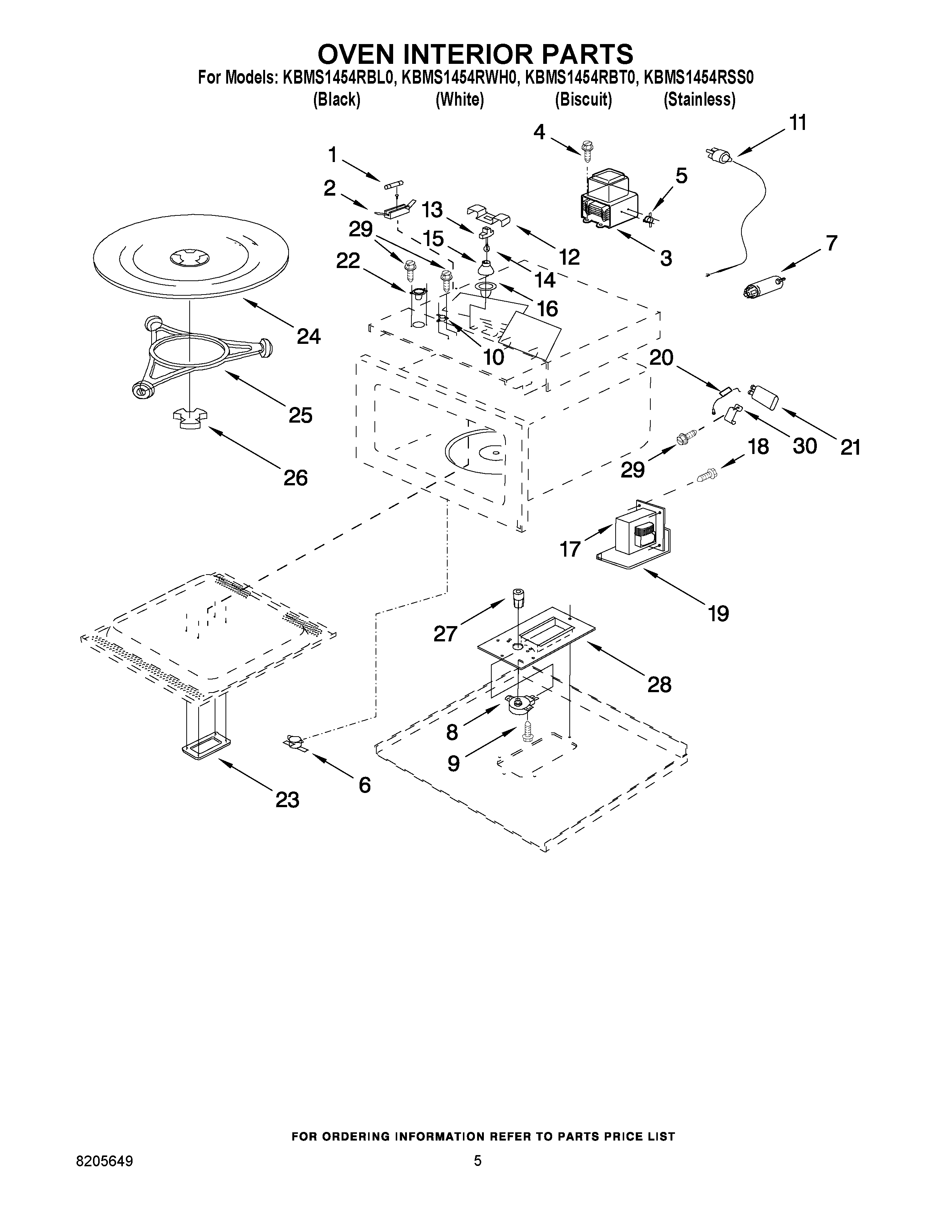

KBMS1454RSS0 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	WP4375321 Whirlpool Microwave Fuse
2	8205670 Whirlpool Microwave Fuse Block
3	W10245183 Whirlpool Microwave Magnetron
4	SCREW
5	Thermostat
6	W10852735 Whirlpool Microwave Thermostat
7	W10549523 Whirlpool Microwave Filter
8	W10911403 Whirlpool Microwave Turn Motor
9	8205656 Whirlpool Microwave Screw
10	W11676348 Whirlpool Thermostat Fix
11	8205660 Whirlpool Microwave Power Cord
12	8205679 Whirlpool Spring Assembly
13	WPW10490593 Whirlpool Microwave Lamp Housing
14	WPW10440740 Whirlpool Microwave Light Bulb
15	423107022541 Whirlpool Microwave Reflector
16	W11193483 Whirlpool Microwave Lamp Lens
18	8205672 Whirlpool Microwave Screw
19	Reducer, Humidity
20	WPW10687786 Whirlpool Microwave Diode
21	CAPACTR-MG
22	W10871220 Whirlpool Microwave Sensor
23	W11087199 Whirlpool Waveguide Cover
24	W11373838 Whirlpool Glass Tray
25	RING-TURN
26	WPW10776938 Whirlpool Microwave Turn Shaft
27	W11126044 Whirlpool Drive Shaft
28	461967008471 Whirlpool Microwave Motor Cover
29	461967825321 Whirlpool Microwave Screw
30	Holder, Capacitor
