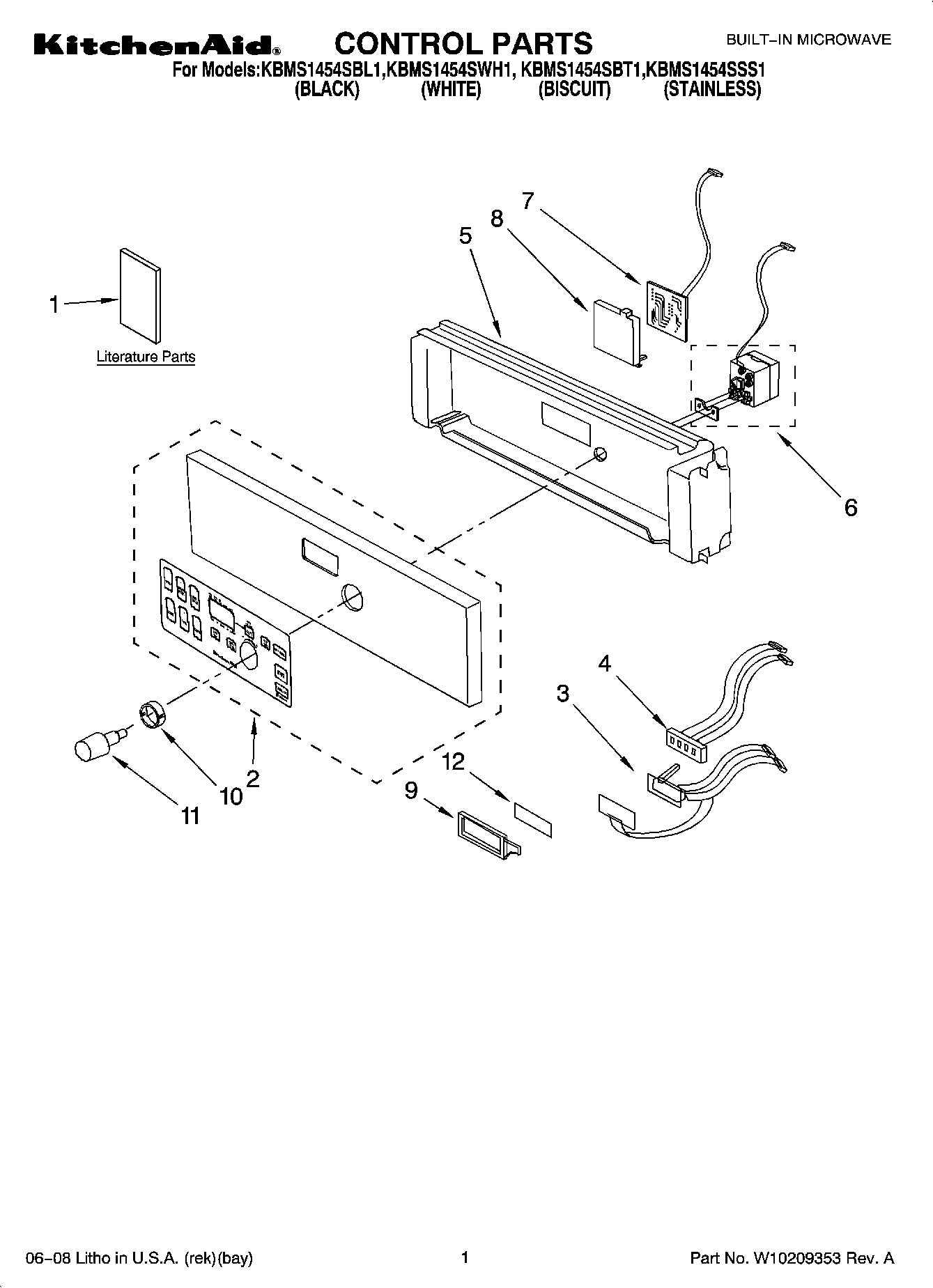

KBMS1454SBL1 01 – CONTROL PARTS

Products

PositionProduct
1Guide-Quick Reference
1Tech Sheet
1Installation Instructions
1Cook Guide Label
1Use & Care Guide
2Panel, Control (Stainless)
2Panel, Control (White)
2Panel, Control (Black)
2Panel, Control (Biscuit)
3WPW10203481-includeCORE Whirlpool WPW10203481 Microwave Electronic Control Board
4WPW10124269 Whirlpool Microwave Electronic Control Board
5Support, Control Panel
6Board, Selector
7Board, Interface
8W10884489 Whirlpool Microwave Support
9461967750153 Whirlpool Microwave Support
10461960204731 Whirlpool Microwave Ring
11Knob
12Window (Display Filter)
