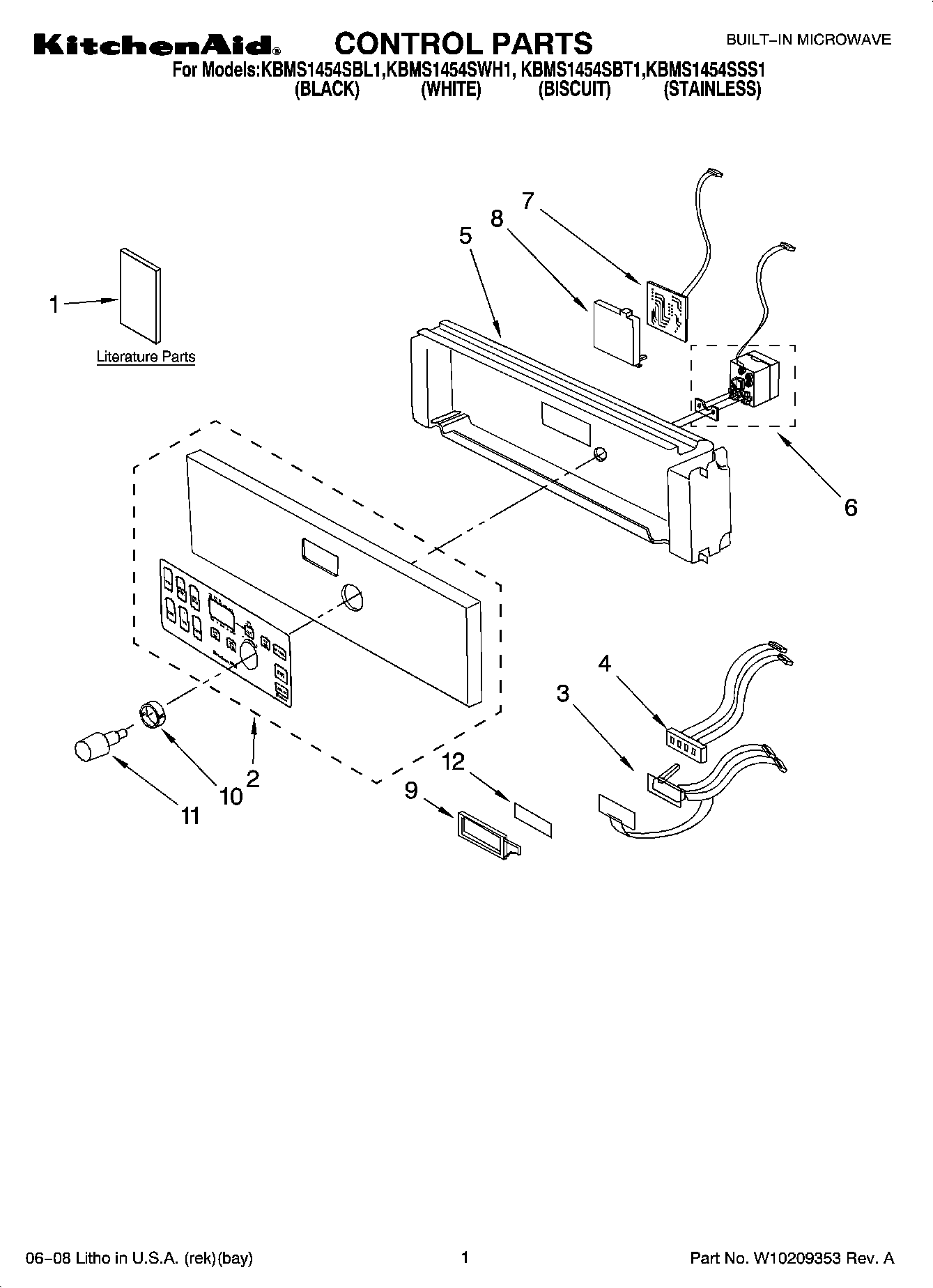

KBMS1454SBT1 01 – CONTROL PARTS

Products

Position	Product
1	Guide-Quick Reference
1	Tech Sheet
1	Installation Instructions
1	Cook Guide Label
1	Use & Care Guide
2	Panel, Control (Stainless)
2	Panel, Control (White)
2	Panel, Control (Black)
2	Panel, Control (Biscuit)
3	WPW10203481-includeCORE Whirlpool WPW10203481 Microwave Electronic Control Board
4	WPW10124269 Whirlpool Microwave Electronic Control Board
5	Support, Control Panel
6	Board, Selector
7	Board, Interface
8	W10884489 Whirlpool Microwave Support
9	461967750153 Whirlpool Microwave Support
10	461960204731 Whirlpool Microwave Ring
11	Knob
12	Window (Display Filter)
