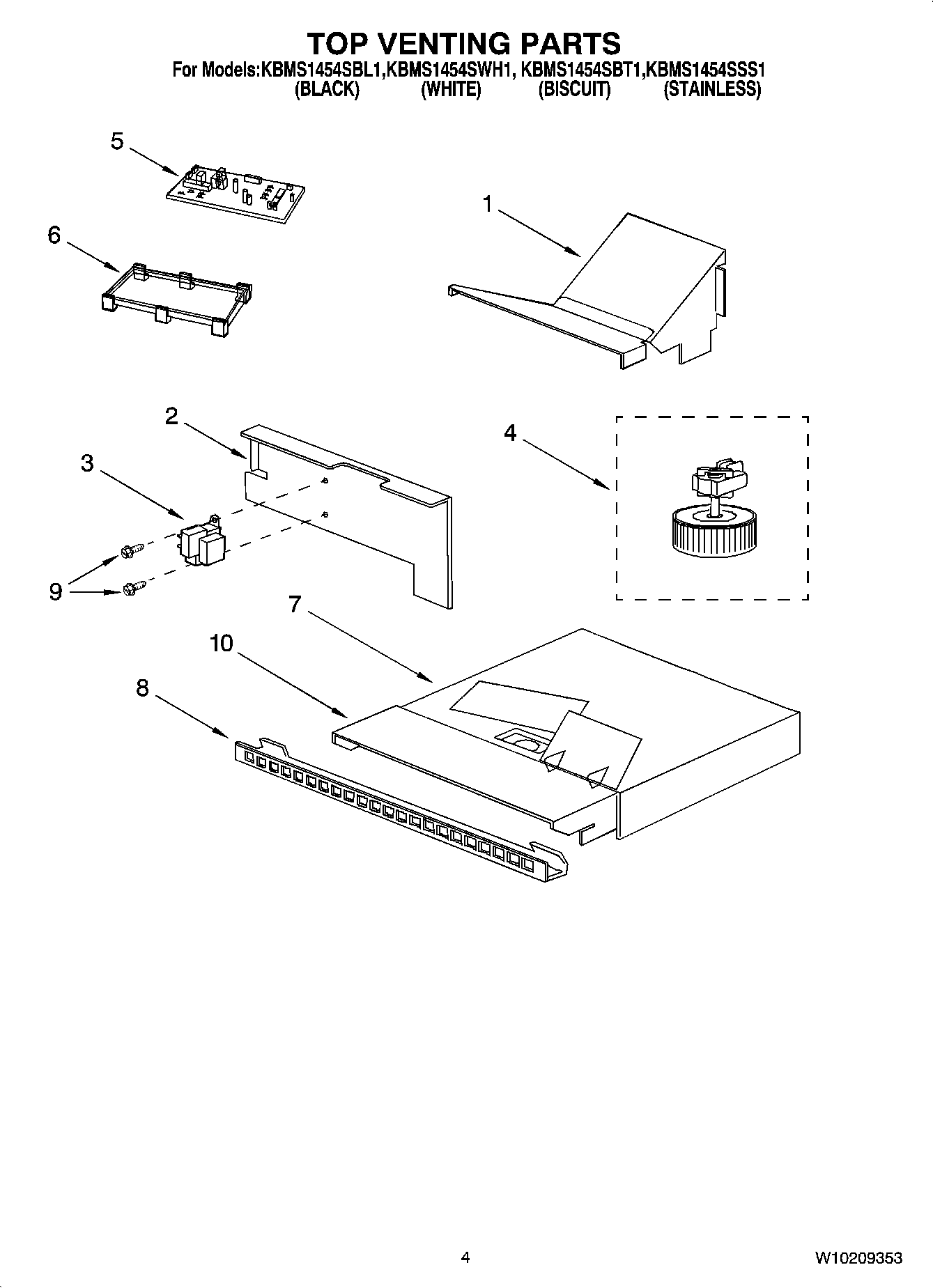

KBMS1454SBT1 04 – TOP VENTING PARTS

KBMS1454SBT1 04 – TOP VENTING PARTS

Written by

in

KBMS1454SBT1 04 – TOP VENTING PARTS

Products

PositionProduct
1Air Duct
2Air Guide
3W11238401 Whirlpool Microwave Transformer
4Blower Assembly
5Control, Electronic
6461967750752 Whirlpool Support Bracket
7Top Chassis
8461967749811 Whirlpool Microwave Vent Panel
9461967825321 Whirlpool Microwave Screw
10W10141634 Whirlpool Microwave Cover Plate
