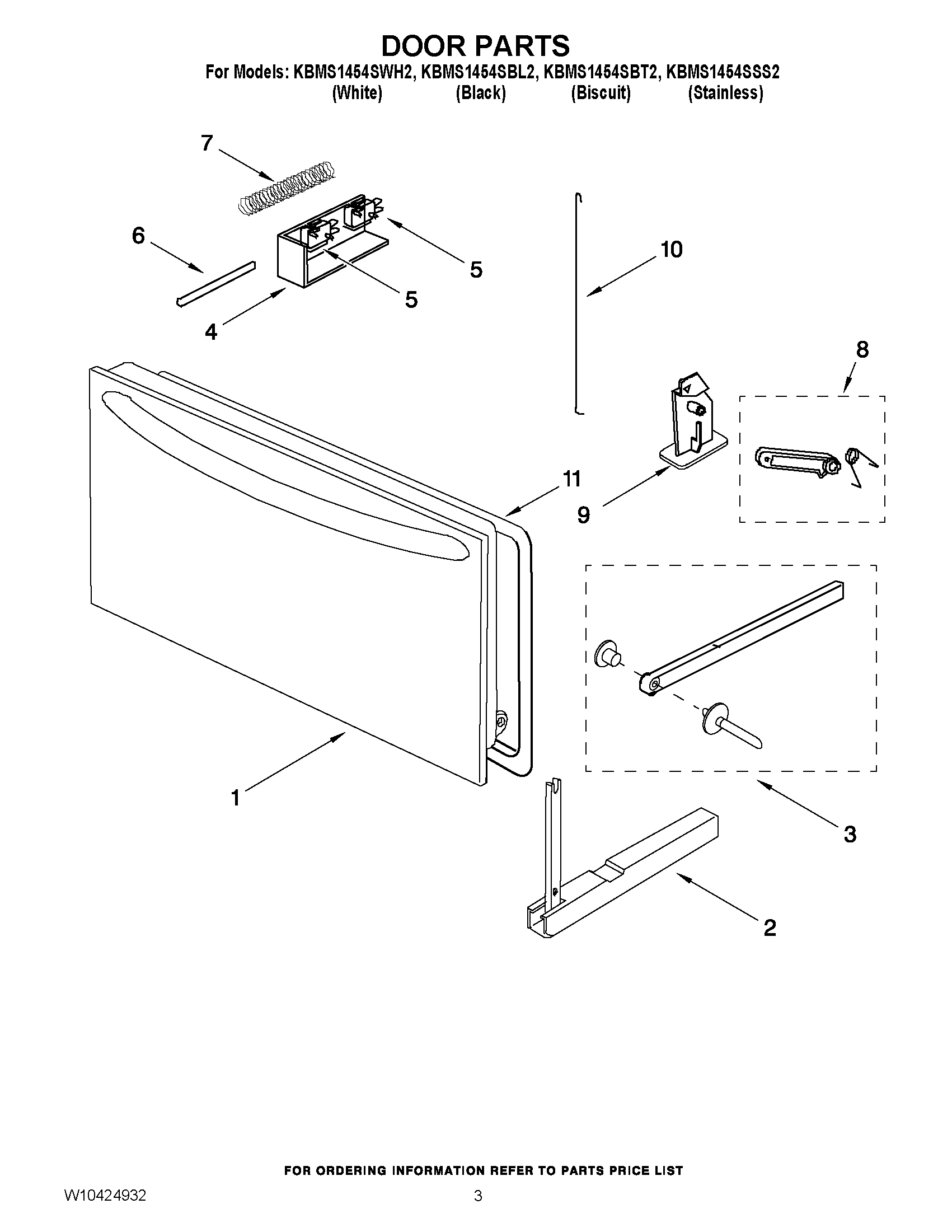

KBMS1454SBT2 03 – DOOR PARTS

Products

Position	Product
1	DOOR ASSEMBLY (STAINLESS)
1	Door Assembly (Biscuit)
1	Door Assembly (Black)
1	Door Assembly (White)
2	W11700293 Whirlpool Door Hinge
3	Sliding Arm Assy
4	WP8205683 Whirlpool Microwave Interlock
5	W10211972 Whirlpool Microwave Switch
6	Push-Rod (2)
7	W11715912 Whirlpool Spring Assembly
8	WPW10128850 Whirlpool Microwave Arm
9	W11684510 Whirlpool Support
10	W11700292 Whirlpool Spring
11	Gasket
