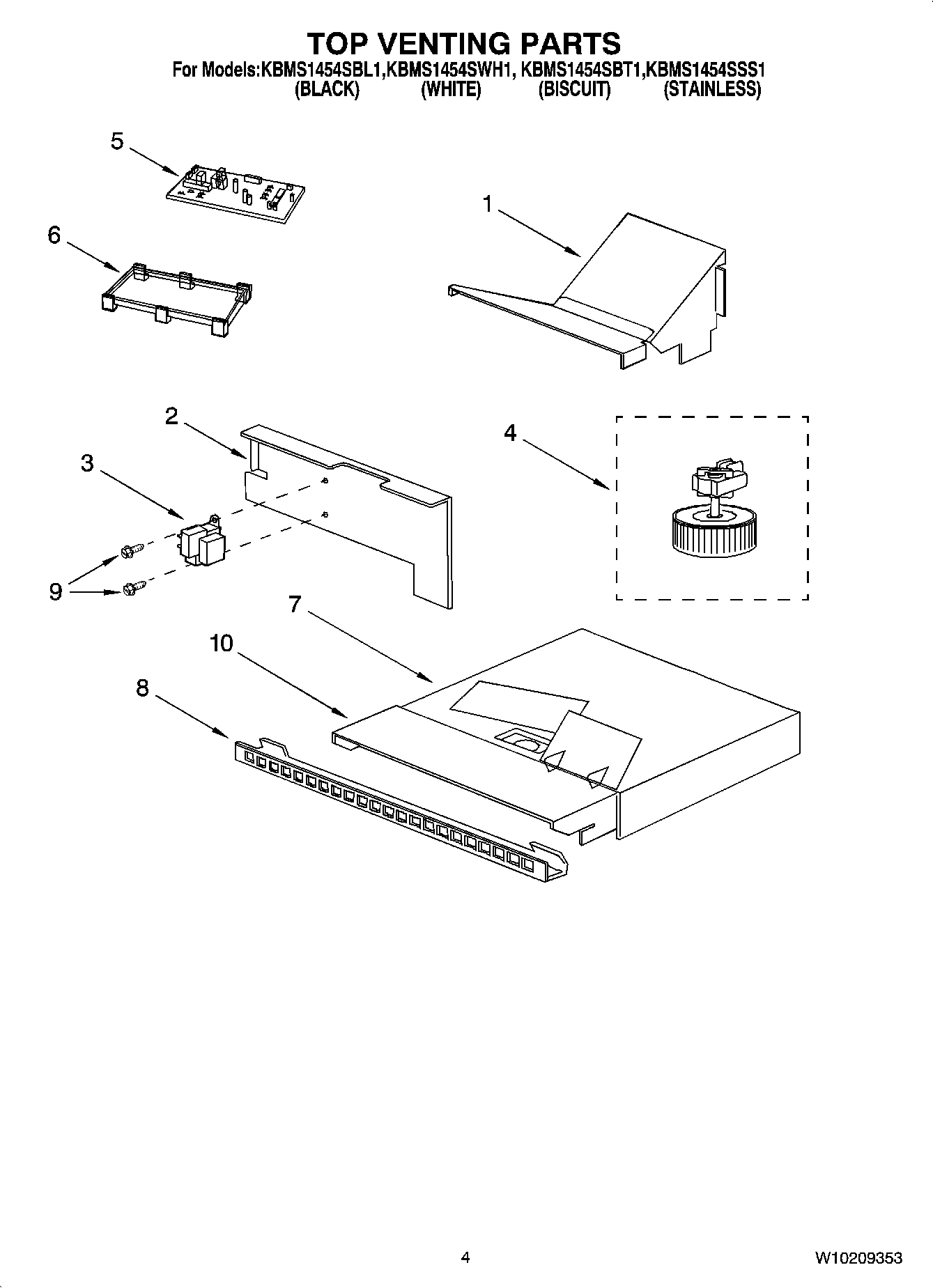

KBMS1454SSS1 04 – TOP VENTING PARTS

Written by

Products

Position	Product
1	Air Duct
2	Air Guide
3	W11238401 Whirlpool Microwave Transformer
4	Blower Assembly
5	Control, Electronic
6	461967750752 Whirlpool Support Bracket
7	Top Chassis
8	461967749811 Whirlpool Microwave Vent Panel
9	461967825321 Whirlpool Microwave Screw
10	W10141634 Whirlpool Microwave Cover Plate
