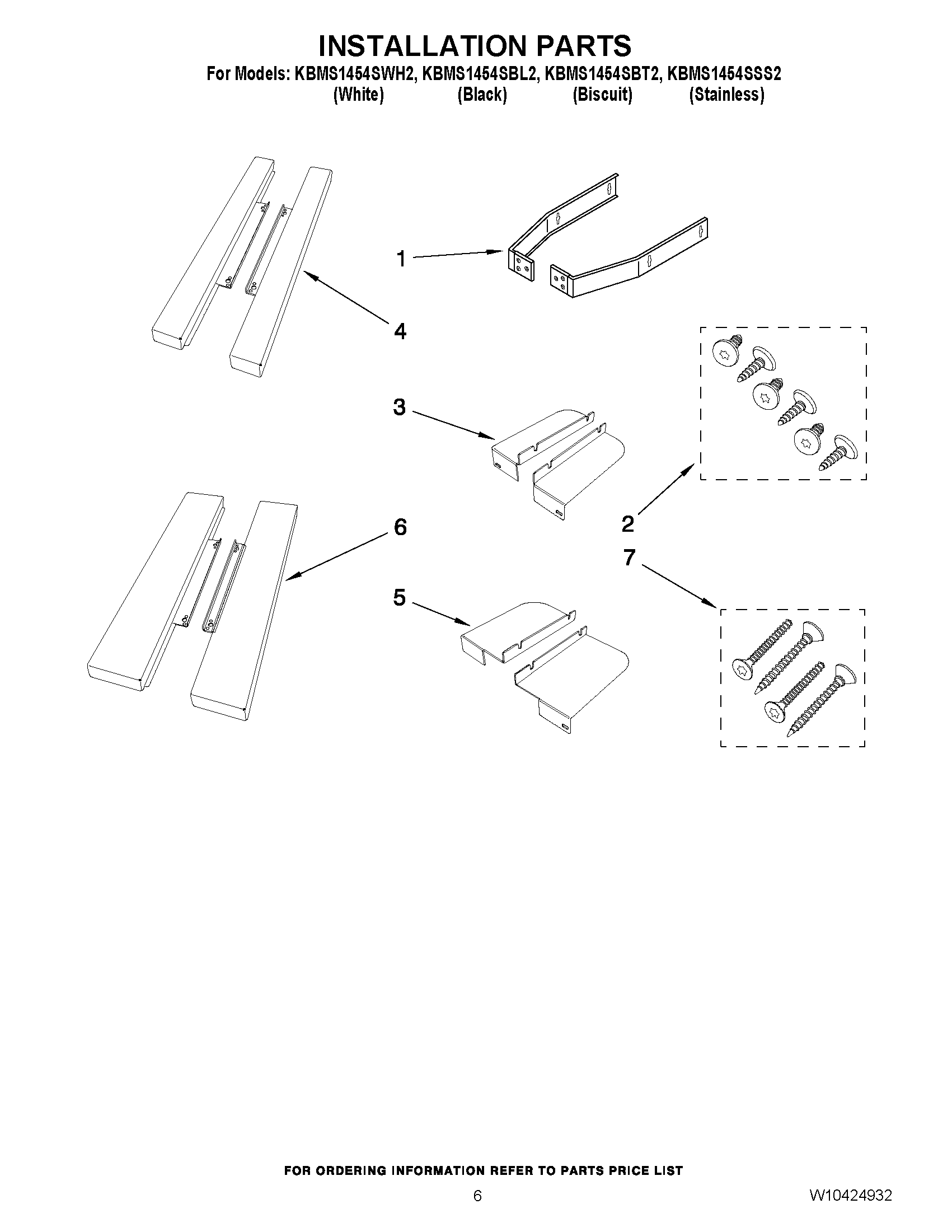

KBMS1454SSS2 06 – INSTALLATION PARTS

Products

Position	Product
NI	8205771 Whirlpool Microwave Screw
NI	Cable, UI Board Selector Board
NI	461968955994 Whirlpool Wire Harness
NI	8205749 Whirlpool Wire Harness
NI	8205750 Whirlpool Microwave Wire Harness
NI	Harness, Fan & Turntable Motor
NI	W10811146 Whirlpool Microwave Wire Harness
1	Bracket, Mounting
2	WP487353 Whirlpool Refrigerator Screw
3	W10775910 Whirlpool Microwave Mount Bracket
4	Narrow Trim (27`` White)
4	Narrow Trim (27`` Black)
4	Narrow Trim (27`` Biscuit)
4	W10426257 Whirlpool Trim
6	WPW10426258 Whirlpool Microwave Trim
6	Wide Trim (30`` Biscuit)
6	Wide Trim (30`` Black)
6	Wide Trim (30`` White)
7	4 pk. screws (White)
7	4 pk. screws (Black)
7	4 pk. screws (Biscuit)
